2016 The High-end Intelligent Parking Systems
- Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
-
2016 The Latest Two Post Parking Lifter for Sale
-
Hot Car Storage Lifts for Garage
-
Professional Security Smart Car Parking System
-
Hot New Product Classical Australia Roofing System Steel Roof Panel
-
2016 Cheap Classical American Standing Seam Roofing Sheets
-
Best Inverter Transformer 1500W Mobile Solar Energy Transformer
Product Details
| Type | Parking Lift | Height (mm) | 5500mm | |
| Width (mm) | 2400mm | Place of Origin | Shanghai, China | |
| Brand Name | Frontier | Model Number | PSH-3 | |
| Warranty | 1 Years |
Product Description
Specifications Of Intelligent parking systems

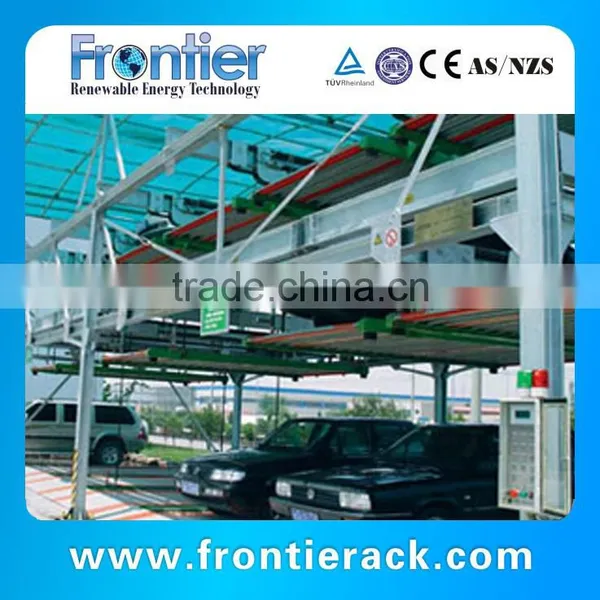

Operation principle
The top pallets can move up and down while the first, second pallets can move either left to right or up and down. There is a spare parking space on the ground whose position can be changed through the horizontal shift of the pallets. Then the top pallet right over the spare parking space can go down to the bottom floor. Cars on the bottom pallet can go in and out of the parking system directly.
Park and fetch the car
Adopts button, remote control and IC card, auto or manual operation mode. In normal condition, swipe the card to enter or take out car. When auto mode fails to work
Name | intelligent parking systems | |
Model | PSH-3 | |
Car size(L*W*H) | ≤5000×1850×1550 mm | |
Weight | Weight≤2000kg | |
Application | Basement of residential buildings | |
Size of | Width | 2400mm,or as your installation place |
Length | 5500mm,or as your installation place | |
Actuating device motor | Elevating | 2.2kw, with electromagnetic brake |
Horizontal-moving | 0.2kw,with electromagnetic brake | |
Working speed | Elevating | 5.6m/min |
Horizontal-moving | 8.0m/min | |
Ways of parking car | Reverse to parking, going forward for out | |
Hoist or lower the drive way | Elevating | Roller chain 16B |
Hori-moving | Roller chain 20B | |
Operation type | Ten keys or IC Card. | |
Working noise | ≤60dB better than Industrial standard 85dB | |
Function of running in place | Elevator error ≤10mm | |
Horizontal-moving ≤10mm | ||
Control power | 24V/DC | |
Voltage | AC 380V±10%, 3 phase 5-wire system or as customer local place | |
Service life | Normal maintenance, ≥40years | |
