Linyi WELLS Zinc Galvanized Steel Wire Rope/cable 1x19 6*19
US$ 750 - 800
/ Ton
5 Tons(Min. Order)
- QINGDAO
- T/T
You May Like
-
WELLS 45mm Galv Steel Wire Rope Steel Strand Cable 1x19
-
Linyi Wells Alloy Steel Wire Rope for Building Made in China
-
China Wholesale Wells Carbon Steel Wire Rope Diameter 2-50mm
-
High Quality Linyi Wells Steel Wire Rope Diameter 2-38mm
-
High Quality Various Diameter Steel Wire Rope 1*7 7*19 From China
-
High Tension Steel Wire Rope 1*7 6*7 1*19
Product Details
| Steel Grade | carton steel 45# 60# 65# 70# | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 5mm | Place of Origin | Shandong, China | |
| Type | Galvanized | Application | Rope | |
| Alloy Or Not | Non-alloy | Model Number | 45# 60# 70# | |
| Brand Name | WELLS |
Product Description
Linyi WELLS zinc galvanized steel wire rope/cable 1x19 6*19
| NO. | ITEM | DETAIL |
| 1 | Product Name | galvanized steel wire rope 5mm(7*19 ) |
| 2 | Steel Grade | Carbon Steel |
| 3 | Standard | AISI ASTM BS DIN GB JIS API ISO |
| 4 | Core | wsc |
| c5 | Wire Gauge | 5mm |
| 6 | Surface | galvanized |
| 7 | Material | 45# 60# 65# 70# |
| 8 | Place of Origin | shandong, China(Mainland) |
| 9 | Type | Crane Steel Wire Rope |

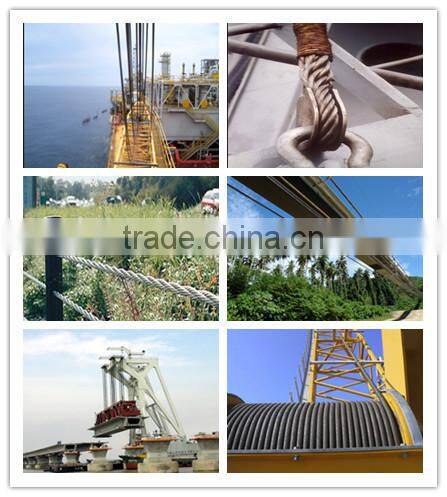

| 10 | Application | For loading and unloading in port and water conservancy project |
| For tower crane | ||
| 11 | Alloy Or Not | Non-alloy |
| 12 | Brand Name | WELLS |
Thehnical parameters
Nominal T.S.(MPA) | 1470, 1570,1670,1770,1870 | ||
Standard | AISI, ASTM, BS, DIN, GB, JIS | ||

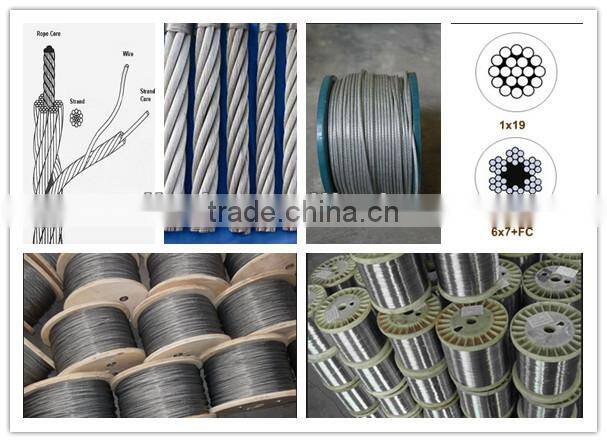

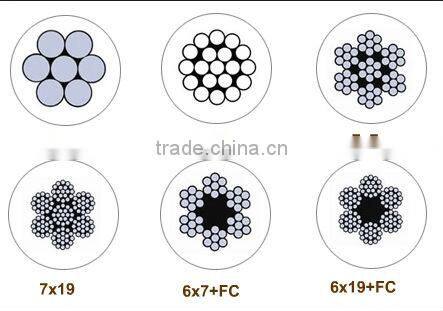

Structure | Rope Diameter(mm) | Min.Breaking Load (KN) | Approx.Weight kg/100m |
| 1x19 | 0.45-24 | 0.167-536 | 0.102-288 |
| 7x7 | 0.36-20 | 0.083-225 | 0.0531-160 |
| 6x7+FC | 1.5-18 | 1.43-169 | 0.81-116.64 |
| 7X19 | 0.75-32 | 0.392-534 | 0.231-409.6 |
| 6X19+FC | 2.0-18 | 2.25-143.6 | 1.6-129.6 |
| 19X7 | 6-36 | 20.3-557 | 15.12-544.32 |
| 6XWS(36)IWRC | 4-28 | 9.3-404 | 6.4-313.6 |
productions
WELLS Steel Wire Rope Payment & Shipping Terms
| NO. | ITEM | DETAIL |
| 1 | Trade Term | FOB |
| 2 | MOQ | 5Ton |
| 3 | Port | QINGDAO /SHANGHAI |
| 4 | Package | Ply wooden reel or coil and pallet As your requirements welcomed . |
| 5 | Delivery Time | 30/60days after received deposit |
| 6 | Payment Terms | T/T 30% down payment in advance |
| 7 | Supply Ability | 500Ton/Month |
used

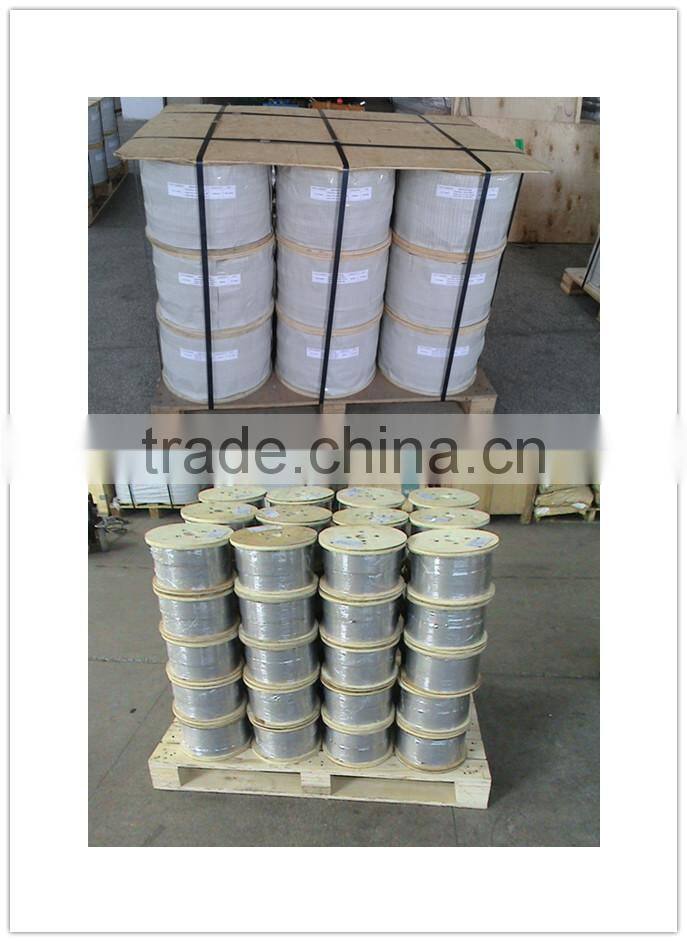

Packing
WELLS Steel Wire Rope How To Order?
Please kindly give us complete information as specified below for the most appropriate quotation.
| NO. | ITEM | DETAIL |
| 1 | USAGE | Application of steel wire rope. |
| 2 | CONSTRUCTION | The detail construction. |
| 3 | DIAMETER | Diameter of the rope in millimeter or inch. |
| 4 | TYPE | Seale |
| Warrington | ||
| SW |
| 5 | SURFACE | Ungalvanized; |
| Galvanized(hot-dip or electrogalvanized) | ||
| PVC coated | ||
| 6 | CORE | FC |
| IWRC | ||
| IWS | ||
| 7 | TENSILE STRENGTH | Normal Tensile Strength |
| 8 | BREAKING LOAD | Minimum breaking load in KN |
| 9 | STANDARD | Any recongnized specification, if necessary |
| 10 | LENTH/REEL | Length per reel in meter or feet |
| 11 | PACKAGE | Ply wooden reel or coil and pallet As your requirements welcomed |
| According to customer's needs. | ||
| 12 | QUANTITY | By Reel |
| By Meter | ||
| By Weight | ||
| By Feet | ||
| 13 | REMARK | Shipping Marks and any other special requirements |
....
