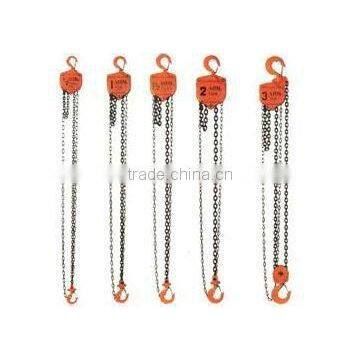

linyi WELLS HSZ-C chain block made in china

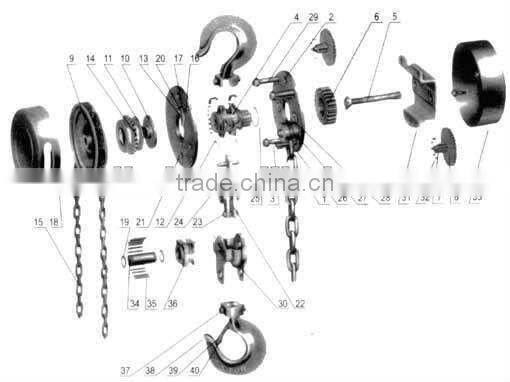

Model HSZ chain block is designed with a transmission mechanism of symmetrically arranged two-step spurgears.The features are as follows:operation with minimum manpower,compact construction,safety and reliability,easy and convenient to handle and maintenance.It is suitable for factories mines,warfts and so on.And it is especially used in the open and at places where there is no power supply.
Model | HSZ0.5 | HSZ1 | HSZ1.6 | HSZ2 | HSZ3.2 | HSZ5 | HSZ10 | HSZ20 | |
Rated Capacity | 0.5 | 1 | 1.6 | 2 | 3.2 | 5 | 10 | 20 | |
Standard Lift Height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
Test load | 0.63 | 1.25 | 2 | 2.5 | 4 | 6.3 | 12.5 | 25 | |
Chain pull to full load(N) | 235 | 340 | 390 | 340 | 390 | 420 | 450 | 450 | |
Headroom(hook to hook)Hmin(mm) | 250 | 300 | 360 | 380 | 470 | 600 | 730 | 1040 | |
Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
No.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |

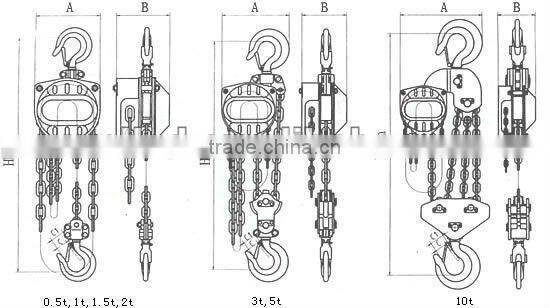

Dimensions(mm) | A | 121 | 142 | 178 | 142 | 178 | 210 | 338 | 580 |
B | 112 | 126 | 142 | 126 | 142 | 165 | 165 | 200 | |
C | 20 | 24 | 28 | 30 | 34 | 44 | 60 | 75 | |
Net weight(kg) | 8 | 10 | 15 | 14 | 24 | 36 | 68 | 164 | |
Extra weight per meter of extra lift(kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
...
