HF-315P Hydroponics Farms Inline Duct Fan

HF-315P Hydroponics farms inline duct fan

HF-315P Hydroponics farms inline duct fan

Product Features:

· Fan body is made of environmental protection material with beautiful  lines and light weight,

  double insulation.
· Fan blade is designed according to hydromechanical principle to reach the optimal airflow and

  air pressure, high efficiency working, low energy consumption and low noise.
· Special design of joint to facilitate installation and dismounting; Easy  installation and maintenance.
· Outer rotor motor inside, with Japanese brand NMB ball bearing, long working life over 50000 hours.
· Protection class: IP44.
· Can be designed with user friendly features such as time delay, temperature sense, humidity sensor

  or other customized functions.
· Operating temperature range: -20℃~60℃.
· Perfect for residential/commercial/industrial ventilation purpose.

HF-315P Hydroponics farms inline duct fan

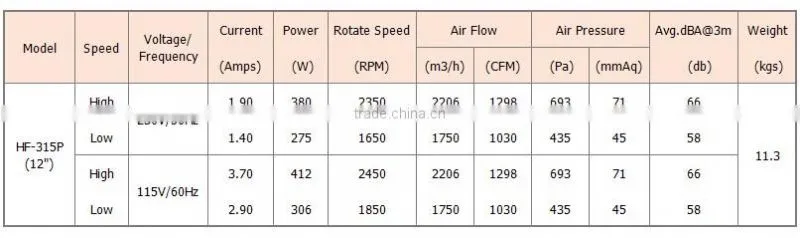

Performance Parameter:

HF-315P Hydroponics farms inline duct fan

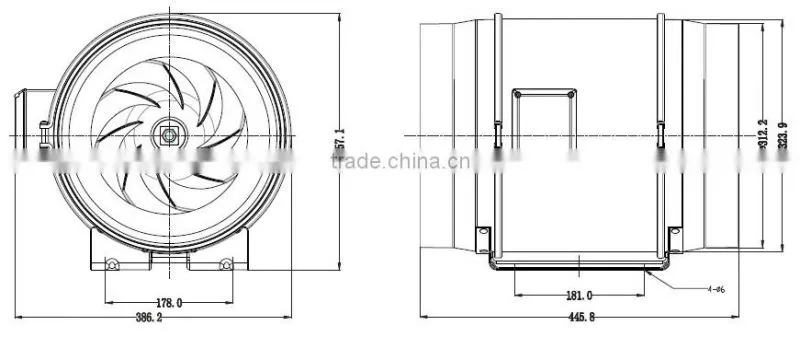

Dimensions (mm):

HF-315P Hydroponics farms inline duct fan

Performance Curves

qv: Air volume in CFM.

psf : Static pressure in mmAq.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

HF-315P Hydroponics farms inline duct fan

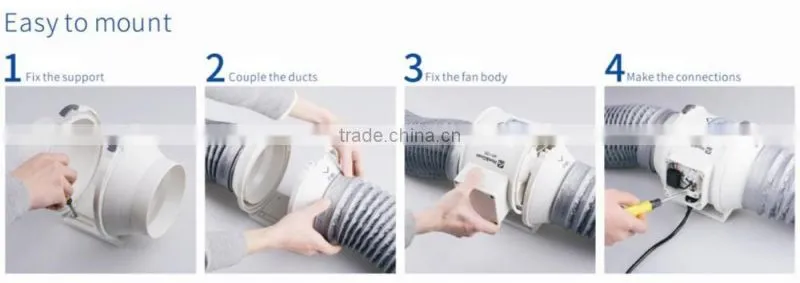

  INSTALLATION

HF-315P Hydroponics farms inline duct fan
