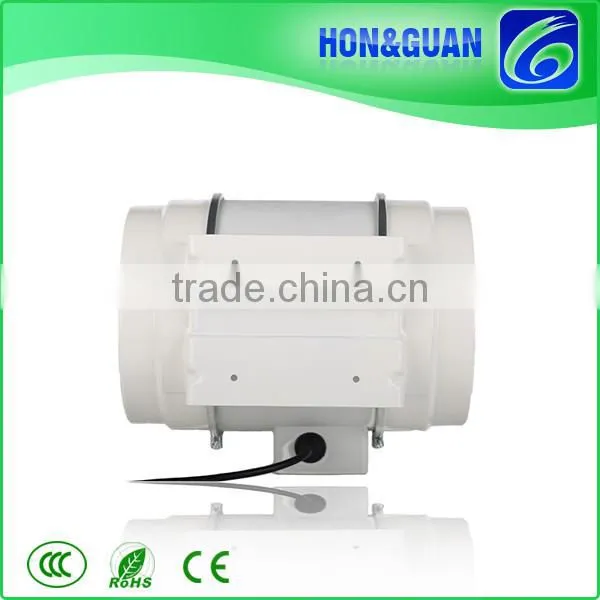

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-1
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-2
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-3
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-4
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-5
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan thumbnail-6
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-1
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-2
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-3
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-4
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-5
8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan photo-6
US$ 40 - 60 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Duct Fan
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Hongguan Mechatronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Duct Fan
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name Hon&Guan or OEM
Model Number HF-200P
Voltage 110-240V
Power 128W
Air Volume 840CMH
Speed 2450RPM
Certification CCC, CE, Other, CCC, CE, SAA
After-sales Service Provided Overseas service center available

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Product Features:

  • The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
  • Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
  • IP44 Protection class, waterproof and dustproof more effective.
  • Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
  • Run the ambient temperature range: -20°C~60°C.

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Performance Parameter:

Model Gear Voltage/Frequency Current Power Speed Weight Air Flow Air Pressure Avg. dBA@3m
(Amps) (W) (RPM) (Kg) (M3/H) (Pa) (db)
HF-100
(4")		 H 230V/50Hz 0.12 26 2200 2.0 198 156 31
L 0.11 23 1850 165 131 26
H 115V/60Hz 0.26 30 2200 198 156 31
L 0.24 28 1850 165 131 26
HF-125
(5")		 H 230V/50Hz 0.14 33 2250 1.8 284 159 31
L 0.13 28 1850 248 106 26
H 115V/60Hz 0.30 32 2250 284 159 31
L 0.26 27 1850 248 106 26
HF-150
(6")		 H 230V/50Hz 0.24 54 2550 2.7 530 300 33
L 0.21 44 1850 410 240 29
H 115V/60Hz 0.58 65 2550 530 300 33
L 0.49 53 1850 410 240 29
HF-200
(8")		 H 230V/50Hz 0.57 128 2450 4.9 840 352 63
L 0.52 123 1950 690 274 55
H 115V/60Hz 1.41 162 2450 840 352 63
L 1.28 146 1950 690 274 55

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Dimensions (mm):

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Model X A øB C øD E F G H
HF-100 188 303 176 115 97 100 90 80 60
HF-125 188 258 176 115 123 100 90 80 60
HF-150 212 320 200 127 147 112 130 80 60
HF-200 232.5 302 217 141 197 124 140 100 94

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan



8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Photo Gallery (Various angles):

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan



8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan



8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan

Application:

Practical examples of installation of the HF mixed flow fans range The HF fans provides a large number of solutions for small and large ventilations.



Residential-Kitchen, Domestic-Range Hood Exhaust, Commercial-Office, Industrial-Republic Restroom, School-Dining Hall, Industrial-Locker Room Health-Waiting Room, Meeting Room, Catering, Gym, Bathroom, Study Room.

8" HF-200P NMB Ball Bearing 50000 Working Hour Industrial Ventilating Fan
