garage floor mat

Specifications

garage floor mat
1. Conductor: Metal alloy
2. AL screen
3, Tinned copper ground wir
4, Zero electromagnetic

garage floor mat

Cable Construction: flat cable or round cable

Cold Tail: 2x2.5m (or as your enquiry)

Voltage: 240V (or as your enquiry)

Power: 150W-180W/M² (or as your enquiry)

Outer sheath: Flame Retardant

Screen: Full Covering Metal Screen

Certification: CE & RoHS approved

Quality control: ISO9001

Product Description

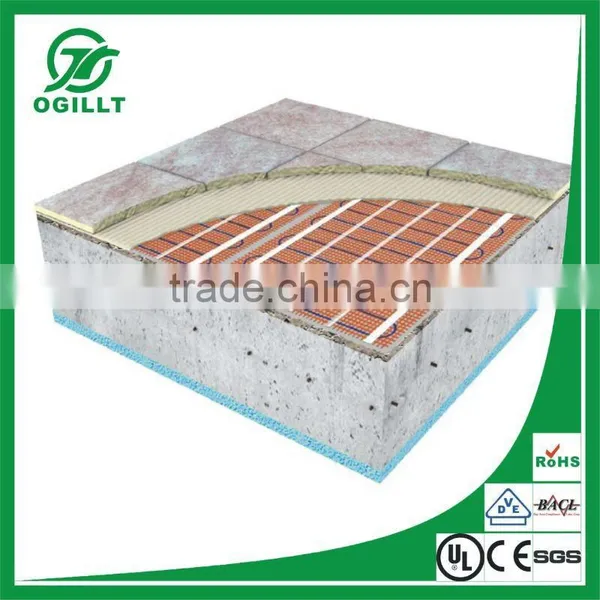

Heat Mat can provide electric underfloor heating to fit beneath virtually any floor covering. They can supply systems from simple floor warming with low build height in a small bathroom, to complete heating systems for new-build blocks of flats where the floor covering has not been finalized. Heat Mat also produce solutions for ice and snow melting, frost protection and mirror de-misting in addition to bespoke products that can be manufactured to order.



Product Features

• 100% earth shielded undertile heating mats, in standard 150W/m² and powerful 180W/m² categories
• Unique fully earthed, cut and turn underlaminate system
• Ultra-thin fully earthed undertile heating cable allowing you to set the output
• Ease of installation
• emits zero electromagnetic fields
• genuine 10 year warranty

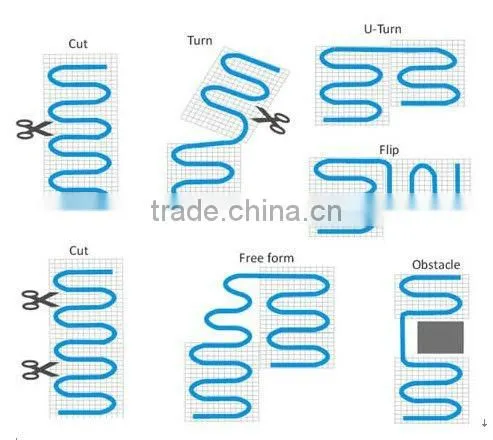

Cable Mat brings you the very best in design and manufacture and supplied as a finished installation friendly product complete with factory attached cold tail leads. The tough floor heating cable is uniformly spaced on a mesh mat which is easily cut and turned in any way to suit your floor space and layout.



heating mat (240V)
Length(feet)	Coverage(sq.ft.)	Watts(50W/sq.ft.)	Amps
7.5	15	750	3.1
10	20	1000	4.2
12.5	25	1250	5.2
15	30	1500	6.3
17.5	35	1750	7.3
20	40	2000	8.3
22.5	45	2250	9.4
25	50	2500	10.4
30	60	3000	12.5
35	70	3500	14.6
40	80	4000	16.7
45	90	4500	18.8
50	100	5000	20.8
57.5	115	5750	24
65	130	6500	27.1

.
