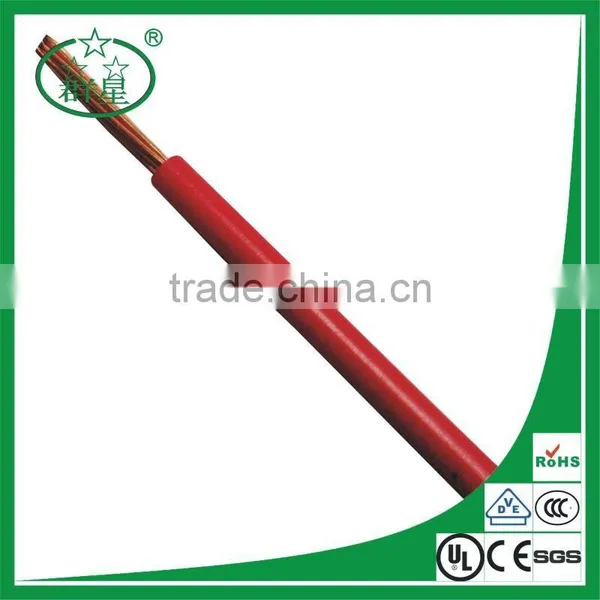

Compact Stranded Copper Wire
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Qunxing
Model Number:
BV
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6192Y/ 6193Y to BS 6004 / PVC/PVC CableUS$ 0.1 - 1MOQ: 10000 Kilometers -
Stranded WireUS$ 0.1 - 1MOQ: 10000 Kilometers
-
Low Voltage 7 Cores Thin Electric WiresUS$ 0.35 - 6MOQ: 5000 Meters
-
218Y to BS 6500 / PVC Insulated and Jacket CableUS$ 0.1 - 1MOQ: 10000 Kilometers
-
Wire ManufacturerUS$ 0.1 - 1MOQ: 10000 Kilometers
Place of Origin
Guangxi, China
Brand Name
Qunxing
Model Number
BV
Type
Insulated
Application
Underground
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
compact stranded copper wire
Cable Construction
1.Fine bare copper strands
2.Stranding to BS 6360 Class 5 or IEC 60228 Class 5
3.Special PVC TI1 core insulation to BS 7655
Core Identification
Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
1.Working voltage: 300/500v (H05V-K)/ 450/750v (H07V-K)
2.Test voltage: 2000 -2500 volts
3.Minimum bending radius: 6xOverall diameter
4. Flexing temperature: -5º C to +70º C
5.Static temperature: -30º C to +80º C
6.Flame retardant: IEC 60332.1
7.Insulation resistance: 10 MΩxkm
Cable Parameter
