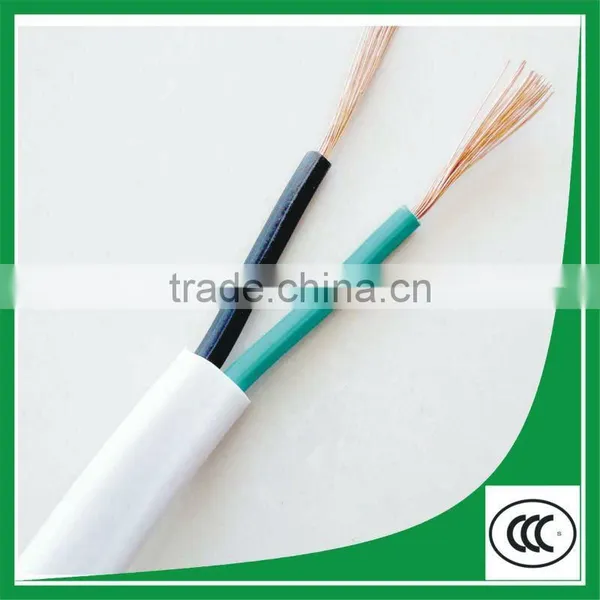

2 Cores Electric Wire
US$ 0.25 - 8.2
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Qunxing
Model Number:
VV, VLV
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangxi, China
Brand Name
Qunxing
Model Number
VV, VLV
Type
Low Voltage
Application
Construction
Conductor Material
Copper
3 cores Power Cable
PVC insulation & sheath power cable
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Specification
Rate voltage U0/U: 450/750V,300V/500V,300V/300V.
Temperature Range:70-90°C
Conductor: Copper or Aluminum
Insulation: PVC
Colours:Black,Red,Yellow,Green,Blue,etc
Characteristic
High/low temperature resistant, anti-acid, anti-oil, antisepsis and moisture
Application
Apply to Household appliance, Illumination and Lighting and Headlamp, electric machines, temperature sensor Military series, Metallurgy Chemical series, Motor cars and Ships Electrical Installation.
Specification Size and Technical Data
| Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight | ||
| sectional area | No/Dia. | Insulated thick | Dia. | Resistance at | resistance at | Kg/km | ||
| mm2 | mm | mm | mm | 20 | 70MΩ/km | |||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
