Low Smoke Halogen Free Cable

1. low smoke halogen free cable
2.To produce little smoke
3.innocuous gas
4.without halogen
5.LSZH or LSOH or LS0H or LSFH

XLPE low-smoke no-halogen flame-retardant polyolefin insulated

Electric Cables:

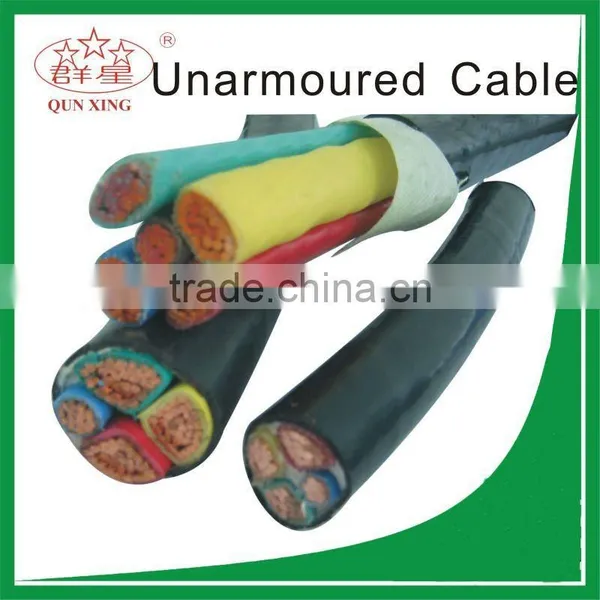

CU Conductor PVC Insulated PVC Sheathed Power Cable

1. The applications: Rated voltage (U0/U) 0.6/1kv  8.7/15KV  26/35kV in transmission & transformation line & for water-proofing purpose .

2. Standards: 60502IEC  ISO9001

3. Product features:

1) No necessary to heat up in advance while installing above 0^oC.

2) Max. continuous normal operating Temperature: 90^oC (PVC Sheathed cable).

3) Max. Permissible temperature at short circuit (5s. at longest): 250^oC.

4) Permissible bending radius:

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
