Overhead Cable

Specifications

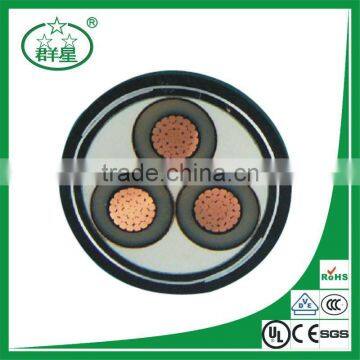

overhead cable

1.Application:

Power cables for power networks, underground, outdoors and in cable ducting.

2.Standards:

GB/T 12706,GB/T11017,GB/T 18380

3.Conductor:

Copper & Aluminum

5.Conductor screen:

Semi-conducting Layer

6.Insulation:

XLPE

7.Insulation Screen:

Semi-conducting Layer

8.Metallic Screen:

Individual and overall copper tape screen

9.Bedding:

PVC

10.Armoring:

Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA)

11.Sheath:

PVC

12.Color:

Red or Black

13.Voltage Rating:

6350/11000V

14.Temperature Rating:

0 to +70°C

15.Minimum Bending Radius:

Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

>Not drop restriction on laying

>Stable & process performance

>Strong ability to adapt to the environment

>Short circuit (the longest duration of not more than 5s)

>The highest temperature of cable does not exceed 250 °C

>The maximum normal operating temperature of conductor 70°C

>Good flexibility, easy maintenance, installation, simple structure

>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.

In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero,
