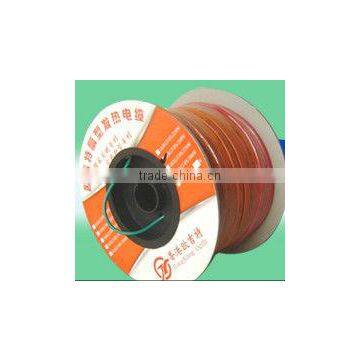

pvc heating cable
- 100000 Meter / Meters per Month
- Shenzhen/Ningbo/Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | OGILLT | |
| Model Number | OGILLT-BX | Type | Floor Heating Systems |
Product Description
Specifications
pvc heating cable1. Conductor: Metal alloy
2. XLPE insulate, PVC Jacket
3, AL screen
4,Tinned copper gro
pvc heating cable
Cable Construction: flat ribbon
Cable Shape: flat
Diameter: 15mm, 20mm
Cold Tail: 2x2.5m (as your enquiry)
Volt: 220V (as your enquiry)
Power: 17W/meter (as your enquiry)
Conductor Insulation: XLPE
Outer sheath: Flame Retardant PVC
Screen: Full Covering Metal Screen
OGILLT Floor Heating is dedicated to bringing you the unbelievable comfort of being warmed from underneath by radiant floor heating. The warmth from radiant floor heating warms your feet and legs then naturally rises to make the entire room comfy and cozy. The heating cables from OGILLT Floor Heating are easy to install under any type of floor cover. The system operates on the principle of electrical resistance with cables with XLPE insulation. If you have other advises, just let us know.
- Ease of installation
- no return to the thermostat is required(twin conductor cable)
- Covers from 147 up to 205 sf depending on chosen spacing
- Designed for indoor use in wet or dry environments
- emits zero electromagnetic fields
- safety approved for wet locations
- flexible installation
- genuine 10 year warranty
| Item No. | Voltage(V) | Wattage(W) | Total Resistance (Ω) | length(M) | Ω/M |
| OGILLT-BX-300/17 | 220 | 300 | 161.3 | 17.6 | 9.16 |
| OGILLT-BX-400/17 | 220 | 400 | 121 | 23.5 | 5.15 |
| OGILLT-BX-500/17 | 220 | 500 | 96.8 | 29.4 | 3.29 |
| OGILLT-BX-600/17 | 220 | 600 | 80.7 | 35.3 | 2.29 |
| OGILLT-BX-700/17 | 220 | 700 | 69.1 | 41.2 | 1.68 |
| OGILLT-BX-800/17 | 220 | 800 | 60.5 | 47.1 | 1.28 |
| OGILLT-BX-900/17 | 220 | 900 | 53.8 | 52.9 | 1.02 |
| OGILLT-BX-1500/17 | 220 | 1500 | 32.3 | 88.2 | 0.37 |
| OGILLT-BX-1750/17 | 220 | 1750 | 27.7 | 102.9 | 0.27 |
| OGILLT-BX-2000/17 | 220 | 2000 | 24.2 | 117.6 | 0.21 |
| OGILLT-BX-2250/17 | 220 | 2250 | 21.5 | 132.4 | 0.16 |
| OGILLT-BX-2500/17 | 220 | 2500 | 19.4 | 147.1 | 0.13 |
| OGILLT-BX-2750/17 | 220 | 2750 | 17.6 | 161.8 | 0.11 |
| OGILLT-BX-3000/17 | 220 | 3000 | 16.1 | 176.5 | 0.09 |
