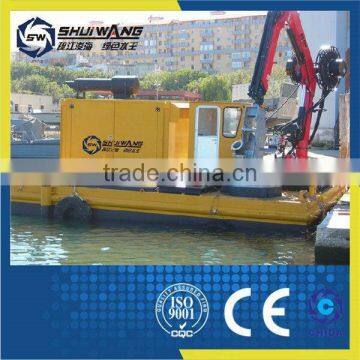

hydraulic dredger pump,River Sand Diesel Suction Pump for sale
Specifications
3.Good wear-resistant properties
The pump is mainly used for pumping or sucking sand, gravel, oil or other water mixture, which has extra performance of dredging for sand and gravel.
It's mostly attached to amphibious excavator, swamp excavator, dredging excavators, or cutter
suction dredger, bucket dredgers etc to operate.
Features:
1.The pump impeller and housing is made of high-chromium cast iron which is particularly applied
for dredging sand and gravel and have very good performance on wear resistance, easy to be
replaced and low cost.
2.It can be drived by the engine output 120KW and the hydraulic pump as Doosan K3V112 or
same kind.

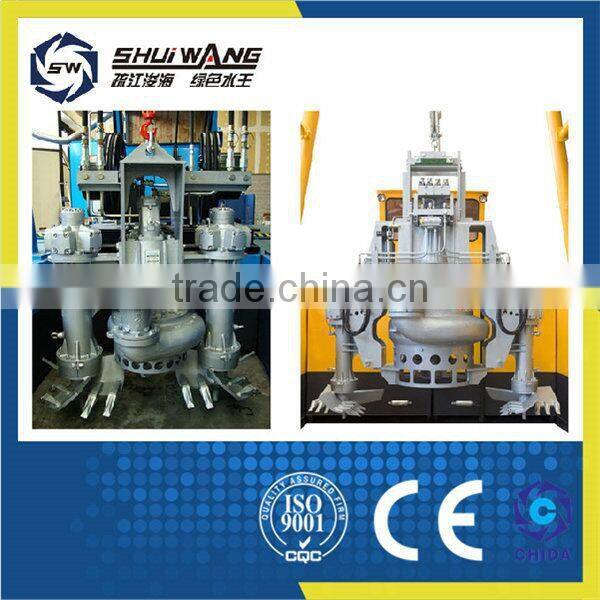

3.The pump is impeller centrifugal pump, including 2 rotate cutter or stirrers which loosen the mud
or sand matters for suction.
4.The pump is hydraulically drived instead of electrically drived which has more applications in
deep water area and used for dredging different matters.
5.It’s better than the electrical pumps often met the problem of short circuit or burn when dredging
the hard matters.
hydraulic dredger pump,River Sand Diesel Suction Pump for sale
EL10S Electric pump | |
Capacity: | 60m³/h |
Head: | 15m |
Voltage/Current: | 230-400V/33-19A |
Weight: | 270Kg |
Cross Section: | ø25mm |
Impeller: | 4 vanes open/ø300mm |
Bore: | Ø100mm |
Electric motor | |
Phases/poles/frequency: | 3/4/50Hz |
Motor Output: | 9kw[12.5HP] |
Speed: | 1450R.P.M |
Motor Insulation:c | Class F |
Materials: | |
Main Body: spheroidal cast iron GS500. Motor Housing: cast iron G25.
1)Impeller-high chrom. 2)Wear Plate(adjustable)-high chrom 3)Agiator-high chrom
Main Shaft:austempering NiCrMo4 Steel. | |
Seals: | |
Motor Zone: double mechanical seal silicon carbide-silicon carbide in oil bath.Impeller Zone:(alternate) no.2 compact polyurethane seals plus no.2 double rubber lip seals with stainless steel spring. | |
hydraulic dredger pump,River Sand Diesel Suction Pump for sale
Shuiwang company can provide a complete package of spare parts,maintenance support,
equipment training programmes, operating advisory services andoperators for hands-on instructionand commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.

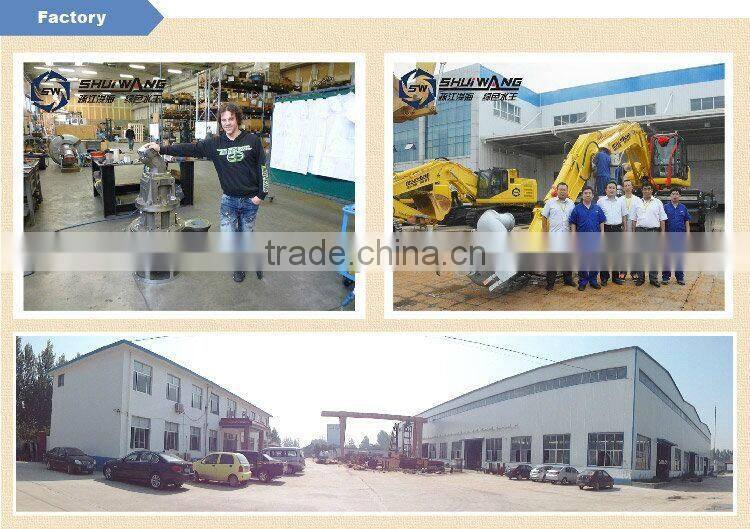

QingZhou Shuiwang Environmental Equipment Corporation Co.,Ltd. is a moderized company .It was eatablished in 2002 with an area of 18000 square meters,equipped with modernized workshop and good working environment.As the bird passed ISO9001 international quality system authentication in this field and a member unit of Association of QingZhou Dredger Industry.The company has established good cooperation with Environment and Engineer Department of Guangzhou University and Guangxi Motallurgical Research Institute as well as Harbin Gold Research Institute of State Gold Aimistration Bureau and China Environmental Science Research Institute and other famous research institute in China.At present the company owns four young and dynamic teams:Shuiwang management team ,Shuiwang technical support team,Shuiwang sales team and Shuiwang laboratory.Business scope in Shuiwang involves in the design,produce and sales of the following equipments in this field:beneficiation machinery,track building machinery,placer machinery,offshore beneficiation platform,all-purpose dredger,sea sand desalting plant ,silting machinery,urban garbage treatment system ,sludge treatment equipment ,concrete speciment recovery system,sand -gravel washing appliance,zircon san,limenite sand,tin ore mining and extraction machinery,dredger remote transmission system(2000-5000meters).
We will take 'capability will tell,credibility will win' as our philosophy and 'leading product,toping quality and first-ranking service 'as our standard,take customer's demand as our management aim,make our best efforts to create values for the customer,to drive our company forward and to make welfare for our staff !
