hot sale front wheel loader SW659C good price
Features
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting capability, higher productivity and fuel efficiency.
• Front and rear axle of unique design and SI axle Caterpillar technology, and wet brake system, featuring high reliability and durability.
• 19MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts and convenient operation.
• Caterpillar PS bucket has small resistance and high load factor, which improves the production efficiency by 12%.
• Lengthened wheelbase, heavier counterweight, higher load capacity, and rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Working pump and steering pump made by Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses and optimized pipelines.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional cooling system for 50℃ ambient conditions is also available.
• Increased steering pressure makes more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and reduces vibration and noise.
• The electric system is upgraded and adopts high grade waterproof and dustproof plugin guarantee system, which is more safe and reliable. The overall design meets the mandatory noise and safety standards in China.
Parameters of SW669C
Model | SW669C |
Bucket Capacity | 3.3-5.5 m3 |
Rated Load Capacity | 6000 kg |
Operating Weight | 19600 kg |
Max. Drawbar Pull | 185kN |
Max. Breakout Force | 190 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 7050 mm |
Min. Turning Radius (Outer Tire) | 5990 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.2 s |
Dump Height | 3050 mm |
Dump Reach | 1280 mm |
Wheelbase | 3350 mm |
Standard Dimensions (L×W×H) (mm) | 8510×3092×3440 |
Engine | |
Model | Shangchai SC11CB240.1G2B1 National Stage II emission standards |
Type | In-line, vertical, water cooling, 4-stroke |
Rated Power | 175 kW |
Max. Torque | 950 Nm |
Drive System | |
Torque Converter | YJH340B |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Electronic controlled fixed axle type |
Speed Gears | 4 forward/3 reverse gears |
Max. Speed | 30.6 km/h |
Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12 °), turbocharging |
Steering System | |
Type | Coaxial flow amplification steering |
Steering Angle (left/right) | 38°±1 |
Hydraulic System | |
Hydraulic System Pressure | 18 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Dry type air-over-oil caliper disc brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25PR |
Volume | |
Fuel Tank | 274L |
Hydraulic System | 230L |
Optional Devices | |
Rock bucket with inclined cutting edge/rock bucket/sand bucket/side dump bucket | |
Log grab/coal bucket and long reach arm | |
Enlarged tires 26.5-25/Desert tires | |
ROPS/FOPS | |
Quick coupler and tools | |

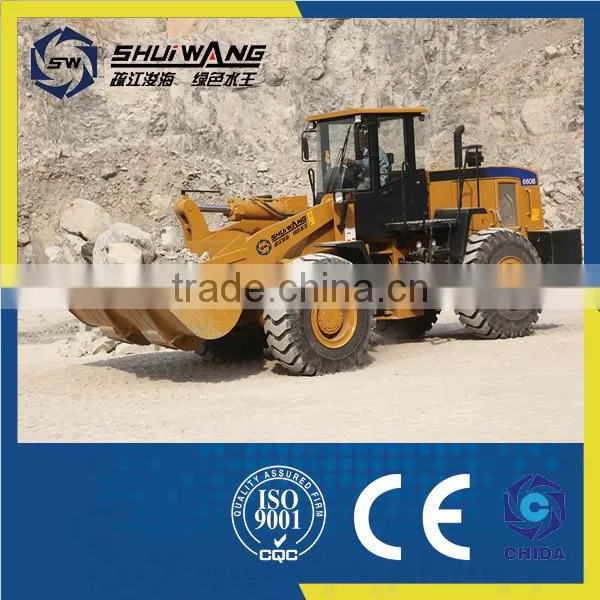

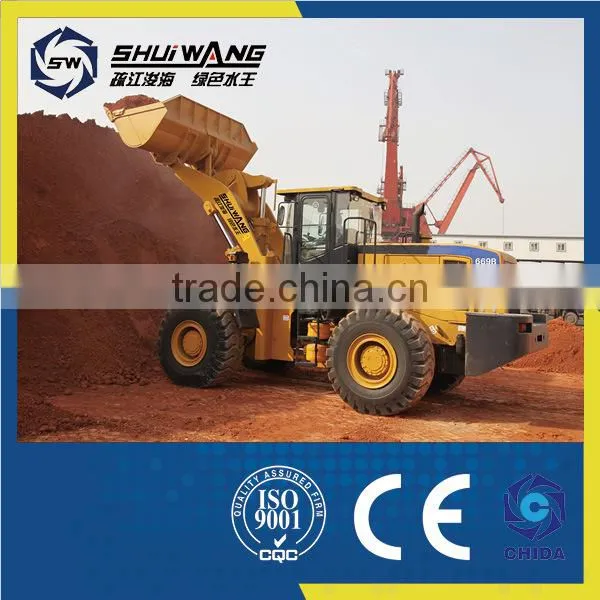

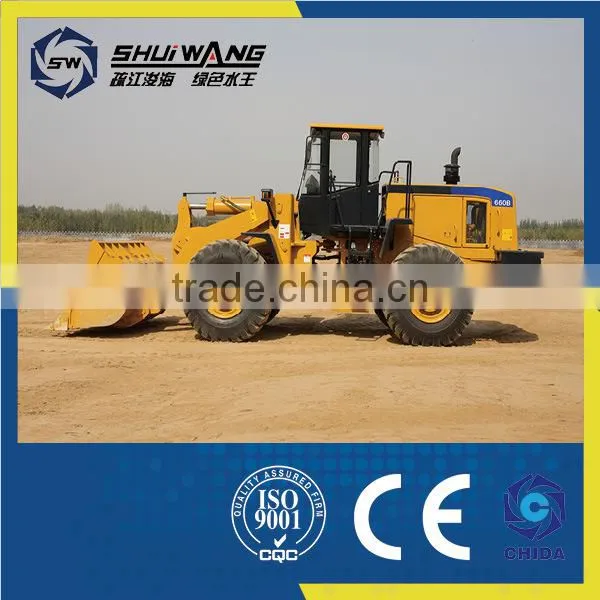

some detailed pictures
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
