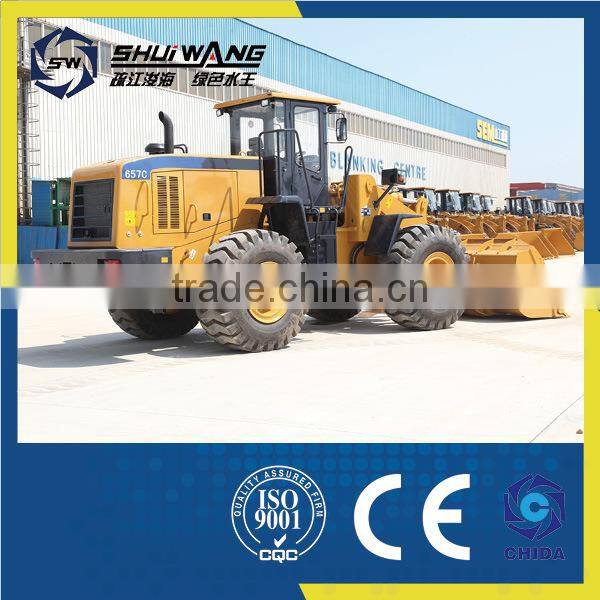

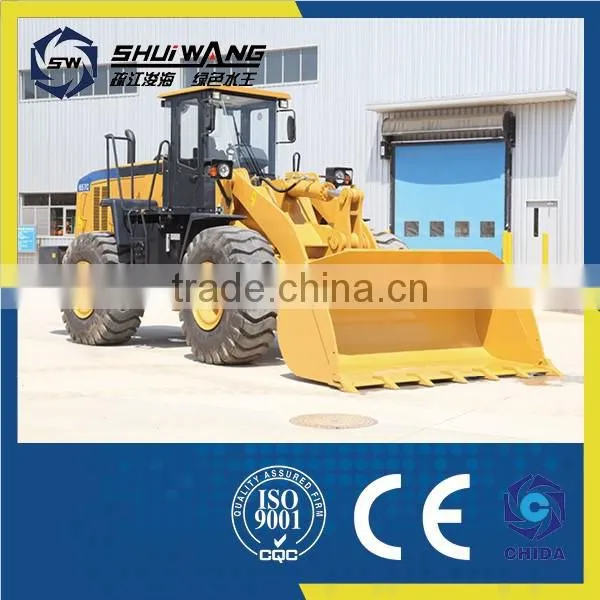

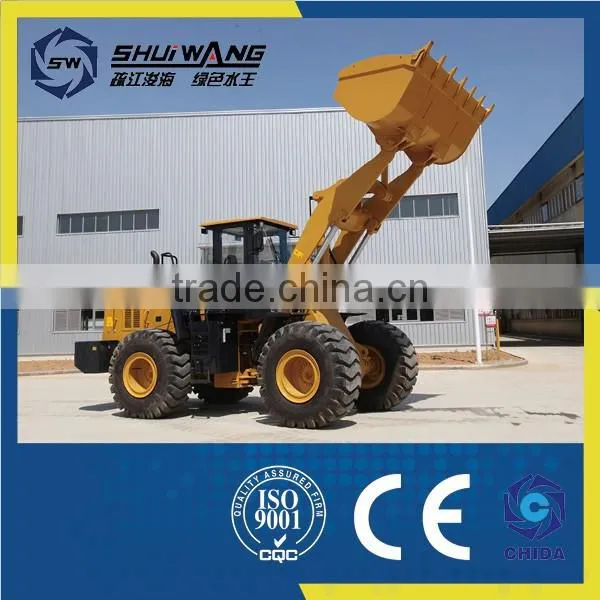

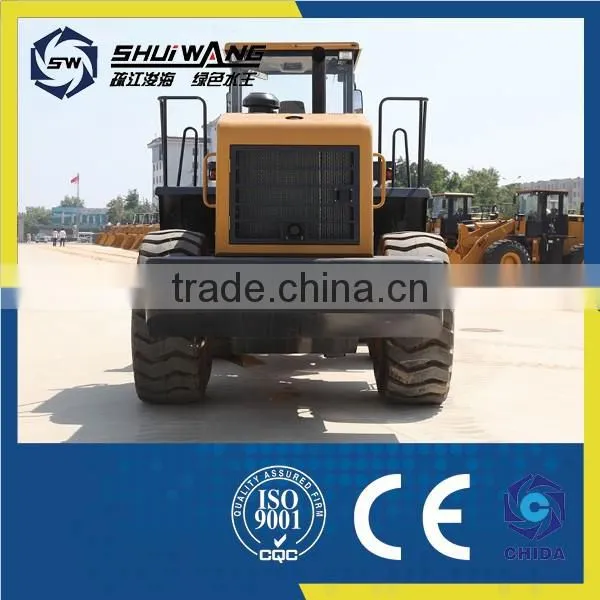

SDSW series used front end loader farm tractor
Features
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting capability, higher productivity and fuel efficiency.
• Front and rear axle of unique design and SI axle Caterpillar technology, and wet brake system, featuring high reliability and durability.
• 19MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts and convenient operation.
• Caterpillar PS bucket has small resistance and high load factor, which improves the production efficiency by 12%.
• Lengthened wheelbase, heavier counterweight, higher load capacity, and rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Working pump and steering pump made by Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses and optimized pipelines.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional cooling system for 50℃ ambient conditions is also available.
• Increased steering pressure makes more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and reduces vibration and noise.
• The electric system is upgraded and adopts high grade waterproof and dustproof plugin guarantee system, which is more safe and reliable. The overall design meets the mandatory noise and safety standards in China.
Parameters of SW657C
Model | SW657C |
Bucket Capacity | 2.7-4.5 m3 |
Rated Load Capacity | 5000 kg |
Operating Weight | 16500 kg |
Max. Drawbar Pull | 164 kN |
Max. Breakout Force | 168 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 6931 mm |
Min. Turning Radius (Outer Tire) | 5867 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.4 s |
Dump Height | 3096 mm |
Dump Reach | 1267 mm |
Wheelbase | 3300 mm |
Standard Dimensions (L×W×H) (mm) | 8176×3068×3440 |
Engine | |
Model | HFWD61561AG218 National Stage II emission standards |
Type | Turbocharging |
Rated Power | 162 kW |
Max. Torque | 920 Nm |
Drive System | |
Torque Converter | TR200 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Fixed axle power shift transmission |
Speed Gears | 4 forward, 4 reverse |
Max. Speed | 42 km/h |
Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12 °), turbocharging |
Steering System | |
Type | Coaxial flow amplification steering |
Steering Angle (left/right) | 38° ±1 |
Hydraulic System | |
Hydraulic System Pressure | 19 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Dual-circuit, built-in wet brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25PR |
Volume | |
Fuel Tank | 273L |
Hydraulic System | 230L |
Optional Devices | |
Shanghai C6121 National Stage II Engine SC11CB220.1G2B1 | |
parts of loader
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
