Pump Suction Iron Magnetic Separator Dredger
US$ 75,000 - 120,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
90%
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sand Suction Iron Separating Dredger EquipmentUS$ 58,000 - 105,000MOQ: 1 Set -
Iron Separation Dredger Vessel/magnet SeparatorUS$ 90,000 - 120,000MOQ: 1 Set
-
Iron Powder Mining Machinery With Magnetic Separator for SaleUS$ 60,000 - 80,000MOQ: 1 Set
-
Iron Powder Mining Dredger/magnetic Sand Pumping Vessel/boatUS$ 80,000 - 120,000MOQ: 1 Set
-
Magnetic Separator Mining Dredger/sand Bucket Chain Vessel SalesUS$ 80,000 - 150,000MOQ: 1 Set
Condition
New
Type
Magnetic Separator
Production Capacity
90%
Place of Origin
Shandong, China
Brand Name
Xianke
Model Number
XKSSMS100
Power(W)
115KW
Dimension(L*W*H)
26*6.0*1.2m
Weight
28T
Warranty
3months
After-sales Service Provided
Engineers available to service machinery overseas
Main Parameter:
| Hull Size | L*W*H=26×2.0×1.2m | |||||||
| Parts | Size | Quantity | Materials | Fitted Power | Reducer | Others | Remarks | Pictures |
| Main Supports | L×W×H=6×4.5×3m | vertical supports:dia 159mm steel pipe; operating platform: 10mm steel plate | There is a operating platform above the dredger | |||||
| Submerged Sand Suction Head | length 10 m | 1 | dia 250 mm steel pipe | |||||
| submerged Pipe | length 20 m | 1 | dia 268 mm rubber sac | |||||
| Winch | 15 tons | 1 | a set of 11kw electric engine | a set of 400 type | ||||

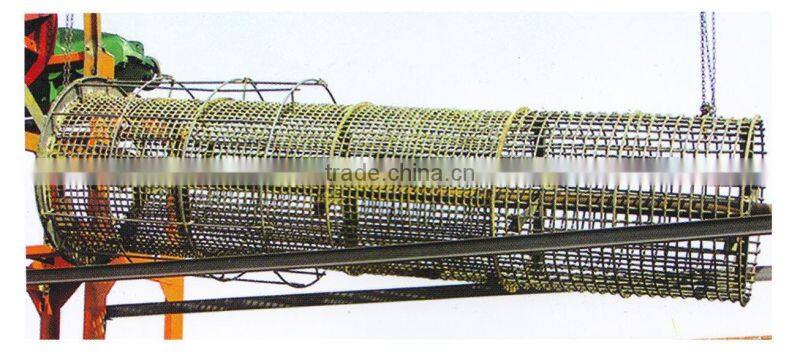

| Screen | dia 1.2m, length 2.0m | 1 | a set of 5.5kw electric engine | a set of 350 type | ||||
| Diversion Channel | 4 | making according to the magnetic separator | ||||||

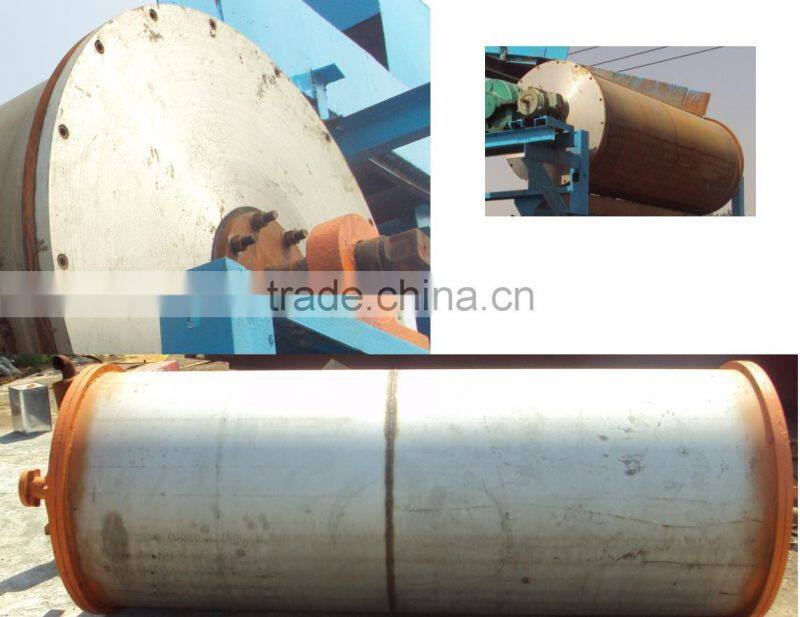

| Magnetic Separator | dia 900 mm, length 2400mm | 4 | 4 sets of 4 kw electric engine | 4 sets of 350 type | ||||
| Diesel Engine | 6105 | 1 | KMS6135AZD | brand: Commons | ||||
| Generator Set | 75kw | 1 | brand: Commons | |||||
| Sand Pump | pumping flow 746-1200m³/h | 1 | delivery lift: 33.1-78.0 m | brand: Shabao | ||||
| Operating Booth | 1 | |||||||
| Distribution Box | 1 | |||||||
| Capacity | ||||||||
| Digging Depth | 30 m | |||||||
| Hull Material | U-steel 16# 14# 12# 10# 8# angle iron 6# 5# 4# | |||||||
| Steel Plate thickness | bottom 6mm sides 6mm face 4mm | |||||||
| MOQ | one set | |||||||
| Lead Time | 8 work weeks | |||||||
| Price | RMB 1,240,000 USD 182,085 | |||||||
| Workflow | ||||||||
| Contact Information | Telephone No.+86-536-3836628 Fax No. :+86-536-3836628 Mobile No.+86-013562647985 Messenger Online QQ 1524468458 ; Trade Messenger qzxkjx Detailed Address IndustrialPark Huanglou Town Qingzhou City Shandong Province China Post Code 262518 | |||||||
| Remarks | If you consider that the product is not appropriate for your requirement, please supply the detailed information of the product to us, then we can produce according to your need.Or you consider some parts of the machine should be changed, please contact to us, so we can manufacture it according to your requirement. If you want to know more information about the product and us, please contact us. | |||||||
