Sand Washer Magnetic Sepatator Dredger
Serial number | Principal Particulars | Dimensions/Instruction |
1 | Principal Dimension | |
| Length | 20m |
| Width(single) | 1.7m |
| Thickness of bottom and side steel plate | 5mm |
| Thickness of face steel plate | 3mm antiskid plate |
| Material | Inner: 5# angle steel; frame: 12# U-bar and 5# angle steel |
2 | Main frame | |
| Height | 6m |
| Length×Width | 1.3m×1.2m |
| Material | 10#, 16# U-bar and 5# angle steel; welded frame structure |
3 | Buckets arm | |
| Length×Width×Height | 14.4×1.1×0.6m |
| Material | 12# and 10# U-bar; welded frame structure |
| Reducer model | 650 |

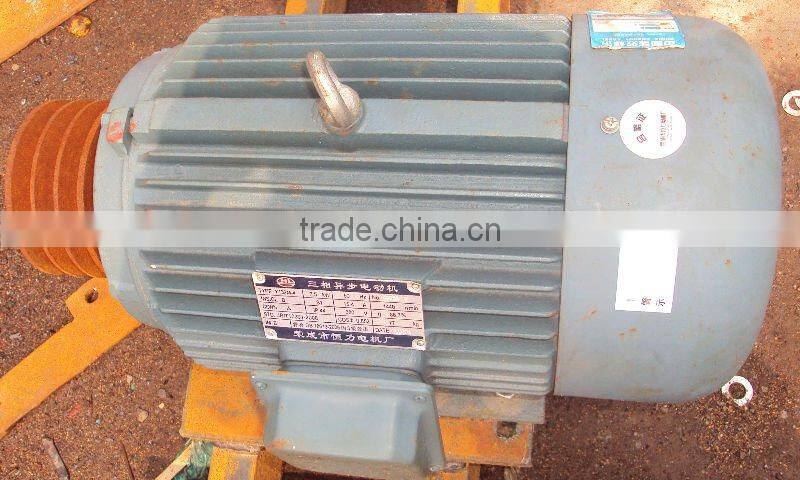

| power | 18kw electric engine |
4 | Sand Screen | |
| Diameter | 0.9m |
| Length | 1.3m |
| material | 18#,20# deformed steel bar; welded |
| Reducer model | 250 |
| Power | 4kw electric engine |
5 | Magnetic separator | |
| Diameter | 0.9m |
| Length | 2.2m |
| Magnetic force | 3600-4000GS |
| Reducer model | 250 |
| Power | 4kw electric engine |
6 | Water wheel | |
| Diameter | 2.2m |
| Width | 1.1m |
| Material | Welded with 8mm and 5mm steel plate |
| Reducer model | 500 |
| Electric engine | 7.5kw electric engine |
7 | Sand conveyor arm | |
| Length×Width | 12×0.85m |
| Material | Welded with 5# angle iron and 10# U-bar |

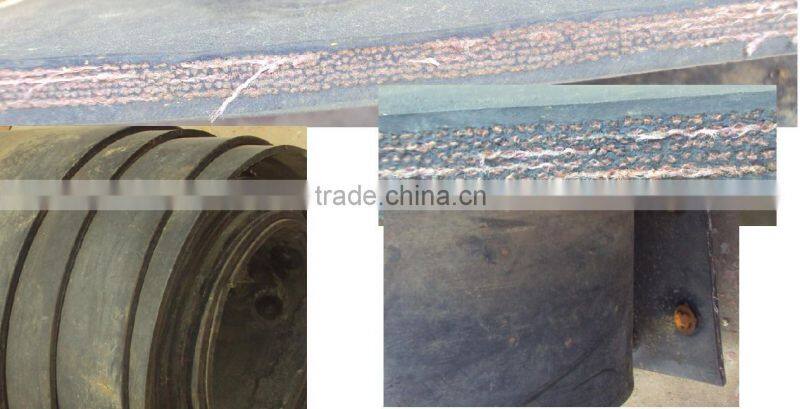

| Width of conveyor belt | 0.65m |
| Reducer model | 350 |
| Power | 7.5kw electric engine |
8 | Buckets | |
| Quantity | 56 |
| Buckets steel plate thickness | Bottom 6mm and face 4mm |
| Buckets mouth | Thickness 1.2mm and width 75mm |
| Links plate quantity | 112 |
| Links plate thickness | 22mm |
| Links plate width | 75mm |
9 | Four-angle wheel | |
| Diameter | 90cm |
| Width | 70cm |
| Links plate thickness | 20cm |
| Material | Welded with 9# angle iron |
10 | Distribution box | Including air-break switch, overload protector and power switches |
11 | Winch | |
| Reducer model | 350 |
| Power | 11kw electric engine |
12 | Gantry frame |
|
| Height | 4m |
| Width | The same to the hull width |
| Material | Metallic Twill welding with 12# U-bar |
13 | Lead time | 3 weeks after payment |
14 | EXW price | RMB 355000 USD 52300 |
