Qingzhou Xianke Mechanical Device CO,. Ltd.
Our company is a professional manufacturer of dredgers and some related products, such as processing gold ship, sand sucking ship, rusher and so on.
Our products are not only popular in our country, but largely exported to south africa, western africa, philippine, nigeria, Russia, Vietnam, and so on.
The technical options of the dredgers are customized and flexible.

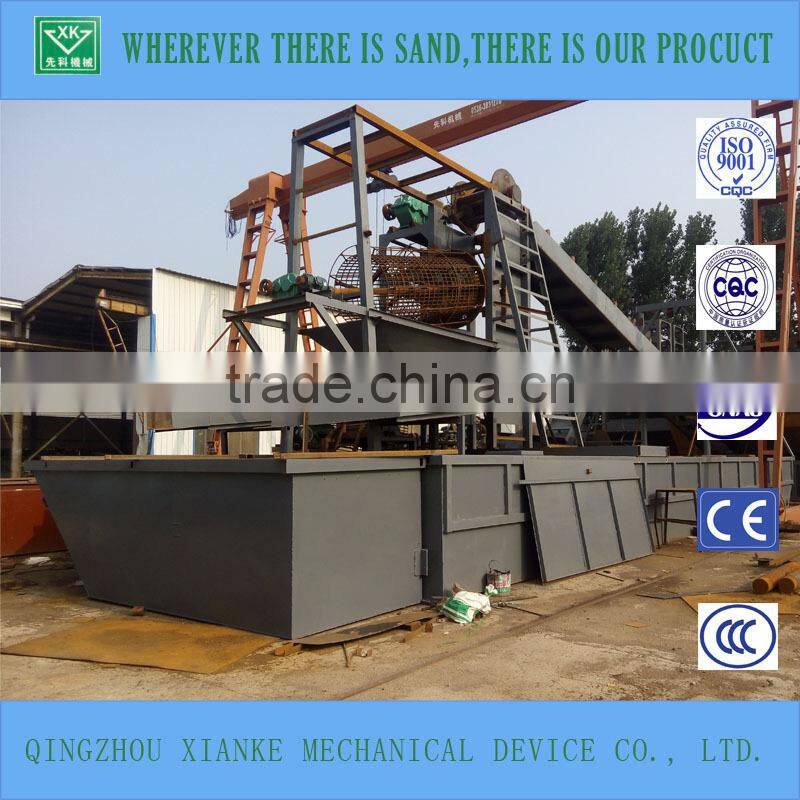

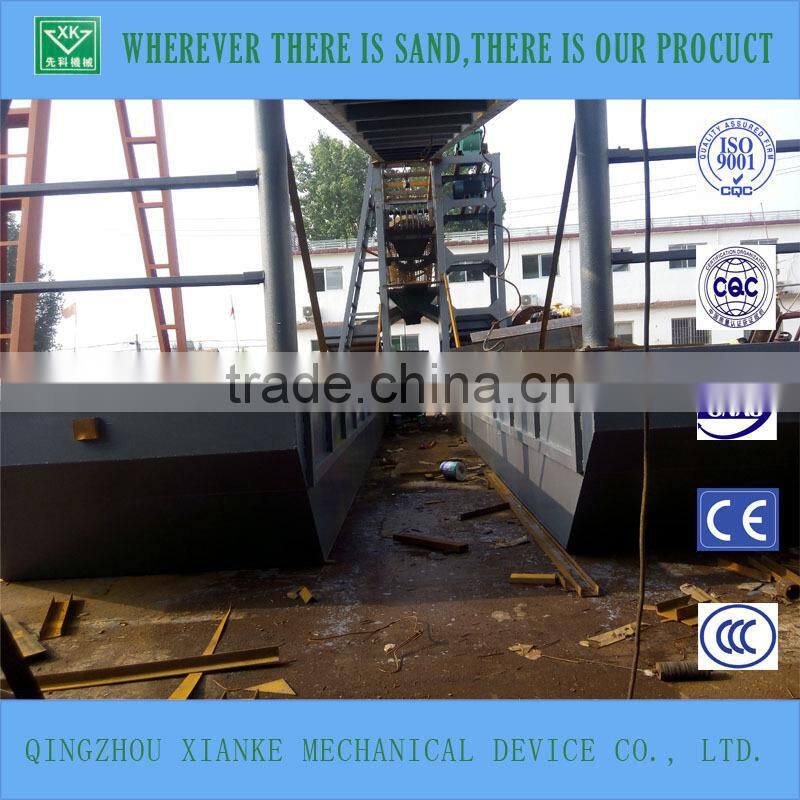

Processing in the workshop
Detailed description:

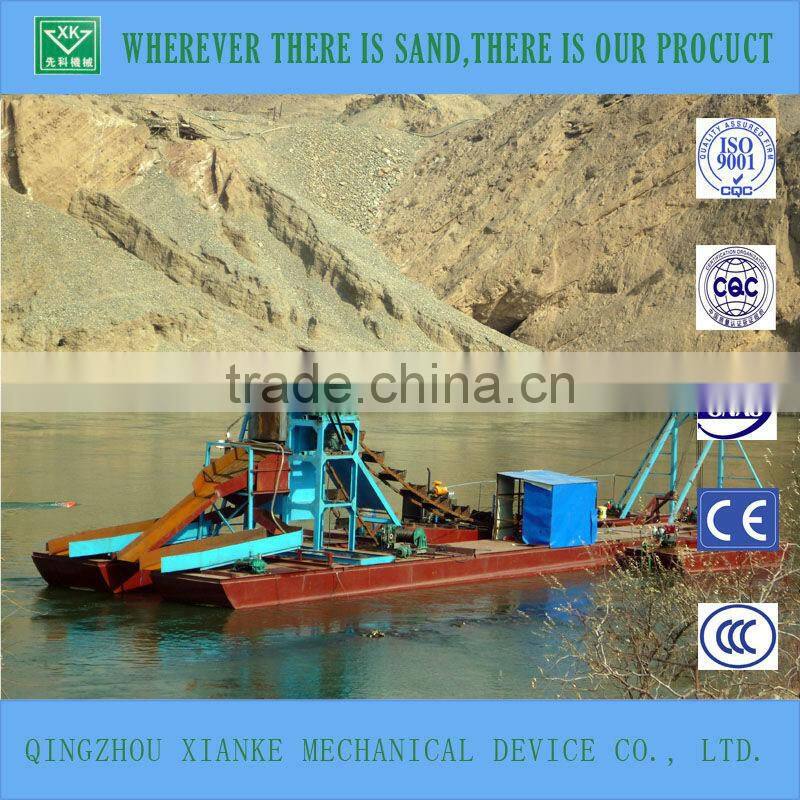

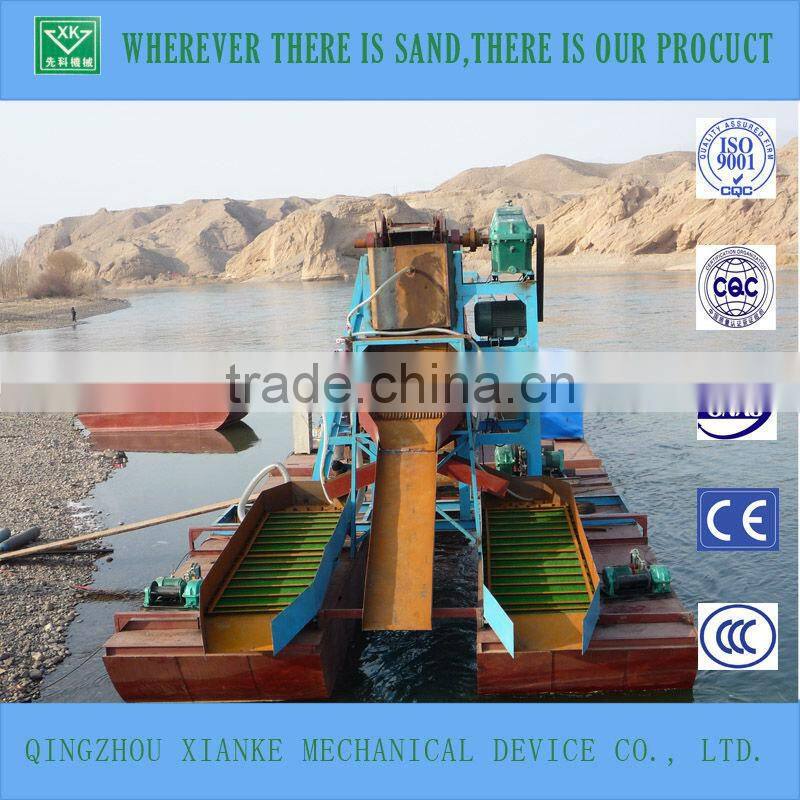

XK series Bucket Gold Dredger is a bucket gold panning equipment, which generally includes mining, washing, selecting, the tailings abandon, water supply, power supply, chute and other equipments.
1. Hull: It is madeof two or three pontoons,which used for installing various equipment, including operating cabin, pump cabin, etc.
2. Mining system:It is madeof the dredging bucket, chain, underwater big arm, upper and lower quadranglewheel, active power, main reducer, main frame and other components. It is mainly used in surface mining operation and ore mining.
3. Mine Selecting Equipment: It is made up of sand trommel screen, gold washing machine, pump, gold selecting chute or centrifugal concentration machine, etc. It is used for the completion of orescreening,washing,conveying, selecting and other operations.
4. The Waste Tailings System: It is madeofconveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
5. The Lifting System: it is madeof gantry, arm lifting winch, anchor winch, sliding winch, etc.. It is used for lifting and falling underwater arm, mooring dredger ,etc.
6.Power System: diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.
Technical parameter:
1 | Hull size | |
| Pontoon length | 16m |
| Pontoon width | 1.8m |
| pontoon height | 0.9m |
| Pontoon quantity | 2 |
| Main frame height | 5.3m |
| Designed draught | 0.4m |
2 | Buckets ladder | |
| Buckets ladder length | 12.6m |
| Bucket quantity | 50 |
| Bucket size | 0.08m³ |
| Power | 22kw |
| Reducer | ZQ750 |
3 | Winch |
|
| Power | 15kw |
4 | Main power |
|
| Model | Generator set 75kw |
| Diesel engine Manufacturer | China Weifang Huayuan Diesel Engine Manufacture Co., Ltd |
| Diesel engine capacity | 75kw |
5 | Drum screen |
|
| Diameter | 90cm |
| Length | 1.5m |
| Power | Electric engine 5.5kw |
| Reducer | ZQ250 |
6 | Gold panning device |
|
| Type | sluice |
| Length | 6m |
| Width | 1.5m |
| Other | Gold plant |
7 | Pump |
|
| Manufacturer | Shandong Boshan |
| power | 7.5kw |
8 | Other |
|
| Distribution box | 1 |

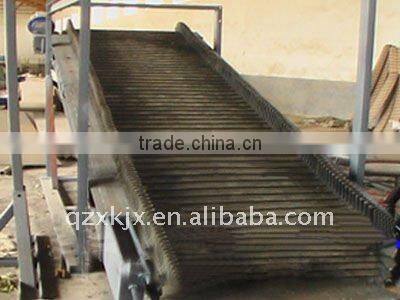

Chains:
Vibrating chute:
Shipping to Qingdao port, Shandong Provence:
Customer visiting:
