Diamond and Gold Mining Equipment Manufacturer
- 10 Set / Sets per Month
- Qingdao
- T/T
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Bucket Dredger | Power Type: | Diesel |
Dredging Depth: | 6 m | Draught: | 45 cm | Place of Origin: | Shandong, China |
Brand Name: | Xianke | Model Number: | XKGD150-6 | Dimension(L*W*H): | 17*5.6*1.0m |
Weight: | 45tons | Certification: | CE | Warranty: | 1YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Qingzhou Xianke Mechanical Device CO,. Ltd.
Our company is a professional manufacturer of dredgers and some related products, such as processing gold ship, sand sucking ship, rusher and so on.
Our products are not only popular in our country, but largely exported to south africa, western africa, philippine, nigeria, Russia, Vietnam, and so on.
The technical options of the dredgers are customized and flexible.
Detailed description
XK series Bucket Gold Dredger is a bucket gold panning equipment, which generally includes mining, washing, selecting, the tailings abandon, water supply, power supply, chute and other equipments.
1. Hull: It is madeof two or three pontoons,which used for installing various equipment, including operating cabin, pump cabin, etc.
2. Mining system:It is madeof the dredging bucket, chain, underwater big arm, upper and lower quadranglewheel, active power, main reducer, main frame and other components. It is mainly used in surface mining operation and ore mining.
3. Mine Selecting Equipment: It is made up of sand trommel screen, gold washing machine, pump, gold selecting chute or centrifugal concentration machine, etc. It is used for the completion of orescreening,washing,conveying, selecting and other operations.
4. The Waste Tailings System: It is madeofconveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
5. The Lifting System: it is madeof gantry, arm lifting winch, anchor winch, sliding winch, etc.. It is used for lifting and falling underwater arm, mooring dredger ,etc.
6.Power System: diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.
Technical parameter
No. | Items | Data |
1 | Hull size | |
| Pontoon length | 17m |
| Pontoon width | 5.6m |
| Pontoon height | 1.0m |
| Pontoon quantity | 2 |
| Designed draught | 0.45m |
2 | Buckets ladder | |
| Ladder length | 13.2m |
| Bucket quantity | 52pieces |
| Bucket size | 0.075m³ |
| Power | 22kw |
| Reducer | ZQ750 |
3 | Winch |
|
| Power | 5.5kw |
4 | Main power |
|
| Model | R6105AZLD |
| Diesel engine capacity | 75kw |
5 | Drum screen |
|
| Diameter | 0.9m |
| Length | 1.3m |
| Power | Electric engine 5.5kw |
| Reducer | ZQ250 |
6 | Gold panning device |
|
| Length | 10m |
| Width | 0.8m |
7 | Pump |
|
| Manufacturer | Shandong Boshan |
| power | 5.5kw |
8 | Other |
|
| Distribution box | 1 |
| Operating cabin | 2m*2.5m*2m |
GOLD GRASS

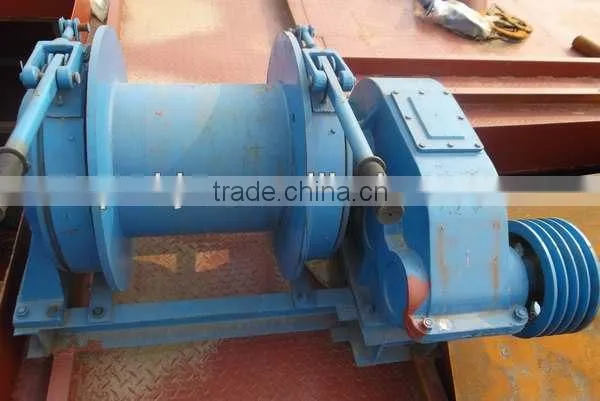

WINCH:
CUSTOMER VISITING AND SIGN CONTRACT
SHIPPING TO BANGLADESH
