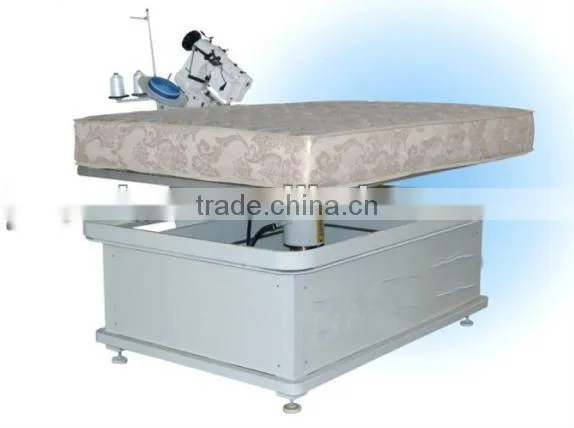

2013 HOT!! (NG-M) Matress Banding Machine

Name: 2013 HOT!! (NG-M) Matress Banding Machine
Brand: Naigu
SKU: 141756100

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Textiles

Packaging Type:

Other, Bare packaging

Foshan City Naigu Plastic Machinery Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Textiles

Packaging Type Other, Bare packaging

Packaging Material Other, mattress

Automatic Grade Semi-Automatic

Driven Type Hydraulic

Voltage 380V

Power 5.5kw

Place of Origin Guangdong, China

Brand Name Naigu

Model Number NG-A

Dimension(L*W*H) 1950*1420*1650mm

Weight 380V

Certification iso9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.manual mattress edge machine.
2.This machine's working table is adopted high-strength independent bearing
3.machine line.

2013 HOT!! (NG-M) matress banding machine

Discription	Size
This machine’s working table is adopted high-strength independent bearing, stable working condition, motor upper and down the height of worktable. The rotary power supply is assembled in the machine. It is equipped with Singer-300U chain sewing head and microcomputer controlling system imported from Japan. It may change walking carriage’s turning speed automatically, which make mattress sewing operation more convenient, fast and the finished turn-flange more beautiful.	Speed of corner: 1-6.8m/min(adjustable)
	Working angle of sewing head: 30°-55°
	Sewing speed: ≤9m/min(adjustable)
	Angle of sewing head: 35°-55°
	Speed of sewing: 6.5m/min(adjustable)
	Efficiency: 20 units/hour
	Mattress Thickness: 100-300mm
	Lifting range of worktable:140mm
	The whole machine dimension: 1950×1420×1650mm
	Worktable size:1420 X 1950 mm
	Moving motor power:0.75KW
	Motor-upper & down power: 0.75KW
	Working Voltage: 3-phase AC 380V
	Weight:520KG
