Colour available: Black, White
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.

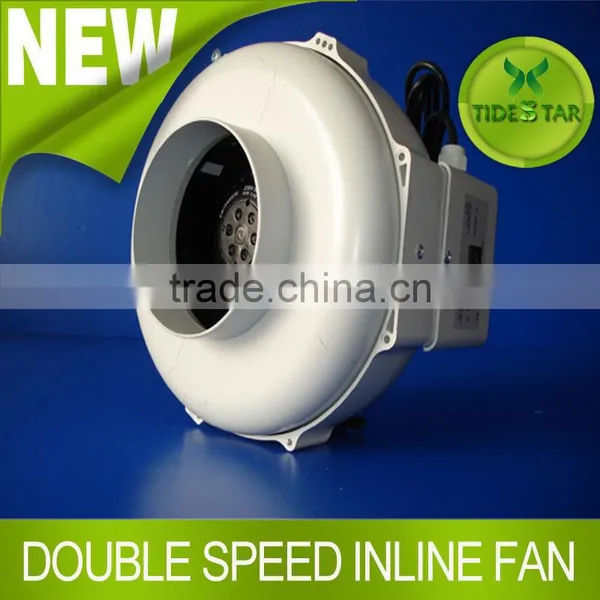

The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
Accessories:It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.
Specific technical parameter:
Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
(HCEU) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 69 | 2590 | 350 | 360 |
Φ125mm | 120 / 230 | 60 / 50 | 71 | 2535 | 440 | 390 |
Φ150mm | 120 / 230 | 60 / 50 | 100 | 2350 | 610 | 430 |
Φ160mm | 120 / 230 | 60 / 50 | 130 | 2580 | 700 | 475 |
Φ200mm | 120 / 230 | 60 / 50 | 190 | 2150 | 1050 | 620 |
Φ250mm | 120 / 230 | 60 / 50 | 195 | 2250 | 1200 | 635 |
Φ305mm | 120 / 230 | 60 / 50 | 245 | 2450 | 1850 | 690 |
Φ315mm | 120 / 230 | 60 / 50 | 250 | 2520 | 1900 | 720 |
