gsm sms temperature monitor data logger S272

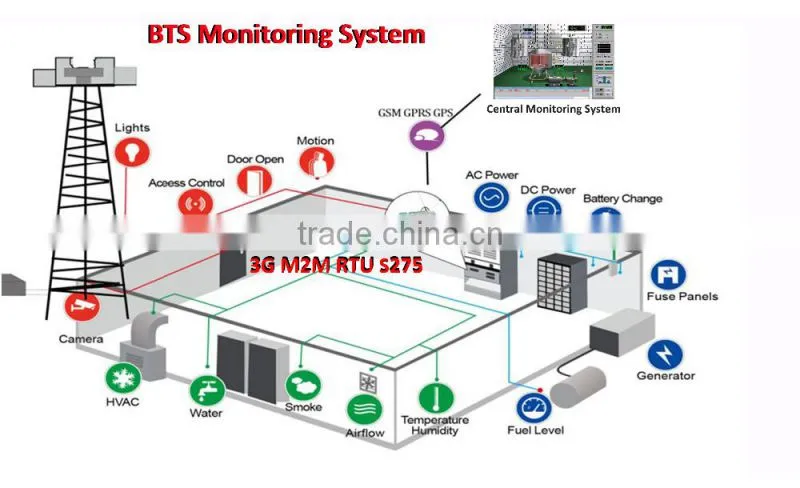

The GSM 3G M2M RTU is a multi I/O port remote terminal unit. It is special for BTS monitoring, remote data acquisition, telemetrically, BTS access control and other applications. It supports voice communication, SMS, GPRS, 3G communications.
The GSM 3G M2M RTU can be used as remote access control; the authorized users can open the gate or turn on the machine with a free charge call at specified time.
The GSM 3G M2M RTU supports Modbus TCP, TCP/UDP protocol, transparent data transmission over GPRS/3G, performs as Modbus Slave.
The GSM 3G M2M RTU is a multi I/O port remote terminal unit, through the RS232/485 port can connect intelligent meters or PLC. It is special for BTS monitoring, remote data acquisition, telemetrically, BTS access control and other applications. It supports voice communication, SMS, GPRS, 3G communications.
>>>>>The GSM Controller S272 can be used as:
The GSM 3G M2M RTU can be used as remote access control; the authorized users can open the gate or turn on the machine with a free charge call at specified time.
The GSM 3G M2M RTU supports Modbus TCP, TCP/UDP protocol, transparent data transmission over GPRS/3G, performs as Modbus Master or Modbus Slave. The RS232, RS485 can be used as transparent data transmission of PLC or intelligent meters.
Mainly Feature OF RTU Controller S272:
1. ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system;
2. Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery;
3. 4G SD card for save historical data, USB port for configuration and upgrade firmware;
4. 6 analog inputs, 12bits, supports 0-5V, 0-20mA, 4-20mA;
5. 4 Relay outputs, 5A/30VDC,5A/250VAC;
6. 8 digital inputs, dry contact or level input. One of the input can be used as counter;
7. 1 temperature probe input, 1 humidity transducer input;
8. I/O ports with opto-isolated, RS232/485 with 15KV ESD protection;
9. 2 IP data centers, supports Modbus TCP,TCP/IP protocol over GPRS/3G network;
10. RS232/485 can be used as data transparent transmission for different intelligent meters or PLC;
11. Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
12. Supports remotely restart the RTU, and configure it by SMS commands remotely;
13. Supports over voltage protection and phase-reversal protection;
14. 10 SMS Alert and auto dial numbers, can program to receive specified alarm message.
15. 10 access control authorized numbers, can open the BTS door or turn on/off machine with a free charge call at the specified time.
>>>>>GSM Controller S272 suitable for:
1. Security Alarm System application;
2. Supervision and monitoring alarm;
3. Automatic monitoring system;
4. Vending Machines;
5. Pumping Stations;
6. Buildings and Real Estate;
7. Weather Stations;
8. River Monitoring and Flood Control;
9. Oil and gas pipelines;
10. Corrosion protection;
11. Valve controls;
12. Wellheads;
13. Energy saving, street lights control;
14. Tanks, temperatures, water leakage;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. PLC and Automation, M2M;
19. Access Control, Gate Opener, etc.

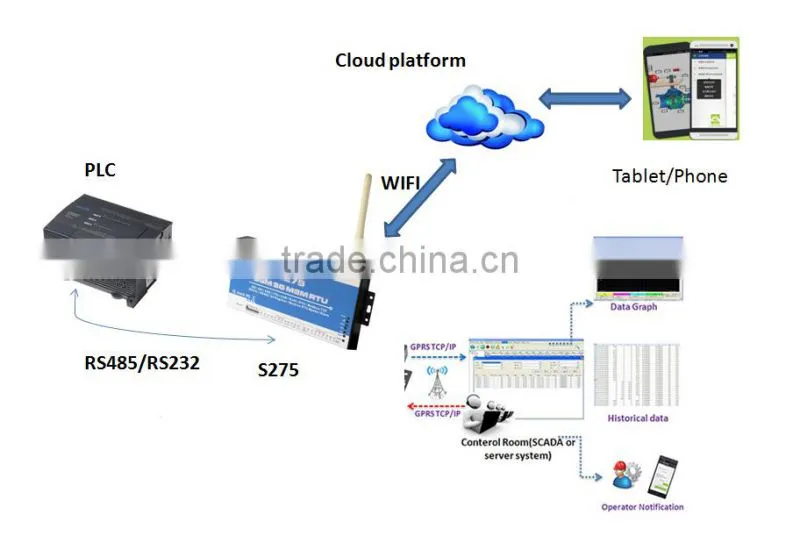

A: I/O port connections, RS232/RS485 extend I/O ports, RS232/RS485 connect Air-Conditioners, Diesel Generator, Power System, and Battery Groups via transparent protocol;
B: Through GPRS or 3G to OMC, the protocol is defined by user of personal.
C: Through GPRS or 3G or RS232 or RS485 to standard SCADA systems. Under this condition, the RTU performs Modbus Slave.
D: Through SMS to control RTU or receive alarm information, or through voice communication to open the door or receive alarm calling.
>>>>>Specifications of Mainframe:
>>Power adapter : DC 12V/1.5A
>>Power consumption: 12V input, Max. 50mA/Average 50mA
>>Frequency : Quad-Band 900/1800/850/1900
>>SIM Card : Supporting 3V SIM Card
>>Antenna : 50 Ω SMA Antenna interface
>>Serial : RS-232C, Default communication parameter 9600,n,8,0,1
>>Temperature: -20-+70 °C
>>Humidity : Relative humidity 95% (condensation free)
>>Output drive voltage: Equal to input DC voltage
>>Output drive power : Drive voltage ≤35V, drive current ≤200mA
>>On state input current: Max. 0.33mA
>>Input signal : Dry contact or 0V-3.3V level signal
>>Exterior dimension: 168mm*113mm*32.3mm
>>Net Weight :1000 g
>>>>>Standard Package list:
S272 M2M RTU Controller unit *1
AC/DC Power adapter *1 (AC100~240V to DC 12V/2A, UK/USA/EU/AU plug available)
CD (PC Programming tool and User Manual) *1
GSM Antenna *1
Connectors *1 set
>>>>>Optional Accessories:
Water Overflow Level Sensor, Oil Overflow Level Sensor, Water Leak Sensor, Temperature Sensor, Door Sensor, PIR Motion Sensor, Smoke Sensor, Gas Leak Sensor, Glass Break Sensor, Shock Sensor, Power failure sensor, etc.
