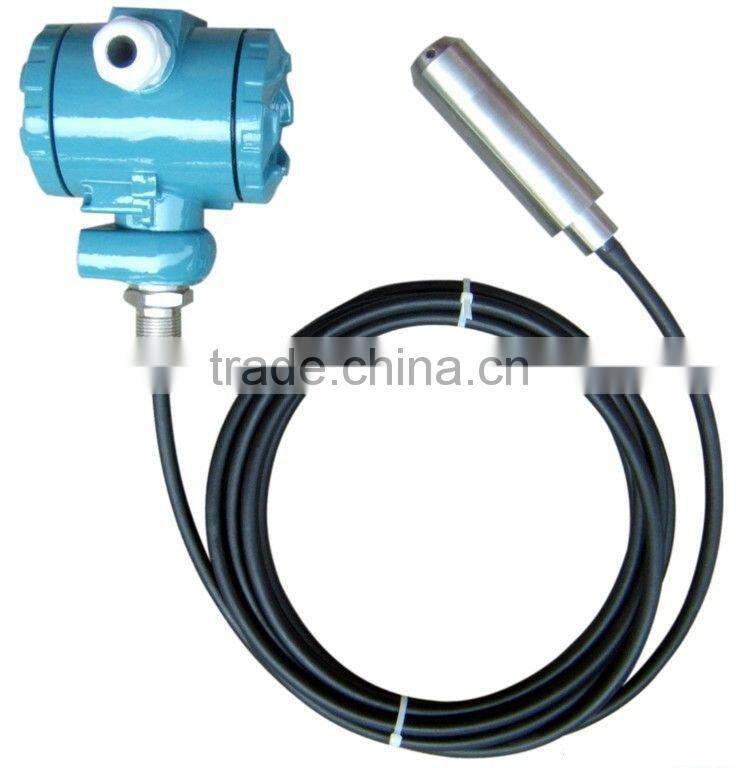

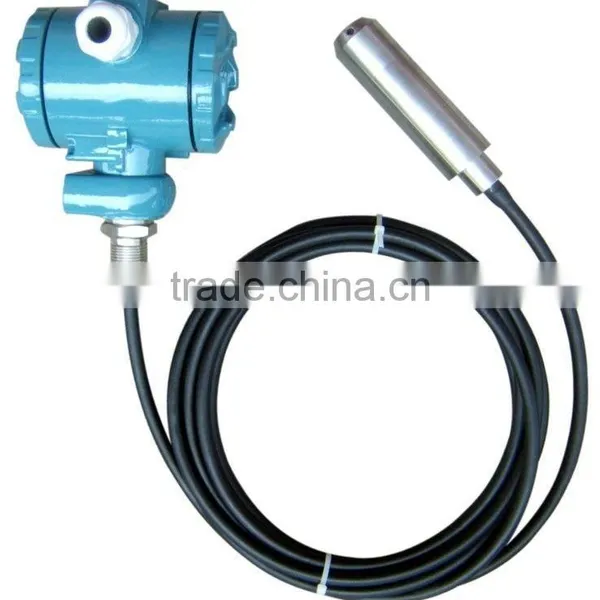

Name:Immersion Hydrostatic Liquid Level Transducer
Model: WLI00
The immersion hydrostatic level transmitter is used to measure the liquid level applications. It is based on the measured hydrostatic proportional to the height of the liquid with the principle, using ceramic piezoresistive effect sensing element and temperature compensation and linearity correction, then covert the hydrostatic pressure to an electrical signal output of 4-20mA DC .
The sensor part can drop into the liquid and the transmitter can be fixed by flange mounted or Bracket, easily to install and use.
Features:
Ø Stability , high precision;
Ø Directly drop into the measured medium, very easy to install and use;
Ø Solid-state structure, no moving parts, high reliability , long life from the water, the viscosity of the oil to a paste can be highly accurate measurements, not measured media bubble, deposition, electrical characteristics;
Ø Wide range of temperature compensation;
Ø Standard 4-20mA DC output for RTU, PLC and acquisition equipments;
Ø Wide range for measurements from 0.3~100m.
Ø With power reverse polarity protection and overload current limit protection .
Specification:
- Ø Measurement range: 0.3~100m;(According to customer requirement.)
- Ø Precision: 0.2Class, 0.5Class, 1.0Class;
- Ø Working Temperature: -20~80°C;
- Ø Output: 2-wire 4~20mA DC ;
- Ø Working Power: Standard is 24VDC (12~36VDC is optional)
- Ø non-sensitive region:≤±1.0%FS
- Ø Load Capacity:0-600Ω;
- Ø IP Rate:IP68

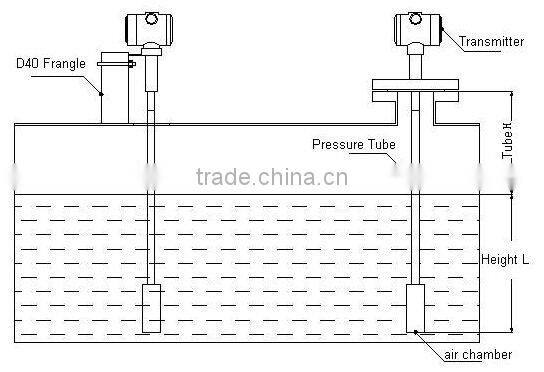

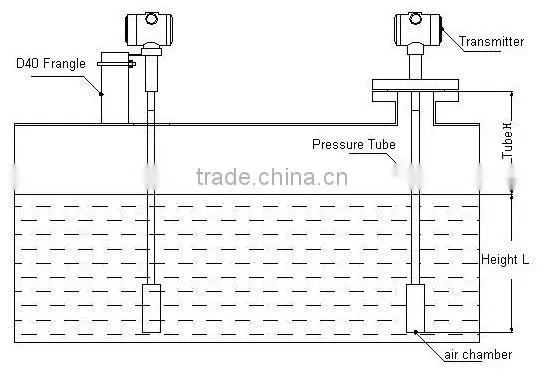

Installation Diagram:
Model Table For Choose:
Model | explanation |
WLI100 | drop-type hydrostatic level Transducer |
Installation Type | Bracket |
Sensor Connection material | Polytetrafluoroethylene(PTFE, F4) |
Explosion-proof Rate | Exia ⅡCT6 |
Display | Non display |
Display current percent(0-100%) | |
LCD with digital display | |
Loading | non |
Installation Height | mm (Provided by buyer) |
Measurement height | mm (Provided by buyer) |
Measurement Liquid density | g/cm3 (Provided by buyer) |
Why KING PIGEON?
King Pigeon is a professional GSM/GPRS/3G wireless Alarm System, GSM elderly alarm,SMS Controller, Industrial Remote Controller, RTU Data Logger, Telemetry, Temperature Measurement Logger, Power Monitoring, M2M products Designer & Manufacturer in China since 2005.
Welcome OEM/ODM Service
Put Your LOGO on Unit and Package Available!
1. How to make sure the quality?
- Process Quality Control
- Final Quality Control
- Outgoing Quality Control
2. How to get the order?
- First,Tell us the model and quantity of the products you want.
- Second ,we will make a PI for you.
- Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
- Fourth, we will send you the goods within the promissory time.
3. How about the Shipping?
- The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost. (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)
- Reference Shipment Cost
For example, ship to Denmark from China.
Weight(Kg) | Shipment Cost | Average Cost for per Kg |
0.5Kg | 22.32USD |
|
1Kg | 28.27USD | 28.27USD |
16Kg | 206.83USD | 12.93USD |
21Kg | 147.13USD | 7.00USD |
31Kg | 210.00USD | 6.77USD |
51Kg | 316.00USD | 6.20USD |
101Kg | 590.00USD | 5.84USD |
201Kg | 1145.70USD | 5.70USD |
- Our recommends:
For samples, ship by Express, usually 3-5days.
While place small order, try to make the finial weight more than 21Kg.
If the order weight less than 100Kg, recommend to ship them by Express.
If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;
If the weight is above 200kgs, recommend to ship them by air cargo or by sea.
- For small order by express, 20-30 pcs per order is the best.
4. What's the delivery time?
- Sample within 1-3days;
- Wholesales 4-7days according different quantities;
- OEM 7-14 days after all info confirmed.
- ODM depends on the detail requirements.
5. What is the warranty of your company?
- 2~3 years warranty for the main unit; one year warranty for the accessories.
- Please send back the defective goods within the warranty period, we will repair them or send you new free.
- Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.
6. Can you do the design for us?
Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
