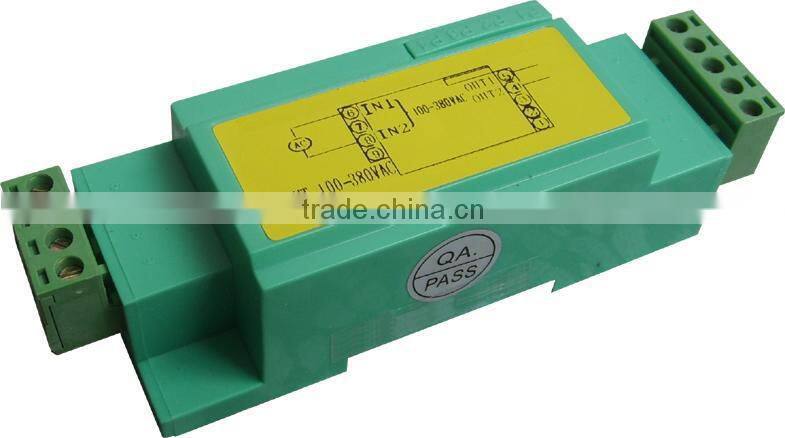

Name: AC Power Voltage Detector
Model: AVD100
The AVD100 is special for monitoring 100~380VAC power voltage status, if detected voltage loss then will output an alarm signal. It is an industrial class, high reliability, low-power consumption, high stability and high precision digital detector.
The AVD100 is used widely as an AC power status monitoring of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
The AVD100 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields.
Specifications:
Ø Input Voltage:100~380VAC,no need external power source to power on it.
Ø Output Type: Dry contact.
when the AC power voltage is normal, the relay will be closed, and the impedance<50Ω;
When the AC Power voltage is failure, the relay will be opened and transmits an alarm signal to alarm units.
Ø Input/output insulation: >2000V
Ø Operating temperature: 0~50°C;
Ø Relative humidity: 0~100%RH.;
Ø Inputs Polarity: Nonpolar;
Ø Output Polarity: Nonpolar;
Ø Dimension: (HxWxD) 98x56x42mm;
Ø Net weight:98g.
