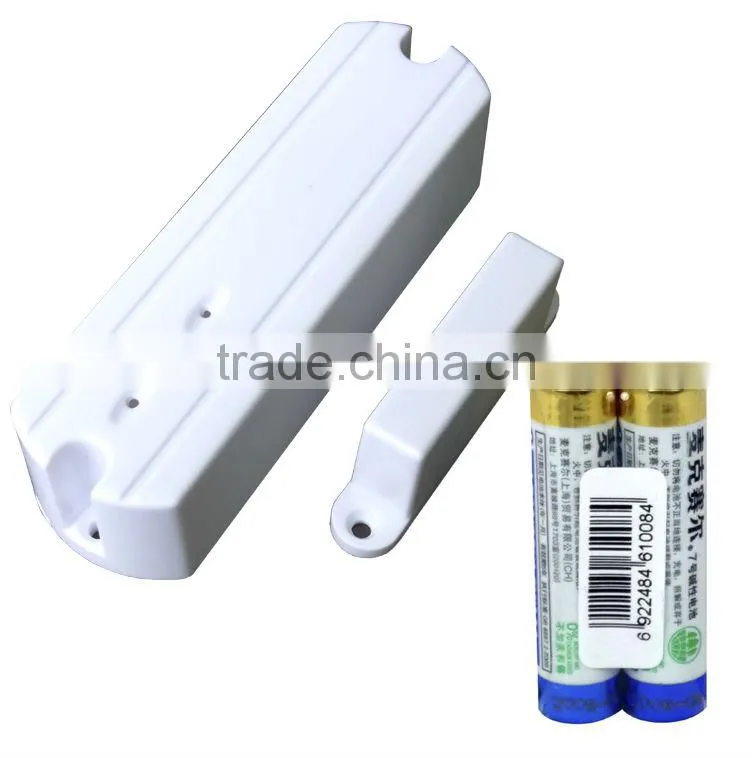

Low cost Wireless Door magnetic contact magnetic door sensor

Gift Box

Specifications

Wireless Internal Antenna Door Magnetic Sensor detect the door open.When any entry the door,this magnetic door sensor know it.

Wireless Internal Antenna Door Magnetic Sensor detect the door open.When any entry the door,this magnetic door sensor know it work by wireless network.Use the normal #7 battery .

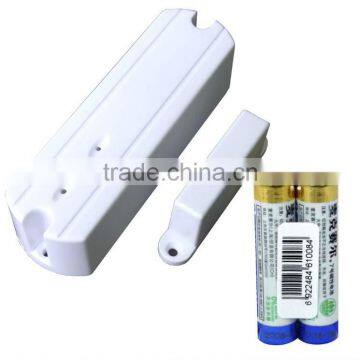

Name: Wireless Door Contact

 Model: DM-100C



The DM-100C is a learning code and low-cost and low power consumption premise protaction unit. It is special for monitoring the door or windows, once the door or windows opened, will activate the DM-100C and send the signal to the alarm panel to alarm. The DM-100C adopt power-saving technology, using #7 battery. when the battery power capacity less than 40% percent, the Low voltage LED indicator will flash to alert the owner.

Moreover, the DM-100C can be used as a wired detector RF transmitter.

Specifications:

Working Voltage: 3V(2 AAAbattery);
Battery Life: About 1 year (counted at 3 times each day);
Wireless Frequency : 433 MHZ
Transmission Range: 100m

Working Current (mA): less than 15mA

Static Current(uA): less than 5uA

Installation Method: Wall-mounted by Screw.

Size: Transmitter part: (HxWxD) 100x30x26mm.  Magnet part: 60X23*10mm

Applications: For indoor use. door or windows, etc.
