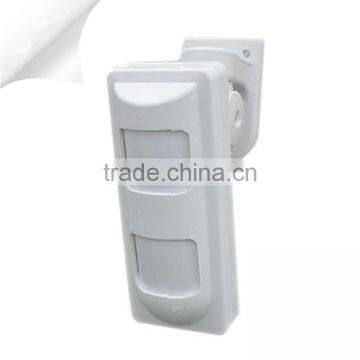

Name: Wireless Outdoor Dual PIR Motion detector PIR-100A KINGPIGEON
Model: PIR-100A
The wireless PIR Motion detector is an INPUT DEVICE, The PIR-100A PIR motion detector is designed to provide detection of criminal intrusion through door frames and window frames into a protected area by sensing infrared energy (heat) emitting from an intruder’s body moving through a protected area. The MOTION SENSOR is commonly referred to as a PIR, which stands for passive Infrared. Upon detection of intrusion, the PIR-100A automatically generates an alarm signal to control panel. The sensor also provides a tamper contact output. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted by means of a bracket.
Product Features of PIR Motion detector
Ø Newly-developed dual element passive infrared sensor unit;
Ø Wireless transmitting digital signal to control panel;
Ø Intelligent logic control, eliminate false alarm;
Ø Low power indication by LED indicator;
Ø Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
Ø Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
Ø Selectable detection sensitivity (standard/high) for different environmental requirements;
Ø SMT adopted, RF and EMI Immunity;
Ø Low power consumption, long battery life;
Ø Adjustable detecting distance.
Specifications of PIR Motion detector :
Operating Voltage | 9V Laminated Battery |
Detection Range | Vertical angle 60degree, Horizontal angle 110 degree, 12m |
Standby Current | less than 25uA |
Alarm Current | less than 22mA |
RF Immunity | > 20 V/m 10 – 1000 MHz |
Sensitivity | > 3300V/W |
Noise(Vp-p) | <200mV, (mVp-p)(25°C) |
Transmitting Freq. | 433.92MHz |
Transmitting Distance | minimum 100m( in the open area) |
Temperature Range | -10°C to +50°C |
Relative Humidity | 90% (25 °C ) |
Installation Mode | Wall mounted by bracket |
Installation Height | 2m |
Housing | High-impact ABS |
Dimensions | 107x59x45mm (HxWxD) |
Applications | For indoor use. Corridor, Office, Room, Museum, Library, Finance Room, Warehouse, etc. |
