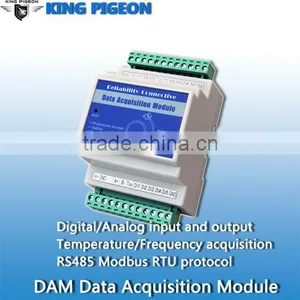

Distributed Data Acquisition Modules Model 2 Analog Input Module thumbnail-2
Distributed Data Acquisition Modules Model 2 Analog Input Module thumbnail-3
Distributed Data Acquisition Modules Model 2 Analog Input Module thumbnail-4
Distributed Data Acquisition Modules Model 2 Analog Input Module thumbnail-5
Distributed Data Acquisition Modules Model 2 Analog Input Module photo-1
Distributed Data Acquisition Modules Model 2 Analog Input Module photo-2
Distributed Data Acquisition Modules Model 2 Analog Input Module photo-3
Distributed Data Acquisition Modules Model 2 Analog Input Module photo-4
Distributed Data Acquisition Modules Model 2 Analog Input Module photo-5
US$ 1 - 10 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kingpigeon
Model Number:
DAM 100
Contact Supplier Request Quote Chat Now
Shenzhen King Pigeon Communication Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Kingpigeon
Model Number DAM 100

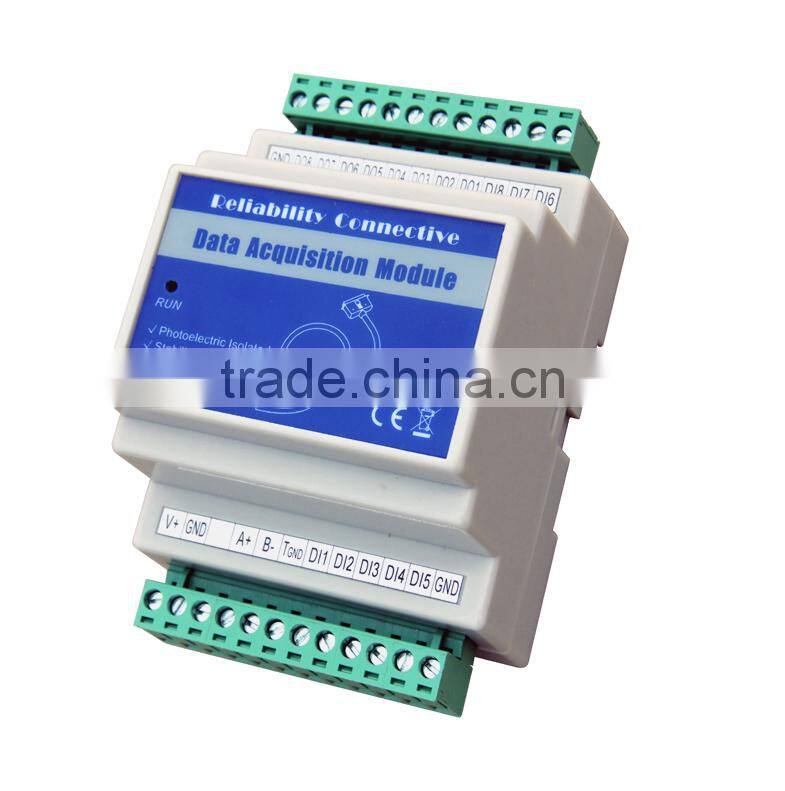

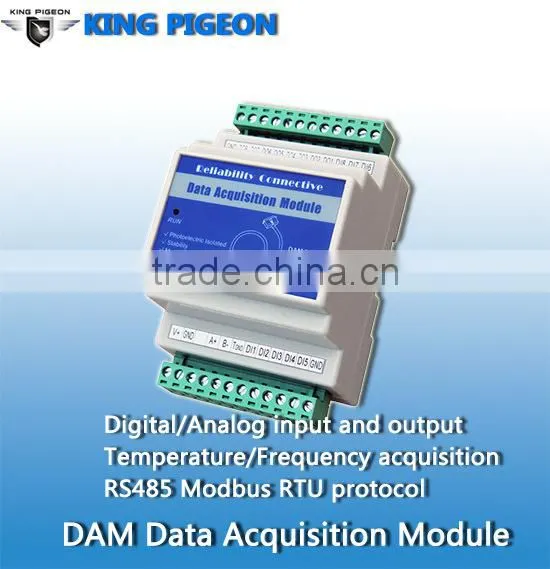

Name:Distributed Data Acquisition Modules model 2 Analog input module



Model:DAM100



   The DAM100 is for monitoring 2 analog inputs(0~20mA,4~20mA,0~5V,0~10V, or AC and DC 0~5A, 0~500V). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.

Distributed Data Acquisition Modules model 2 Analog input module





    The DAM100 is for monitoring 2 analog inputs(0~20mA,4~20mA,0~5V,0~10V, or AC and DC 0~5A, 0~500V). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.

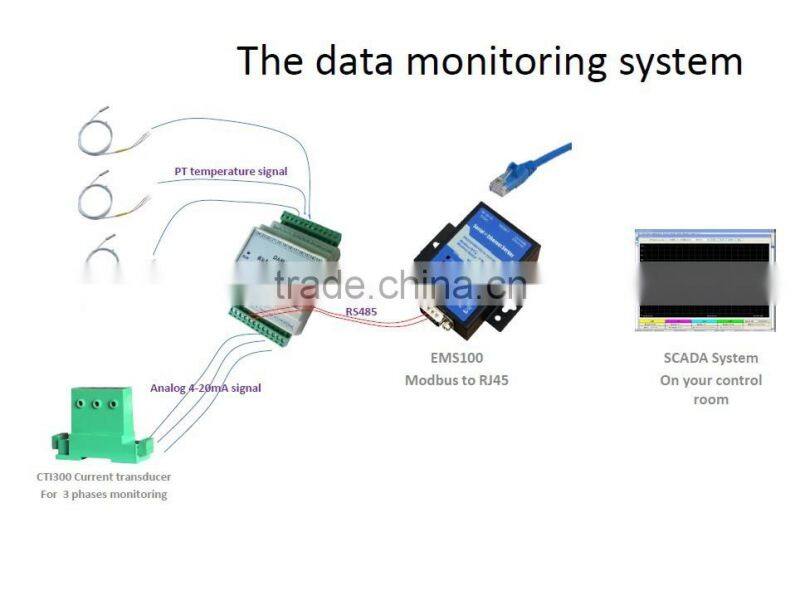

    The DAM100 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.





    The DAM100 is an industrial class, isolated design, high reliability, low-power consumption, high stability and high precision data acquisition module.



    The DAM100 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.

Distributed Data Acquisition Modules model 2 Analog input module





Mainly Features:



Ø  16-bit resolution high precision AD acquisition and data processing techniques;

Ø  2 analog input, can be 0~20mA,4~20mA,0~5V,0~10V or AC and DC 0~5A, 0~500V;

Ø  Wide range power supply with reverse polarity connection protection;

Ø  Modbus RTU Protocol;

Ø  ESD Protection circuit for RS485 serial port;

Ø  Using industrial-grade chips;

Ø  Built-in watchdog ensure it reliability;

Ø  Lightning protection ensure it stability;

Ø  LEDs for status indication makes it easy to program in filed.



 Distributed Data Acquisition Modules model 2 Analog input module





Specifications:



Items

Specifications

Rated Power Input

10~30VDC(Peak Voltage must≤40V)

Power Consumption

Typically ≤3W

Communication Protocol

Modbus RTU

Modbus Address

1~247

Data Format

n,8,1; e,8,1; o,8,1 or n,8,2

Communication Interface

RS485

Baud Rate

1200, 2400, 4800, 9600Bps

Analog Input

Default: 4~20mA, optional: 0~20mA, 0~5V, 0~10V, 0~5A, 0~500V

Update Period

0.1~1S

Measurement Precision

±0.2%FS

Input Resistance

Analog channel: Voltage:>1KΩ, current ≤150Ω

Overload Capacity

1.2 times can sustained,3 times voltage can last 1 second.

Isolated Type

2500VDC Input / power / RS485 Serial port isolated.

Withstand Tests

Input /Shell: 2000VAC/min.; 500VDC>100 MΩ

Installation Type

35mm DIN Rail

Operation Temperature

-20~70℃;

Storage Temperature

-40~85℃;

Relative Humidity

5~95%RH.;(at -40℃, non condensate)

Altitude

0~3000m

Temperature Drift

≤100ppm/℃

Dimension

118×36×59mm mm(HxWxD)

Net Weight

160g.



 Distributed Data Acquisition Modules model 2 Analog input module


Packing:
DAQ main unit x1
Dimensions: 58 x 35 x 30mm
Weight: 0.25kg
