24v 200w Electric Bike Motor Conversion Kit(JD-EB-24)

Golden Island Machinery Co., Ltd.

US$ 100 - 300 MOQ: 1 Set

Key Specifications

Voltage:

24V

Design:

Brushless

Wattage:

100 - 200w

Payment & Shipping

Payment Methods:

Port of Shipment:

Shang Hai

Delivery Detail:

Delivery time depends on order quantity.

Voltage 24V

Design Brushless

Wattage 100 - 200w

Specifications

Long working life,Low noise, high torque,Excellent performance characteristics,High efficiency,High reliability,Low price

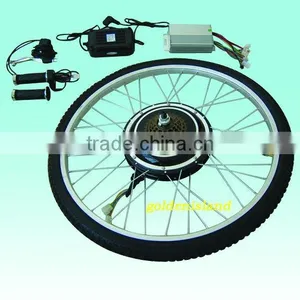

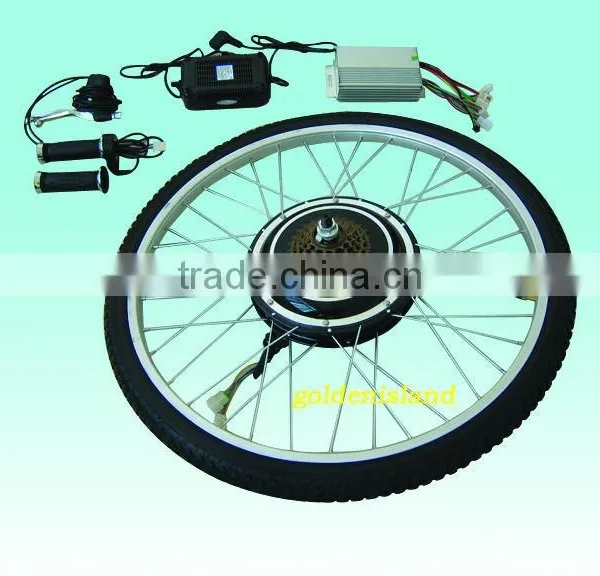

The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness( The battery is optional components)
Travel ranges: 38 km/24V12AH or 50km/24V16AH battery pack
Speed: 0-45km/h
Suitable bike frame: 100mm front fork,or 135mm rear fork spacing
Double wall rim special for e-bike
Motor Specifications: 24Vdc/200W/320rpm(front wheel) or 24V/200W/430rpm(rear wheel)
Quiet and Reliable Brushless Motor
Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg

Model NO:	JD-EB-24
Voltage(V)	24v
Motor power (BLM dc motor)	200w ,250w 350w,,500w
Wheel size	16",18",20",24",26",700C,28"
Battery	24v/10Ah Lithium battery
Charger	AC100v-240v charger
Use Hour per Charge	4-6 hours
Controller	Intelligent brushless.(200w)
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Maximum speed	25km/h(EU),32km/h(USA&Canada)
Maximum speed	45km/h with 24v/16Ahli-ion battery(PAS)
Gross weight	12.0kgs
Net weight	10.5kgs
Container load	350pcs/20ft container,750pcs/40ft container
Packing size	75cm x 75cm x 28cm (29.53in x 29.53in x 11.02in)
