36v 500w Electric Bike Motor Conversion Kit

Golden Island Machinery Co., Ltd.

US$ 100 - 145 MOQ: 1 Set

Key Specifications

Voltage:

36V

Design:

Brushless

Wattage:

> 400w

Payment & Shipping

Payment Methods:

Port of Shipment:

Shang Hai

Delivery Detail:

Delivery time depends on order quantity.

Voltage 36V

Design Brushless

Specifications

Long working life,Low noise, high torque,Excellent performance characteristics,High efficiency,High reliability,Low price

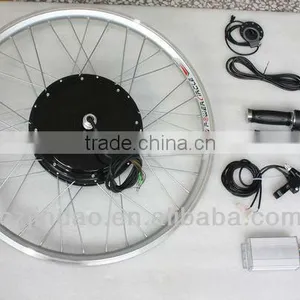

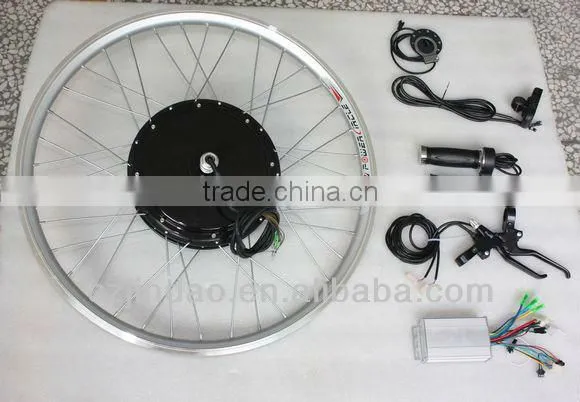

The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness( The battery is optional components)
Travel ranges: 38 km/36V12AH or 50km/36V16AH battery pack
Speed: 0-45km/h
Suitable bike frame: 100mm front fork,or 135mm rear fork spacing
Double wall rim special for e-bike
Motor Specifications: 36Vdc/500W/320rpm(front wheel) or 36V/500W/430rpm(rear wheel)
Quiet and Reliable Brushless Motor

Model NO:	JD-EB-24	JD-EB-36	JD-EB-48
Voltage(V)	24v	36v	48v
Motor power (BLM dc motor)	200w ,250w 350w,,500w	200w, 250w ,350w 500w, 750w	200w ,250w ,350w, 500w ,1000w
Wheel size	16",18",20",24",26",700C,28"	16",18",20",24",26",700C,28"	16",18",20",24",26",700C,28"
Battery	24v/10Ah Lithium battery
	36v/10Ah Lithium battery
	48v/10Ah Lithium battery
Charger	AC100v-240v 2amples smart charger
Use Hour per Charge	4-6 hours
Controller	Intelligent brushless.(200w,250w,350w,500w,750,1000w)
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Maximum speed	25km/h(EU),32km/h(USA&Canada)
	45km/h with 36v/10Ahli-ion battery(PAS)
Gross weight	12.0kgs
Net weight	10.5kgs(with 24v/10Ah battery)
Container load	350pcs/20ft container,750pcs/40ft container
Packing size	75cm x 75cm x 28cm (29.53in x 29.53in x 11.02in)
