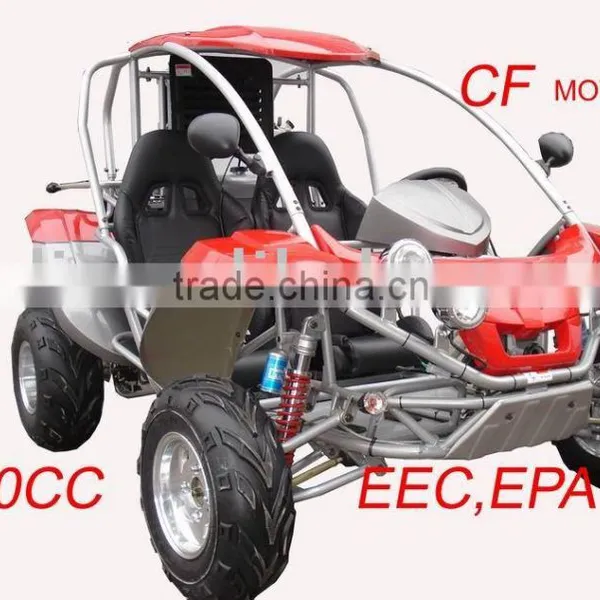

Help CenterCF MOTOR 4X2 GO KARTS
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RENLI
Model Number:
RLG1-250DS
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
RENLI
Model Number
RLG1-250DS
Type
Pedal Go Karts
Certification
EEC
Engine
CF MOTO
Drive Mode
SHAFT
Wheel Size
21*7-10/24*11-10
Oil Tank Capacity
9.0L
Maximum Speed
70KM/H
Displacement
244.3ML
Brake Type
DISK BRAKE
Engine Capacity
201-500cc
Specifications
GO KARTS1.CF MOTOR :single cylinder 4 -stroke water cooled
2.padel contral buggy
3.patent out look
GO KARTS
| RLG-250(shaft drive) Specifications | |
| DIMENSION AND WEIGHT | |
| Model | RLG1-250DS(shaft drive) |
| LxWxH | 2,430x1,565x1,565 mm |
| WheelBase | 1650 mm |
| Front/Rear tread | 1345/1175 mm |
| F/R Net Weight | 150/195 KG |
| Total Net Weight | 330KG |
| Seat | 2 seat |
| Height of seat | 500 mm |
| Ground clearance | 290 mm |
| ENGINE | |
| Type | CF172MM |
| Automatic | forward gears,parking,and reverse gear |
| Displacement | 250 CC (Cubic Centimeter) |
| Cylinder Number | SINGLE |
| Cycle/Cooling | 4-STROKE/ WATER-COOLED |
| Cylinder Bore | φ 72 mm |
| Cylinder Stroke | 60 mm |
| Fuel | RQ-90 UNLEADED |
| Power max | 11 kw/7000rpm |
| Torque max | 17.6N-M/5500rpm |
| Compression Ratio | 10:01 |
| Ignition | CDI (CondenserDiodeIgnite) |
| Start mode | Electronic start |
| Gas tank capacity | 9.0L (Liter) |
| Engine oil capacity | 1.0L |
| Spark plug | C7HSA(NGK) |
| Lubrication mode | Force and splash |
| PERFORMANCE | |
| Top Speed | 70km /h |
| Fuel Consumption | 354g/kW.h |
| Hill Climb | 18 ° |
| Max Load capacity | 150kg |
| CHASSIS | |
| Front/Rear Brake | DOUBLE HYDRAULIC DISC |
| Front Tyre | 21X7-10 off-road /175Kpa |
| Rear Tyre | 24X11-10 off-road /255Kpa |
| TRANSMISSION | |
| Transmission | Dual independent shaft drive |
| Variation | Automatic C.V.T with reverse |
| Others | |
| Frame | STEEL TUBE |
| Shox | Hydraulic shox |
| Front Suspension | Dual A ARM with 70mm of distance |
| Rear Suspension | SWING TYPE with 90mm of distance |
| Headlight | 12V 55W |
| Taillight | 12V LED |
| Headlight | with CE |
| Rearview mirrow | with CE |
| Packing | |
| Outer packing | Steel frame and carton |
| Dimension | 2,300X1,460X880mm |
| Qty/20TEU | 8pcs |
| Qty/40HQ | 24pcs |
| Optional parts | |
| Color:Red,yellow,orange,blue,silver,black,white | |
| Off-road tyre | Road tyre |
| Aluminum hub | Steel hub |
| Suitable for use on land, sandlot, lawn and beach | |
