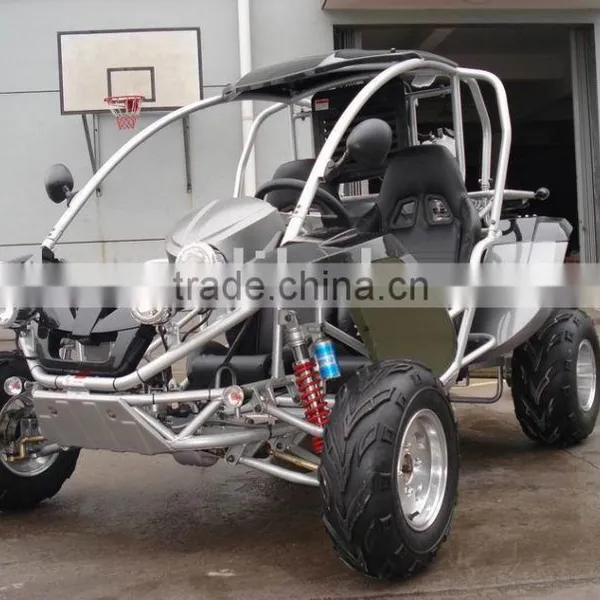

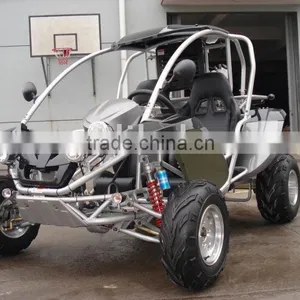

250CC Automatic Buggy/EEC BUGGY

FOB Price

Negotiable / Set

3 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Renli
Model Number	RLG1-250DS-2(250CC black buggy)	Type	Pedal Go Karts
Certification	EEC	Engine	1 cylinder, 250cc,water-cooled, 4-stroke,automatic with reverse
Drive Mode	shaft	Wheel Size	21x7-10/22x10-10
Oil Tank Capacity	9.0L	Maximum Speed	70km/h
Displacement	244.3ml	Brake Type	hydraulic DISC brake
Engine Capacity	201-500cc

automatic buggy
1.CF MOTOR :single cylinder 4 -stroke water cooled
2.padel contral buggy
3.patent out look

automatic buggy

Spec:

RLG1-250DS-2

Detail:

Specifications
1	Engine type	1 cylinder, 250cc,water-cooled, 4-stroke,automatic with reverse
2	max Power	11KW/6,000r/min
3	displacement	244ml
4	Max. torque	17.6N.m/5,500r/min
5	Max. speed	70Km/h
6	Max.load capacity	150kg
7	Min.turning radius	7m
8	start mode	electronic start
9	transmission mode	chain drive
10	Break type	front/rear hydraulic DISC brake foot control
11	Front suspension	dual A-arm with 70mm of travel
12	Rear suspension	spring over shock with 90mm of travel
13	Power source	Battery 12V12AH
14	fuse	15A
15	Ignition	CDI
16	Fuel	RQ-90(unleaded)
17	Gas tank capacity	9.0L
18	Engine oil capacity	1.0L
19	Lubrication	force and splash
20	Starting	≤15s
21	Compression proportion	10.0:1
22	Parking trig	mechanical lock
23	spark plug	C7HSA(NGK)
24	spark gas	0.6~0.7mm
25	climbing degree	12°
26	headlight	12V 55W
27	Taillight	12V LED
28	lubricate oil brand	SAE15W-40/SF
29	distance between wheels	front:1,345mm rear: 1,175mm
30	ground clearance	190mm
31	product dimensions	2430×1565×1565mm
32	rearview mirror	with CE
33	headlight	2 headlight with CE
34	shox	hydraulic shox front and rear

	outer packing
	packing method	steel frame , carton
	carton dimensions	2,300×1,460×880mm

	conveyance:
	Qty/20'TEU	8 pcs
	Qty/40'HQ	24 pcs

	Optional parts
1	color	red, yellow, orange, blue, silver, black, white
2	wheel hub	steel hub / aluminum hub
3	front/rear tire	road tyre / off-road tyre
