Transmission System Chain Drive
Certification Other, EPA, EPA
Brand Name shenke,jonway,jmstar
Model Number SK150ATV-3
Displacement 150cc
Transmission Type Automatic
Engine Type 4 Stroke

Specifications

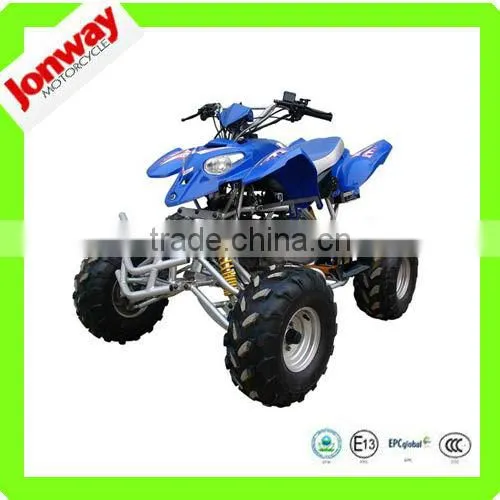

150cc atv automatic

Colors available:
Engine type:     4-Stroke, single cylinder
Engine brand: 1P57QMJ
Displacement: 149.6ml
Cooling:   Air-cooled
Max horsepower: 6.5kw/7500rpm
Max torque: 8.3n.m/6000r/min
Bore*stroke:    57.4*57.9mm
Max speed:   55km/h
Climbing ability:   15degree
Ignition:        C.D.I
Starting system: Electric + kick start
Battery:  12V/9Ah
Carburetor brand: PZ30
Engine oil:   15W/40SF
Gear oil:   15W/40SF
Clutch: Automatic
Transmission:   1-speed+reverse
Driveline:   Chain
Driving wheel:    Rear wheel force
Suspension, front/rear:   Double a-arm/single a-arm
Brakes, front/rear:       Drum /Disc
Brake operation:     Hand
Tires, front/rear:     19.0*7.0-8/18*9.50-8
Fuel capacity/type:    4.8L
Weight, G.W./N.W:   185kgs / 165kgs
OA L*W*H: 1730*1170*1140mm
Height to seat:      850mm
Min ground clearance: 110 mm
Carton size:   1470*865*860mm
Shipping info.:      63/40' HQ
Colors available:
Engine type:     4-Stroke, single cylinder
Engine brand: 1P57QMJ
Displacement: 149.6ml
Cooling:   Air-cooled
Max horsepower: 6.5kw/7500rpm
Max torque: 8.3n.m/6000r/min
Bore*stroke:    57.4*57.9mm
Max speed:   55km/h
Climbing ability:   15degree
Ignition:        C.D.I
Starting system: Electric + kick start
Battery:  12V/9Ah
Carburetor brand: PZ30
Engine oil:   15W/40SF
Gear oil:   15W/40SF
Clutch: Automatic
Transmission:   1-speed+reverse
Driveline:   Chain
Driving wheel:    Rear wheel force
Suspension, front/rear:   Double a-arm/single a-arm
Brakes, front/rear:       Drum /Disc
Brake operation:     Hand
Tires, front/rear:     19.0*7.0-8/18*9.50-8
Fuel capacity/type:    4.8L
Weight, G.W./N.W:   185kgs / 165kgs
OA L*W*H: 1730*1170*1140mm
Height to seat:      850mm
Min ground clearance: 110 mm
Carton size:   1470*865*860mm
Shipping info.:      63/40' HQ
