Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Transmission System:
Chain Drive
Certification:
Other, EPA, EPA
Brand Name:
shenke,jonway,jmstar
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Transmission System Chain Drive
Certification Other, EPA, EPA
Brand Name shenke,jonway,jmstar
Model Number SK200ATV-2
Transmission Type Manual
Engine Type 4 Stroke
Displacement 200cc

Specifications

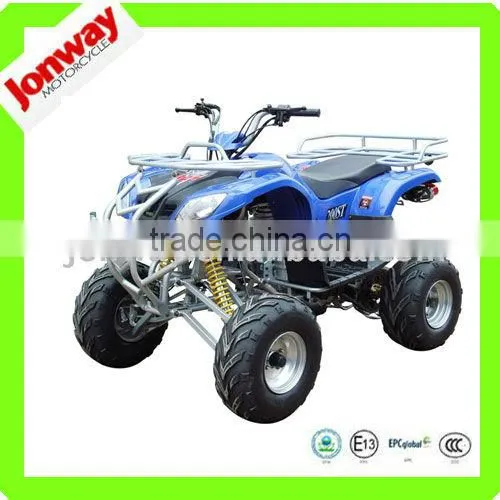

200cc atv water cooling

Engine type : CG  200
Engine brand : ZONGSHENG
0, 283, 214, 1, 0, 161, 214, 17
Displacement :
200cc
Cooling : Water cooled
Max horsepowe : 11 kW /6750(r/min)
Max torque : 15.5Nm/6500(r/min)
Bore*stroke : 63.5*62.2
Max speed : 70km/h
Climbing ability : 20degree
Ignition : C.D.I
Starting system : Electric
Battery : 12V9Ah
Carburetor brand : PZ30
Engine oil : SAE15W/40SF
Clutch : Manual
Transmission : 4-speed+reverse
Driveline : Chain-drive
Driving wheel : Rear wheel drive
Suspension,front/rear : Double a-arm/single a-arm
Brakes,front/rear : Drum /Disc
Brake operation : Hand
Tires,front/rear : 19.0*7.0-8/18*9.50-8
Fuel capacity/type : 4.8L
Weight,G.W./N.W : 180/165KG
Max load : 140kg
Wheel base : 1115m
OA L*W*H : 1700*1130*1100mm
Height to seat : 840mm
Min ground clearance : 104mm
Carton size : 1470*865*860mm
Shipping info : 12/20GP,24/40GP,39/40HQ
