Body Parameters: | |
Dimension |
3160×1720×1150mm |
Wheel Base |
670×670×670mm |
Track |
1420mm |
Minimum Ground Clearance |
180mm |
Curb Weight |
750kg |
Rated Load |
On Land:500kg(6 People) On Water:300kg(4 People) |
Performance Parameters: | |
Start Mode |
Key |
Ignition Mode |
EFI |
Battery Specification |
12V/60Ah |
Drive Mode |
On Land: All-wheel Drive On Water: All-wheel Drive or Outboard Drive |
Top Speed |
On Land:45km/h On Water: 5km/h(Tyre Stroke)or 12km/h(15HP Outboard) |
Minimum Turning Radius |
0.71m |

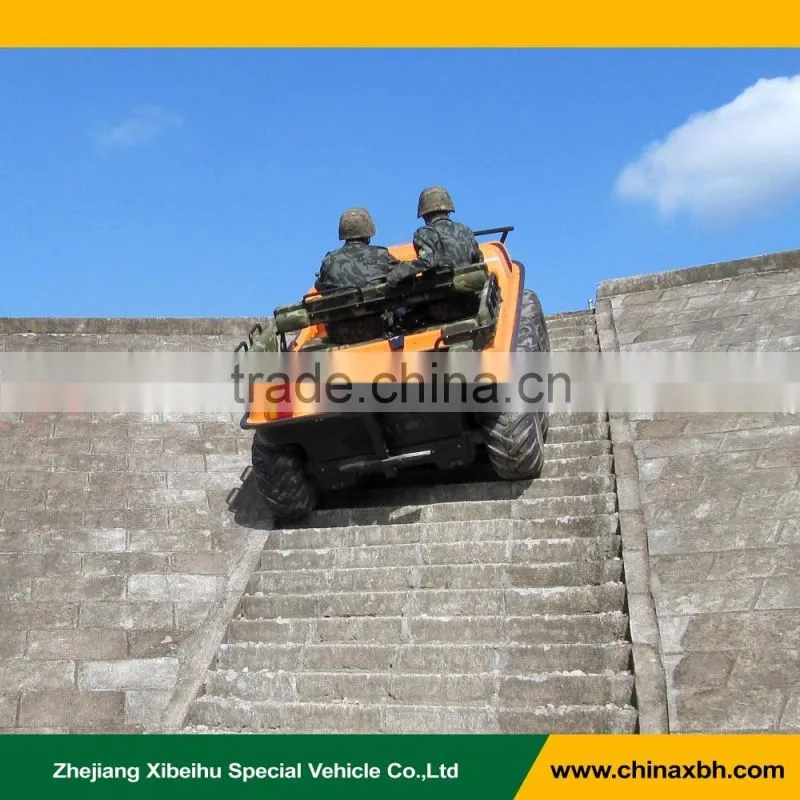

Maximum Climbing Angle |
32 º |
Approach Angle |
54 º |
Departure Angle |
57 º |
Brake Mode |
Caliper Hydraulic Brake |
Tyre Specification |
25×12(11.5)-9NHS |
Tyre Pressure |
5-7psi (34.5-48.3kPa) With Track: 3-5psi(20.7-34.5kPa) |
Transmission Mode |
Belt and Chain Transmission |
Dynamic Parameters: | |
Engine Model |
SQR372 |
Engine Type |
Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC |
Oil-supply Mode |
MPI |
Cylinder Diameter ×Stroke |
3-72×66.5mm |
Displacement |
812ml |
Compression Ratio |
9.5:1 |
Rated Power and Turning Speed |
39kW(6000r/min) |
Max. Torque and Turning Speed |
70N·m(3500~4000r/min) |
Idle Speed |
900±50r/min |
Lubricating Mode |
Pressure and Splash Lubrication |
Cooling Mode |
Forced Circulation and Antifreeze Coolant |
Clutch System |
CVT |
Transmission Type |
CVT+2 Forward Gears, Neutral, Reverse Gear |
Fuel Type |
|
Oil Tank Capacity |
38L |
Others: | |
Optional Equipment: Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Outboard Motor, Track, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Convertible Top, Utility Storage Pouch, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough, Breakwater Board etc. | |
Performance Characteristics: 8×8 All Wheel Drive, Braking Differential Steering, CVT, 32 Degree Climbing, 360 Degree Turning on the Ground, 1 Meter Wide Trenches Across, ±40 ℃ Temperature Work and Full-sealed High Strength Vehicle Body etc. | |
Certificate: CE certificate, CCS certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate. | |
Functionality: Rescue, Exploration, Hunting, Fishing, Tourism, Entertainment etc. | |
Application Scope: All Terrains such as Swamp, Beach, Non-paved Road; Rivers, Lakes and other Calm Waters ( 4 grade water); Hills, Snow Land, Forest, Desert etc. | |
