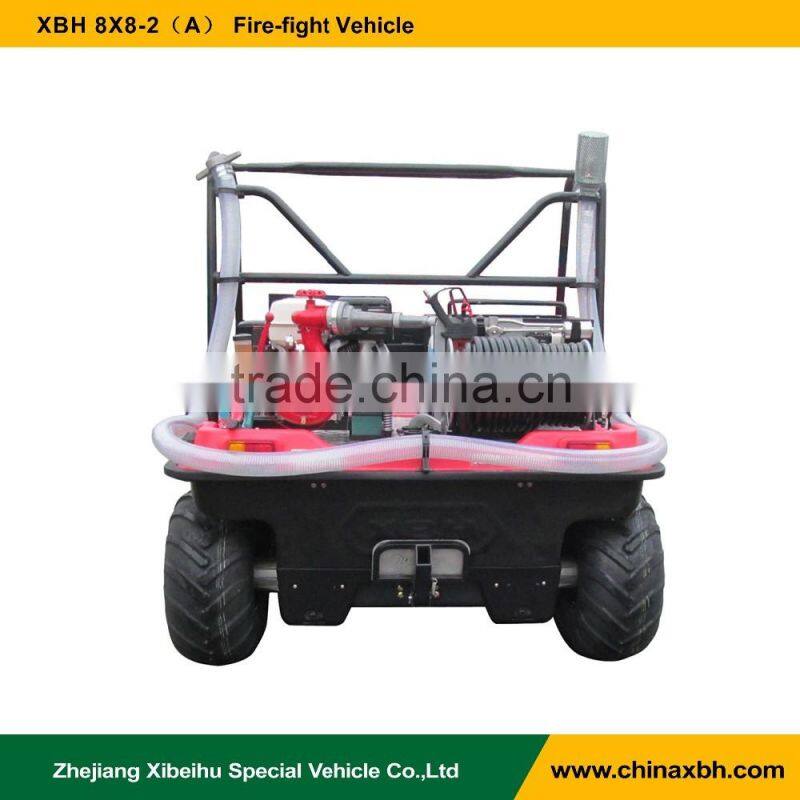

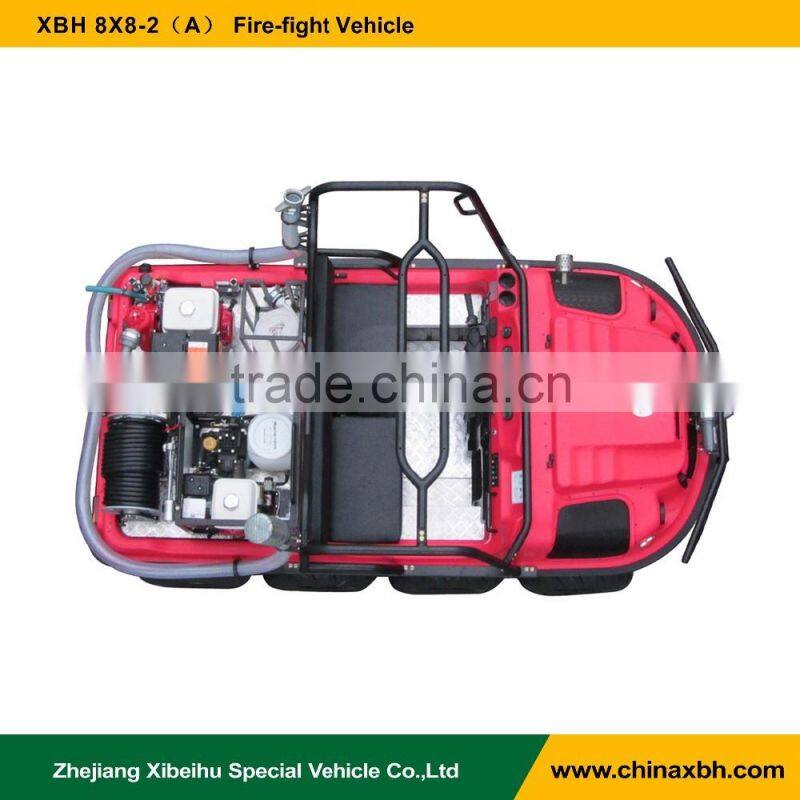

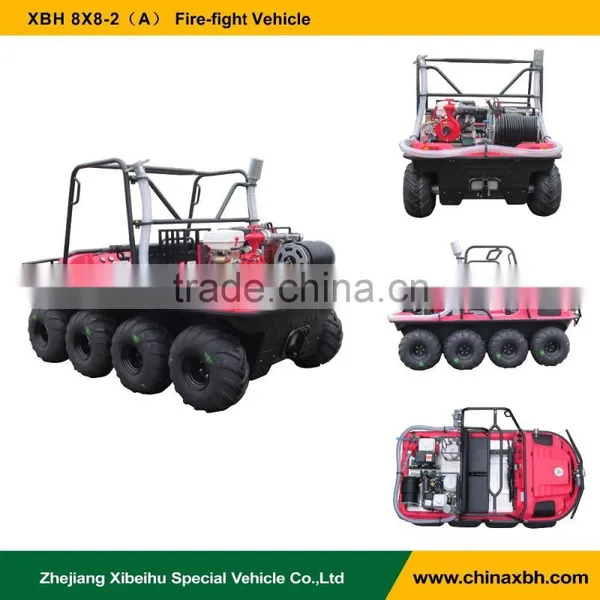

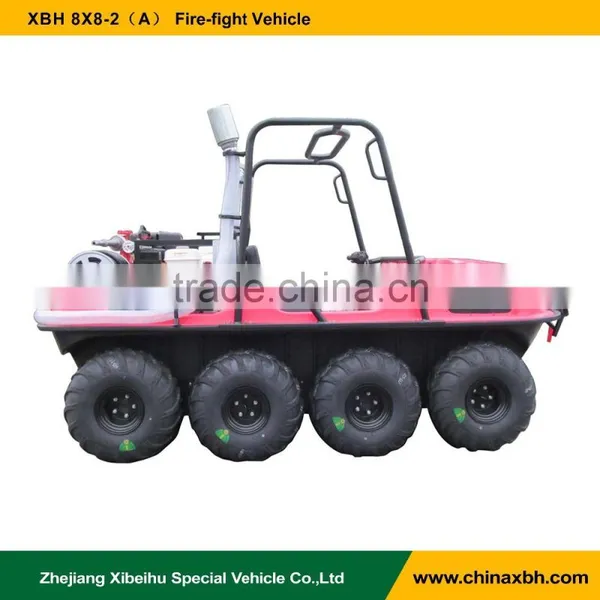

XBH 8X8-2 Fire-fighting Equipment ATV

Engine type:

Fan-cooled,four-stroke,OHV25°inclined,single cylinder

Diameter ×stroke:

88×64

Compression ratio:

8:1

Maximum power/revolution[kW,r/min]:

9.6/3600

Maximum torque/revolution[N.m,r/min]:

26.5/2500

ignition:

Transistor ignition

starter:

Cord of pull starter,motor starter.

Water pump:

First-stage centrifugal pump

Flow rate:

32—36m³/h

Pump lift:

50m

Water intake:

 Rotary vane vacuum pump

Time for water intake:

7m≤30s

Maximum water intake height:

7m

Inlet diameter:

65mm

Outlet diameter:

65mm

size:

520×560×550

weight:

<65kg

Model

GXYQ-35/10-XD

Basic data

Water pump

Outlet pressure(MPa)

10

Flow rate

Non-mist(L/min)

36.7

With water mist(L/min)

36.5

hose

length(m)

30

Normal pressure(MPa)

18

Pressure regulator pressure(MPa)

5.0

Tank capacity( L)

90

weight(kg)

132

size(cm)

128×47×100

Injection

Flow rate (L/min)

Non-mist≥36.7

With water mist≥36.5

range (m)

Non-mist≥16.5

With water mist≥8.0
