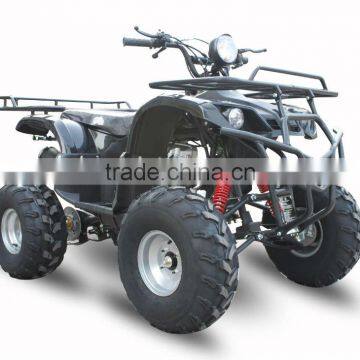

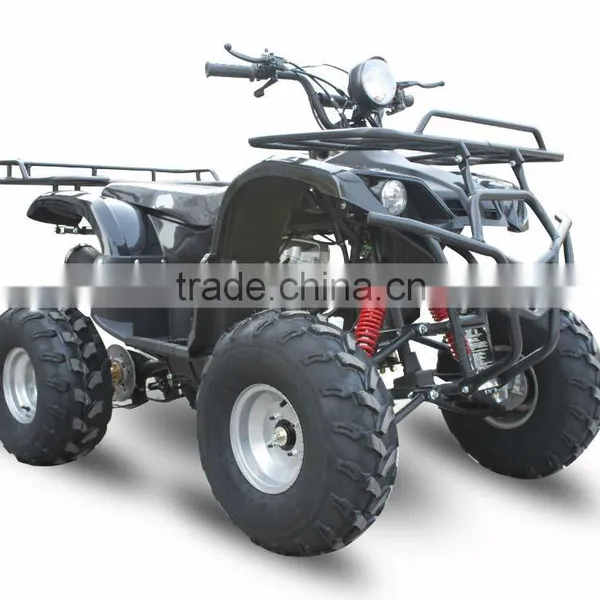

QUAD ATV 250cc ATA250-D1 with EPA ECE

Name: QUAD ATV 250cc ATA250-D1 with EPA ECE
Brand: Taotao OR OEM
Price: USD $800 - 2,000 / Unit

FOB Price

USD $800 - $2,000 / Unit

1 Unit(Min.Order)

Product Details

QUAD ATV 250cc ATA250-D1 with EPA ECE

Specifications
ENGINE
Type	200cc,Air cooled,4-stroke,1-cylinder
Bore x Stroke	70mmX65mm
Compression Ratio	10:1
Carburetor	PZ27
Ignition	CDI
Starting	Electric start
Transmission	4-3-2-1-N-R
Drive Train	Chain Drive
Max. Torque	15N.m/5500r/min
Max. Power	10.5Kw/7500r/min
CHASSIS
Suspension/Front	Independent double swing arm
Suspension/Rear	Single swing arm
Brakes/Front	Drum
Brakes/Rear	Ventilated Hydraulic disc
Tires/Front	21 x 7-8 radial
Tires/Rear	20 x 9.5-8 radial
DIMENSIONS
L x W x H	1700mmX1040mmX1100mm
Seat Height	810mm
Wheelbase	1115mm
Ground Clearance	120mm
Battery	12V/9Ah
Fuel Capacity	4.2L
Dry Weight	149kg
Max. Load	150kg
Package Size	1680mmX920mmX770mm
Loading Quantity	18pcs/20'GP;40pcs/40HQ
MAIN PERFORMANCE
Max. Speed	65km/h
Fuel Consumption(L/100Km)	3.8L
Starting Time	≤15s
Brake distance	30km/h≤7m
