EPA Approved 4-Stroke 500CC Air Cooled Engine ATV

EPA Approved 4-Stroke 500CC Air Cooled Engine ATV thumbnail-1
EPA Approved 4-Stroke 500CC Air Cooled Engine ATV thumbnail-2
EPA Approved 4-Stroke 500CC Air Cooled Engine ATV thumbnail-3
EPA Approved 4-Stroke 500CC Air Cooled Engine ATV photo-1

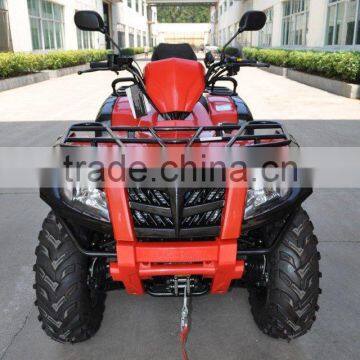

EPA Approved 4-Stroke 500CC Air Cooled Engine ATV photo-2

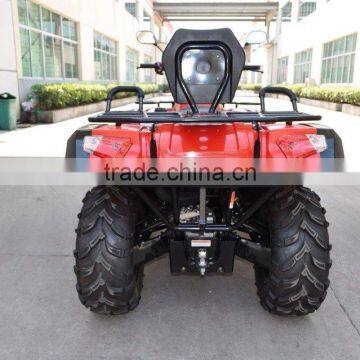

EPA Approved 4-Stroke 500CC Air Cooled Engine ATV photo-3
US$ 3,800 - 4,000 MOQ: 4 Units
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Jinhua Zhenqi Motion Apparatus Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Shaft Drive
Certification EPA
Brand Name SQ
Place of Origin Zhejiang, China
Model Number SQ500ST-4

This is our facotry



EPA Approved 4-Stroke 500CC Air cooled engine ATV



Model SQ500ST-4
Overall dimension(L*W*H) 2330*1185*1330mm
Fuel Type unleaded petrol above 90 #
Wheelbase 1490mm
Max Load 630 kgs
Curb Weight 443kgs
The Max Speed ≥90km / h
Brake mode(front/rear) drum after the former disc
Brake Control Method (front / rear) hand / foot movement
Ignition mode   C.D.I
Engine Type Water-cooled 500CC, single-cylinder,four-stroke;
Engine Mode SQ500
Engine Displacement  493ml
Engine Max Power 23kw (6300 r / min)
Engine rated power/Corresponding Speed  16kw (4500r/min±5%) kw / r / min
Max Engine Torque 250N.m (660r / min)
Compression Ratio:   10.9:1
The Lowest fuel Consumption Rate > 329 g / kw/h
Clutch Type Single-plate, wet spring
Starting Way Electric start pull start
Oil Grade SF 15W/40
Petrol tank capacity 17L
Battery Specifications 12V36Ah
Transmission Output Mode:  shaft drive
Stalls  5 files. 2 forward, one back, a neutral gear, a parking stall
Idle Speed 1500±150  r / min
Drive Mode Four Drivers
Max Climbing Degree 30 degrees
Container loading(20FT/40FT/40HQ): 4/8/12





EPA Approved 4-Stroke 500CC Air cooled engine ATV
