500cc ATV 4x4 Atv

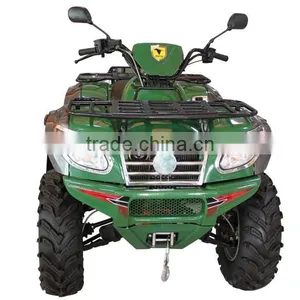

500cc ATV 4x4 Atv thumbnail-1
500cc ATV 4x4 Atv thumbnail-2
500cc ATV 4x4 Atv thumbnail-3
500cc ATV 4x4 Atv thumbnail-4
500cc ATV 4x4 Atv photo-1

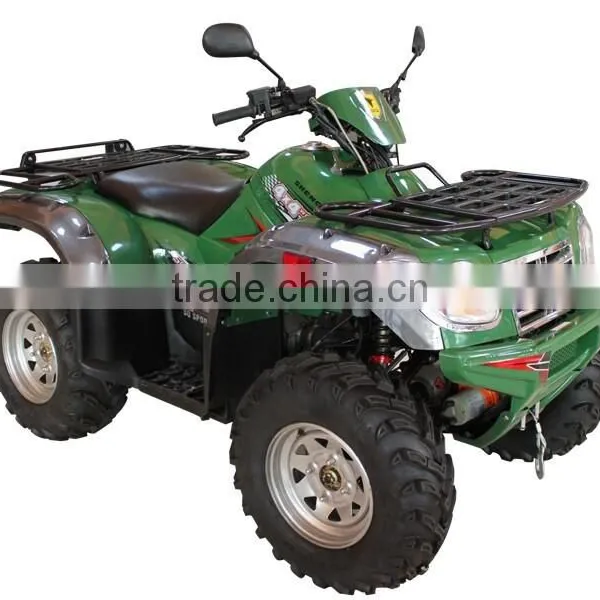

500cc ATV 4x4 Atv photo-2

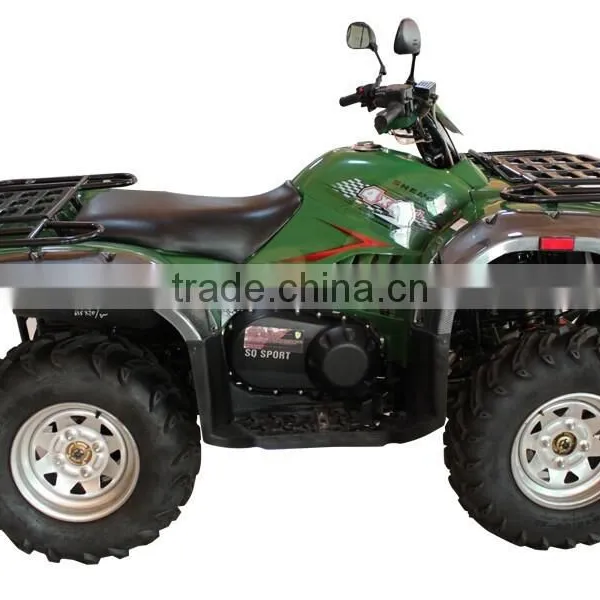

500cc ATV 4x4 Atv photo-3

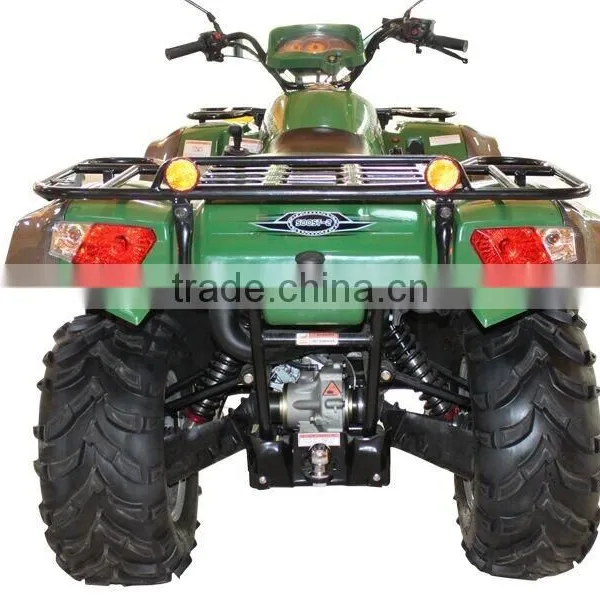

500cc ATV 4x4 Atv photo-4
US$ 3,300 - 3,500 MOQ: 4 Units
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Jinhua Zhenqi Motion Apparatus Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Shaft Drive
Certification EPA
Brand Name SQ
Place of Origin Zhejiang, China
Model Number SQ500ST-2

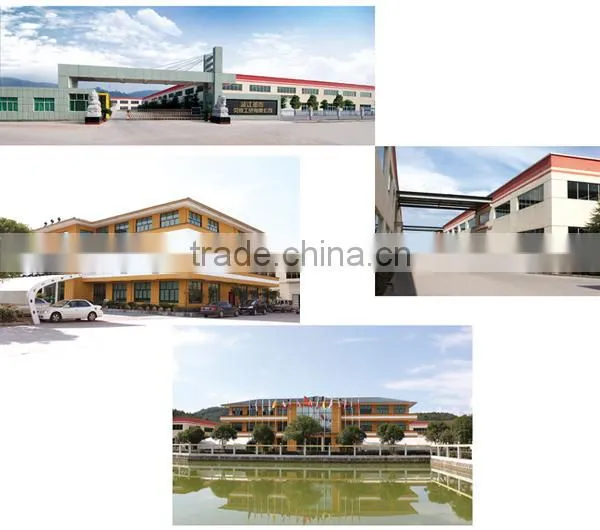

This is our facotry

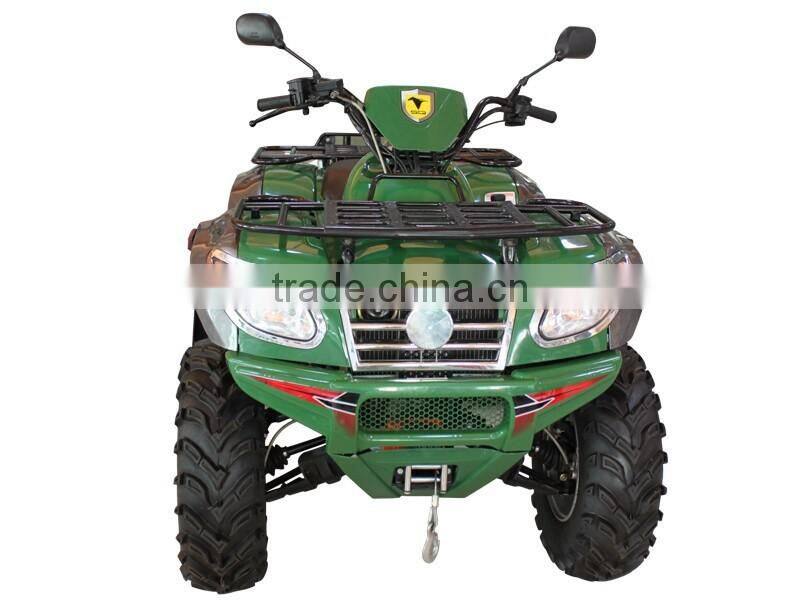

500cc ATV 4x4 atv







ModelSQ500ST-2
Overall dimension(L*W*H)2085*1200*1274mm
Fuel Typeunleaded petrol above 90 #
Wheelbase1400mm
Max Load570 kgs
Curb Weight460kgs
The Max Speed≥90km / h
Brake mode(front/rear)drum after the former disc
Brake Control Method (front / rear)hand / foot movement
Ignition mode  C.D.I
Engine TypeWater-cooled 500CC, single-cylinder,four-stroke;
Engine ModeSQ500
Engine Displacement 498ml
Engine Max Power/Corresponding Speed19.6kw (4500r/min±5%) kw / r / min
Engine rated power/Corresponding Speed 16kw (4500r/min±5%) kw / r / min
Max Engine Torque Corresponding Rotational Speed39N.m (2700~3000r/min±5%) nm / r / min
Compression Ratio:  8.6:1
The Lowest fuel Consumption Rate> 329 g / kw/h
Clutch TypeSingle-plate, wet spring
Starting WayElectric start pull start
Oil GradeSF 15W/40
Petrol tank capacity13L
Battery Specifications12V36Ah
Transmission Output Mode: shaft drive
Stalls 5 files. 2 forward, one back, a neutral gear, a parking stall
Idle Speed1500±150  r / min
Drive ModeFour Drivers
Max Climbing Degree30 degrees
Container loading(20FT/40FT/40HQ):4/8/12

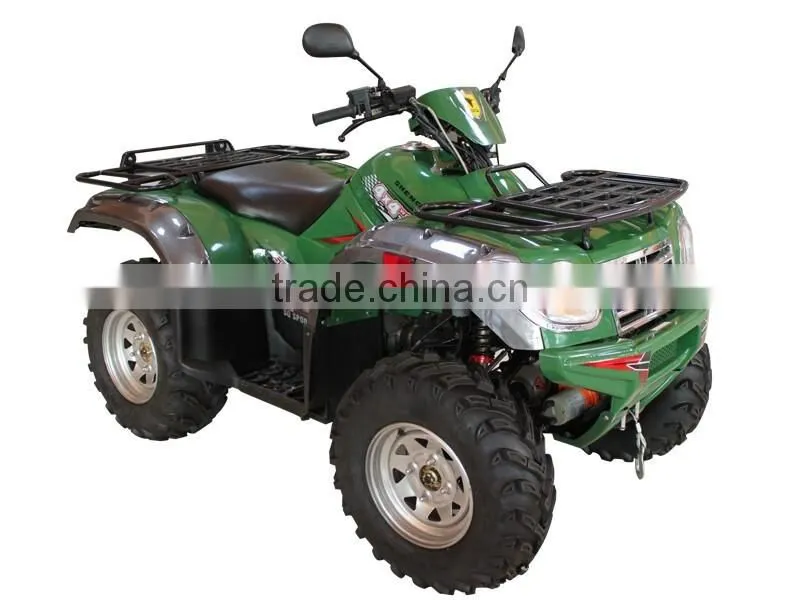

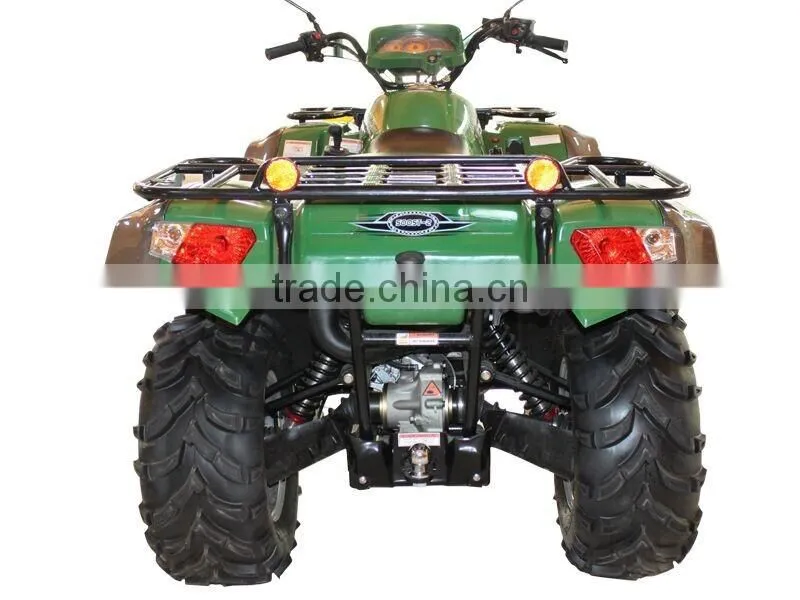

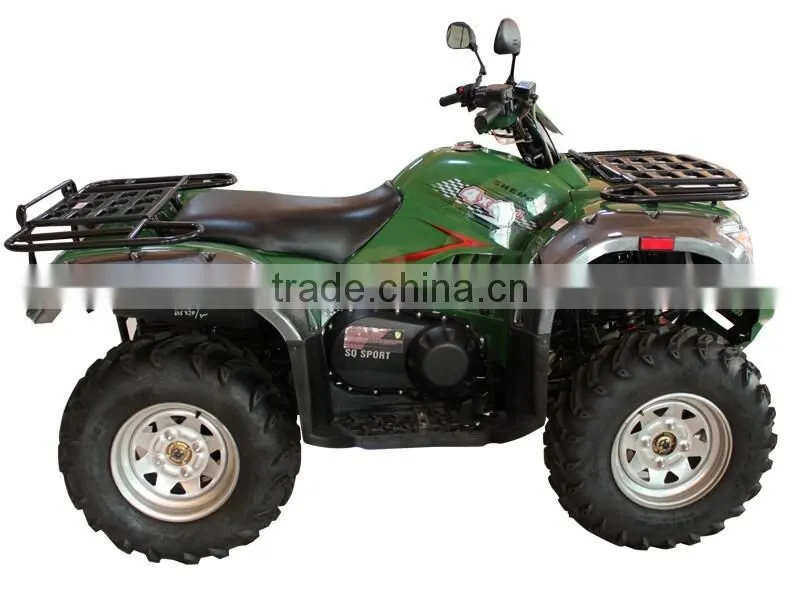

500cc ATV 4x4 atv500cc ATV 4x4 atv500cc ATV 4x4 atv500cc ATV 4x4 atv
