Home > Transportation > Electric Vehicle & Parts > Electric Bike > Foldable Electric Bike 20" EN15194 Approval

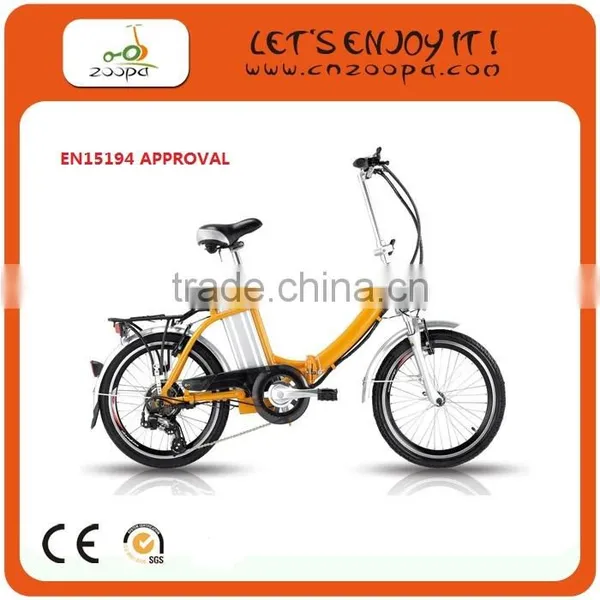

Foldable Electric Bike 20" EN15194 Approval

Name: Foldable Electric Bike 20" EN15194 Approval
Brand: ZOOPA
SKU: 141685790
Availability: InStock

Foldable Electric Bike 20" EN15194 Approval thumbnail-1

Foldable Electric Bike 20" EN15194 Approval photo-1

US$ 450 - 495 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Wattage:

200 - 250w

Voltage:

36V

Power Supply:

Lithium Battery

Contact Supplier Request Quote Chat Now

Yongkang Zoopa Industry And Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Wattage 200 - 250w

Voltage 36V

Power Supply Lithium Battery

Wheel Size Other, 20“

Motor Brushless

Certification Other, EN15194

Frame Material Aluminum

Foldable Yes

Max Speed Other, <30km/h

Range per Power 31 - 60 km

Place of Origin Zhejiang, China

Brand Name ZOOPA

Model Number ZP-TDN01Z

Specifications

electric bike
250w 36v 10ah liuthum battery electric bicycle
20" folding e-bike
CST tire, famous brand in Taiwan.
V brake

electric bicycle

Performance
Max speed		25km/h
Driving distance		45-70KM
Charging time and life		6-8 hours,>500 times
Max loading		125kg
G.W./N.W.		28/23Kg
Product size		1545×600×990mm
Packing size		1300×270×640mm

Electric system
Motor	250W Brushless
Battery	Lithium 24v/36v 10ah
Charger	220 / 110V, 50 - 60Hz
PAS	1:1 intelligent pedal assistant system
	4-level option (neutral gear,1,2,3)
Controller	Intelligent controller(lishui)
Main Components
Frame	6061 Aluminum alloy
Tyres	20x1.75(Kenda/CST)
Rim	Al alloy double wall , CNC side wall
Front fork	Al alloy fork
F/R brake	V-brake
Speed gears:6-class Shimano
Spokes	Stainless spokes
Mudguard	fender(bikeman)
Handlebar	Al alloy (zoom)
Stem	Al alloy (zoom)
Brake lever	Al alloy with power off switch.
Chain	Rust resistant chain KMC
Saddle	city style saddle
Seat post	Al alloy with suspension
Pedal	foldable (VP)
lights	F/R LED lights Spanniga
Display	LED-display (kingmeter 790)

Warranty of e-bike:(when you receipt of e-bike)

During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof. We can also offer training service for your staff at our factory if needed.

1. The frame: 3 years

2. The electric motor: 2 years

3. The Li-ion battery: 1 year

4. The controller: 1 year

5. The charger: 1 year

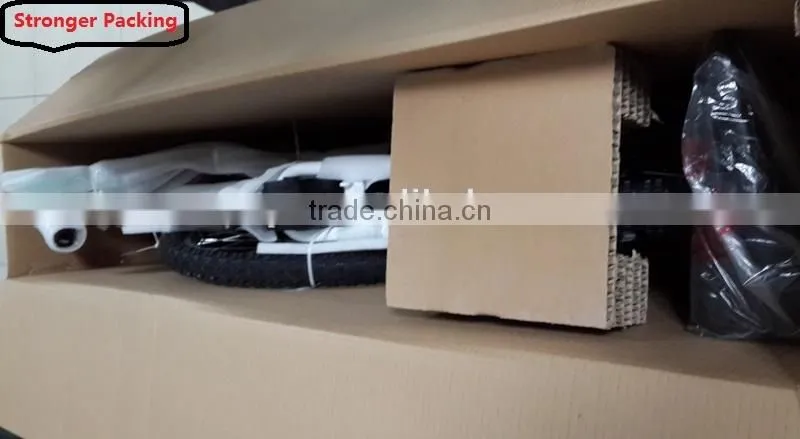

Packing details:

1pc/master carton( Bubble bag+EPE foam+inner box+outer 7 layers cartons)

Carton size: L1300× W270× H640mm

Container capacity: 116pcs/20'GP; 288pcs/40'HQ;
