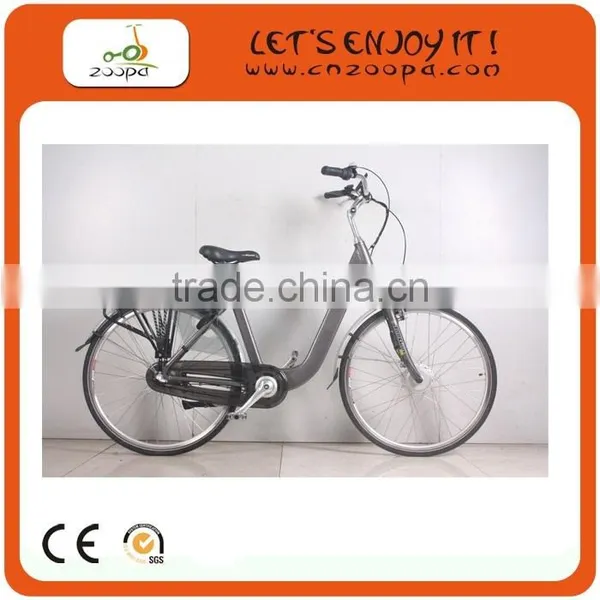

Lady e-bike, aluminum frame electric bike 28"

Specifications

electric bike 28"
250w 36v 10ah liuthum battery electric bicycle
CST tire, famous brand in Taiwan.
V brake

electric bicycle



Performance
Max speed		25km/h
Driving distance		45-70KM
Charging time and life		6-8 hours,>500 times
Max loading		125kg
G.W./N.W.		31/25Kg
Product size		1780×630×1215mm
Packing size		1450×270×870mm

Electric system
Motor	250W Brushless
Battery	Lithium 24v/36v 10ah
Charger	220 / 110V, 50 - 60Hz
PAS	1:1 intelligent pedal assistant system
	4-level option (neutral gear,1,2,3)
Controller	Intelligent controller(lishui)
Main Components
Frame	6061 Aluminum alloy
Tyres	700X38C (Kenda/CST)
Rim	Al alloy double wall , CNC side wall
Front fork	Al alloy  fork
F/R brake	V brake for front, Roller brake for rear
Speed gears Shimano nexus inner 3 speed
Spokes	Stainless spokes
Mudguard	fender(bikeman)
Handlebar	Al alloy  (zoom)
Stem	Al alloy  (zoom)
Brake lever	Al alloy with power off switch.
Chain	Rust resistant chain KMC
Saddle	city style saddle
Seat post	Al alloy with suspension
Pedal	foldable (VP)
lights	F/R LED lights Spanniga
Display	LED-display (kingmeter 790)







Warranty of e-bike:(when you receipt of e-bike)



During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof. We can also offer training service for your staff at our factory if needed.



1. The frame: 3 years

2. The electric motor: 2 years

3. The Li-ion battery: 1 year

4. The controller: 1 year

5. The charger: 1 year





Packing details:

1pc/master carton( Bubble bag+EPE foam+inner box+outer 7 layers cartons)

Carton size:   L1450× W270× H870mm

Container capacity: 80pcs/20'GP; 192pcs/40'HQ;
