Specifications
30 ton howo mining dump truck1.Loading capacity:55Tons
2.Curb weight:23Tons
3.Fuel capacity:500L
4.Max. speed:46km/h

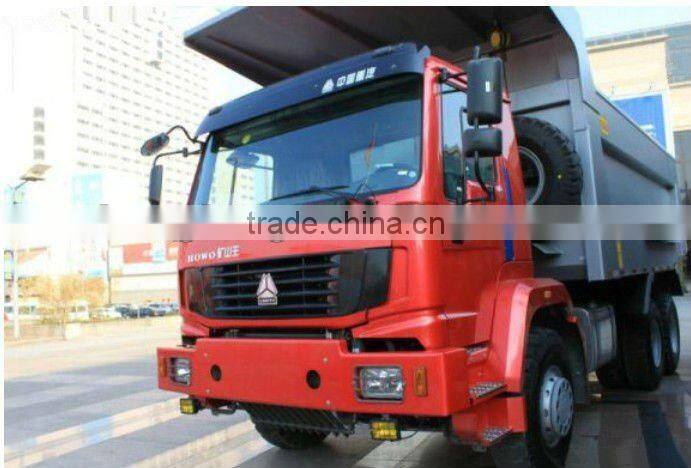

China Manufacturers HOWO 30 Ton Mining Dump Truck
Main Configuraiton about mining dump truck:
Dimension(LxWxH) (Unloaded)(mm) | 8745x3200x3670 | ||
Cargo body size(LxWxH) (mm) | 5900x3100x1800,bottom:16mm,side:12mm | ||
Approaching/departure angle | 32/40 | ||
Overhang(Front/Rear)(mm) | 1500/1800 | ||
Wheel base(mm) | 3800+1500 | ||
Max. speed(km/h) | 46 | ||
Min. ground clearance(mm) | 340 | ||
Max. Grade ability (%) | 42 | ||
Min. turning radius | 22 | ||
Curb Weight(kg) | 23000 | ||
Loading Capacity(kg) | 55000 | ||
Engine | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection | |
Fuel type | Diesel | ||
Horse power, max.(km/rpm) | 371HP,247/2200 | ||
Emission | EURO 2 | ||
Fuel tanker capacity(L) | 500 | ||
Transmission model | HW9710 | ||
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | Spring energy, compressed air operating on rear wheels. | ||
Steering system model | ZF8098 | ||
Front axle | HF12, steering with double T-cross section bea | ||
Rear axle | AC26, assembling axle housing, central double reduction with differential locks between axles and wheels | ||
Color | White,red,yellow,etc | ||
Tyre | 14.00-R25 36 level | ||
Electrical system | Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5kw/24V | ||
Cab | HW7D cab, (with air-condition), unilateral cab | ||
Company instruction:
Jinan Shanglong International Trade Co.,Ltd is located in Jinan,shandong Province,China.With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper,tractor,mixer,cargo truck, special-using truck, semi-trailer and spare parts.
XCMG and ZOOMLION series construction machinery such as truck cran, wheel loader, excavator, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.
Our main heavy duty truck products are:
1. Howo tippers: Howo 4x2 tipper. Howo 6x4 tipper. Howo 8x4 tipper.
2. Howo tracotrs: Howo 4x2 tractor. Howo 6x4 tractor.
3. HOWO Cargo truck: Howo 4x2 Cargo. Howo 6x4 Cargo. Howo 8x4 Cargo.
4. Howo sewage suction tank: Howo 4x2, Howo 6x4.
5. Howo concrete mixers: 8m3---12m3.
6. Howo garbage trucks: 10m3---16m3.
We are the specialized mining dump truck supplier in China. With high reputation and competitive price.Welcome your inquiry at any time. Check for more info.
Attd:Ady Yan
Tel:+86-15254123683
Skype:ady958958
