Specifications
Mining Truck 70T HOWO1.Loading capacity:80Tons
2.Displacement:9.726L
3.Feul tank:500L
4.Max. speed:50km/h

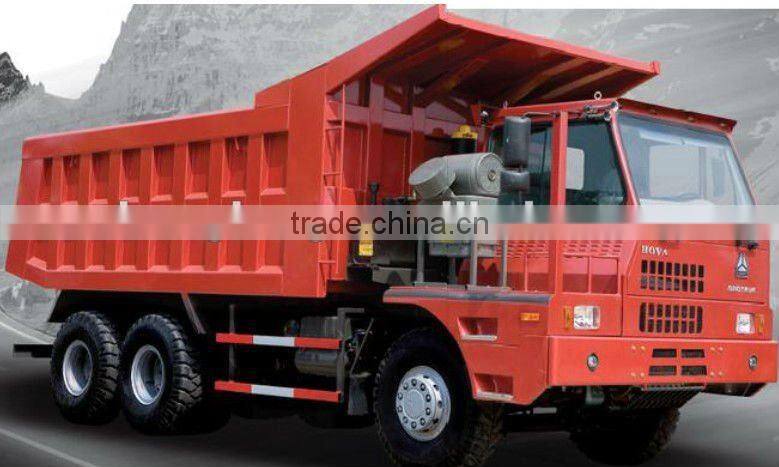

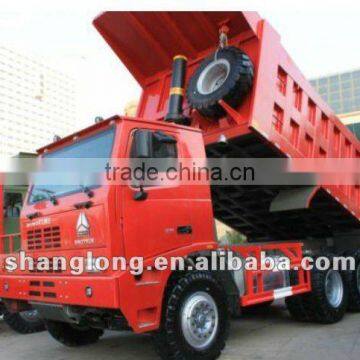

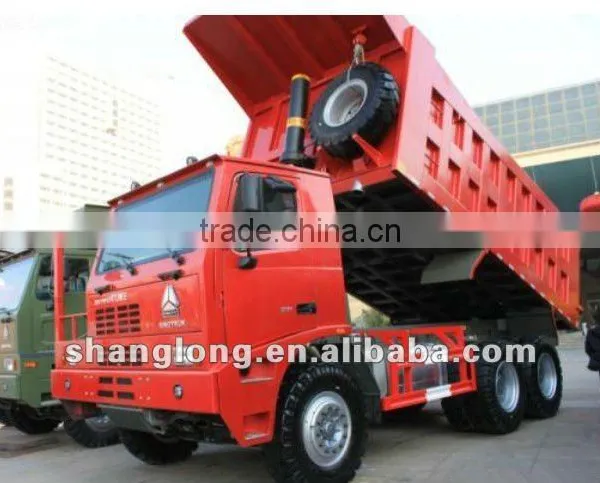

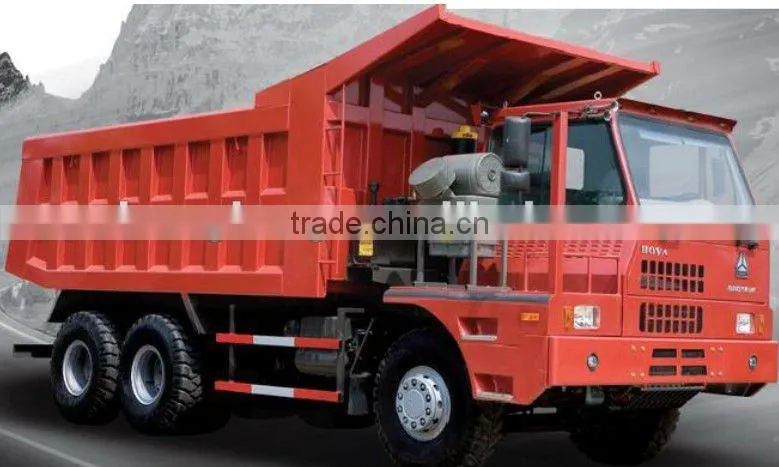

China Manufacturer HOWO 70T Mining Truck
Main Configuraiton about Mining Truck:
Dimension(LxWxH) (Unloaded)(mm) | 7800x33326x3310 | |
Approaching/departure angle | 32/40 | |
Overhang(Front/Rear)(mm) | 1500/1000 | |
Wheel base(mm) | 3800+1500 | |
Max. speed(km/h) | 50 | |
Curb Weight(kg) | 17300 | |
Gross Weight (kg) | 70000 | |
Loading Capacity(kg) | 52460 | |
Engine | Type | WD615.47,371HP EURO II Emission standard |
Max. output (km/rpm) | 273/2200 | |
Max. torque(Nm/rpm) | 1500/1100-1600 | |
Displacement | 9.726L | |
Style | 6-cylinder 2 strokes in line with turbo charging and inter cooling | |
Clutch | 430 diaphragm-spring clutch | |
Fuel tanker capacity(L) | D style 500L | |
Transmission model | HW9710 HOWO 10 shifts gearbox torque:1900Nm with HW70PTO | |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | Spring energy, compressed air operating on rear wheels. | |
Auxiliary | Engine exhaust valve brake | |
Steering system model | ZF8098 | |
Driving axle | AC26 double reduction pressed axle housing with wheel reduction and differential locks between wheels and axles. | |
Front axle | HF12 mining area whole cast steel | |
Suspension | Front/rear leaf spring integral balance suspension | |
Tyre | 14.00-R25 | |
Cab | Type | HOWO |
Model | Big plane, one sided mining truck, its special cab uses coil spring suspension with shock absorber, and equipped with air conditioner and heating system | |
Company instruction:
Jinan Shanglong International Trade Co.,Ltd is located in Jinan,shandong Province,China.With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper,tractor,mixer,cargo truck, special-using truck, semi-trailer and spare parts.
XCMG and ZOOMLION series construction machinery such as truck cran, wheel loader, excavator, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.
Our main heavy duty truck products are:
1. Howo tippers: Howo 4x2 tipper. Howo 6x4 tipper. Howo 8x4 tipper.
2. Howo tracotrs: Howo 4x2 tractor. Howo 6x4 tractor.
3. HOWO Cargo truck: Howo 4x2 Cargo. Howo 6x4 Cargo. Howo 8x4 Cargo.
4. Howo sewage suction tank: Howo 4x2, Howo 6x4.
5. Howo concrete mixers: 8m3---12m3.
6. Howo garbage trucks: 10m3---16m3.
We are the specialized mining truck supplier in China. With high reputation and competitive price.
Welcome your inquiry at any time. Check for more info.
