Specifications

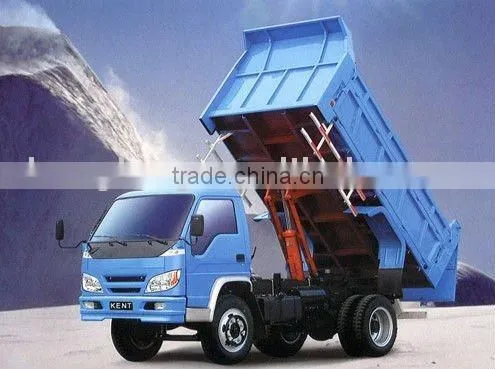

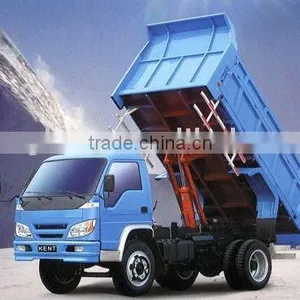

TKING mini dump truck. Supply light truck with flat and dump typeTKING mini dump truck
Over all dimensions(LxWxH) 6880*2450*3050 5035*2100*2320 5760*2098*2430 4845*1980*2140
Inner dimensions of the cargo body (LxWxH) (mm) 4500*2300*600 3200*1900*590 3500*2000*590 3010*1770*440
Curb weight (kg) 3565 3060 2300 2100
Gross vehiele Weight (kg) 6240 5050 3795 3285
Rated payload (kg) 2580 1860 1365 990
Persons in cab (persons) 3 3 2 3
Driving type 4*2 4*2 4*2 4*2
Wheel base (mm) 3900 2700 3300 2600
Wheel track (front/rear) (mm) 1910/1800 1500/1520 1520/1580 1470/1425
Min.ground clearance (mm) ≥220 ≥180 ≥160 ≥ 200
Min.Turning diameter (m) ≤16.5 ≤15 ≤15 ≤ 14.5
Max.speed (km/h) ≥80 ≥80 ≥70 ≥ 75
Max.slope of climb (%) ≥20 ≥25 ≥25 ≥ 20
Fuel consumption (L/100km) ≤17 ≤12 ≤13 ≤ 12
Engine model YC4G170-20 4100QB YZ4102QF N485QA
Engine type four cylinders,In-line,water cooling,four-stroke ,supercharging direct injection diesel engine four cylinders,In-line,water cooling, diesel engine
Piston displacement (L) 5.202 3.298 3.857 2.156
Rated power (kw/rpm) 125/2300 58.8/3200 70.6/3200 34.5/3000
Max.torque (Nm/rpm) 630/1600 200/1800-2000 245/2200 124.3/2100
Transmission model 6-85 17C28 17D32F 5~20
Steering gear Power boosthvey steering gear Mechanical,Circular ball Mechanical,Circular ball civcular ball,vack bar and civcle steering gear
Brake system type dual circuits pneumatic brake Hydraulic dual circuits dual circuits pneumatic brake Hydraulic dual circuits
Fuel tank volume (L) 150 55 83 60
Wheels and tyre size 6+1,9.00-20/10.00-20 6+1,7.50-16 6+1,8.25-16 6+1,6.50-16
Rated voltage for electrical equipment (V) 24 24 24 12
