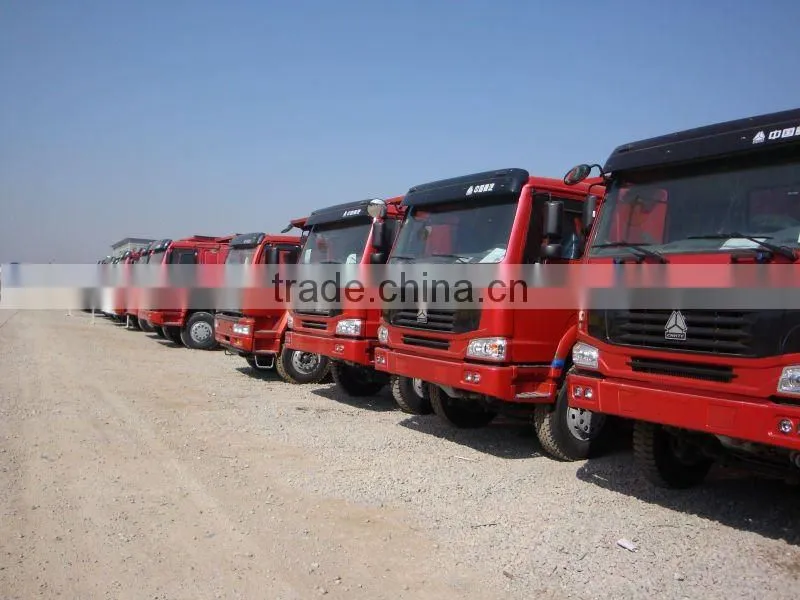

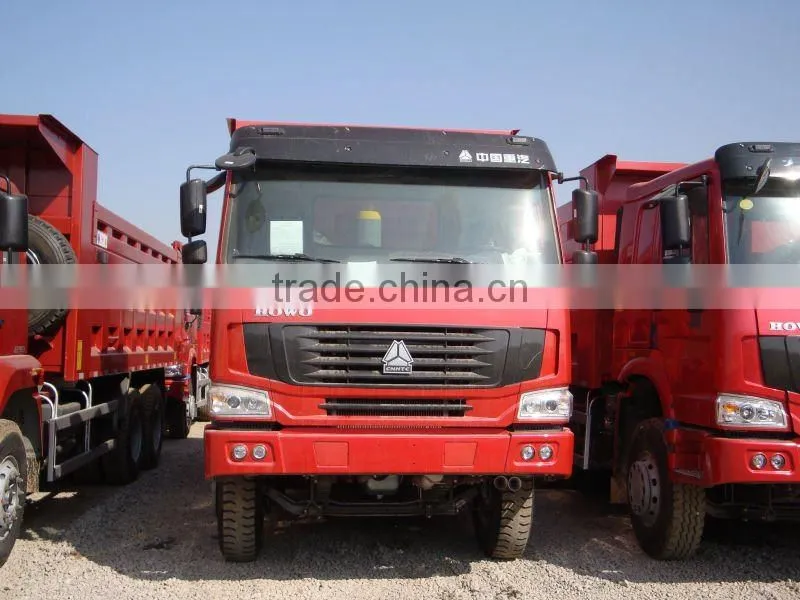

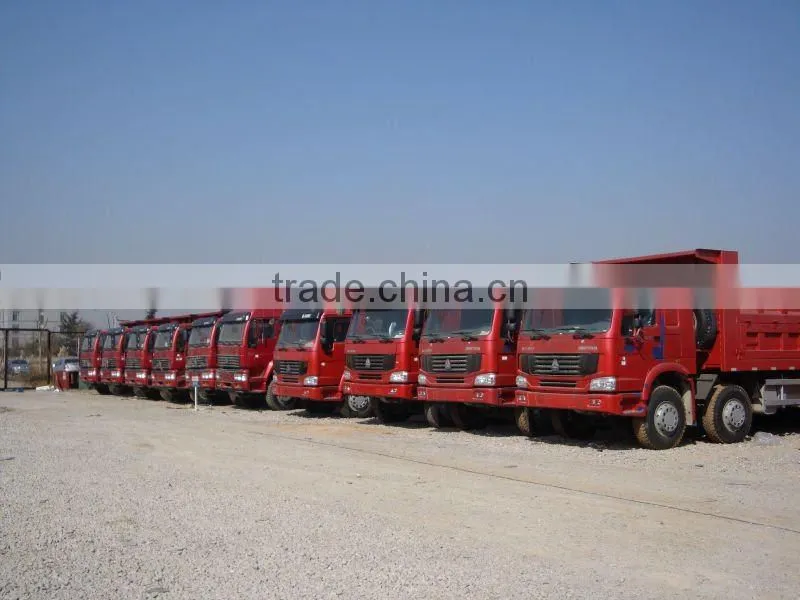

Help CenterSINOTRUK HOWO 6X4 TIPPER TRUCK
US$ 35,000 - 400,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
351 - 450hp
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Drive Wheel
6x4
Capacity (Load)
21 - 30t
Horsepower
351 - 450hp
Condition
New
Transmission Type
Automatic
Emission Standard
Euro 2
Fuel Type
Diesel
Place of Origin
Shandong, China
Brand Name
HOWO
Model Number
6X4
Specifications
SINOTRUK HOWO 6X4 TIPPER TRUCKEngine: 336HP, 6-cylinder water cooling engine
Clutch: Single-plate dry oil-spring clutch
SINOTRUK HOWO 6X4 TIPPER TRUCK
| Cabin | Driving type | 6×4 LHD | |
| HOWO Standard cab | |||
| Vehicle main Dimensions | Overall dimensions (L×W×H)mm | 9755×2496×3170 | |
| Wheel base (mm) | 4625+1350 | ||
| Wheel track (front/rear) (mm) | 2041/1830 | ||
| Approach/Departure angle(°) | 19/22 | ||
| Weight in KGS | Tare Weight | 12100 | |
| Loading Capacity | 12770 | ||
| Front axles loading capacity | 7000 | ||
| Rear axles loading capacity | 2×9000 | ||
| 75 | |||
| Engine | Brand | SINOTRUK | |
| Model | ZZ3257M4641 | ||
| Type | 4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking | ||
| Displacement (L) | 9.726 | ||
| Horse Power (HP)/(KPM) | 290HP/2200KPM | ||
| Max.Torque/(KMP) | 1160Nm/1100-1600RPM | ||
| Emission standard | Euro II | ||
| Gearbox | FULLER9, 9 forward&1 reverse | ||
| Clutch | Reinforced diaphragm clutch, diameter 420mm | ||
| ZF power steering, modol ZF8098, hydraulic steering with power assitance | |||
| Fuel tank (L) | 400 | ||
| Tire | 12.00-20,Optional 12.00R20,11.00-20,11.00R20 | ||
| Dump body | |||
| Dimension | L×W×H | 7000×2300×1200 | 5200×2300×1250 |
| Thickness | Floor | 8mm | 8mm |
| Side | 6mm | 6mm | |
| Front | 6mm | 8mm | |
| Door | 6mm | 6mm | |
