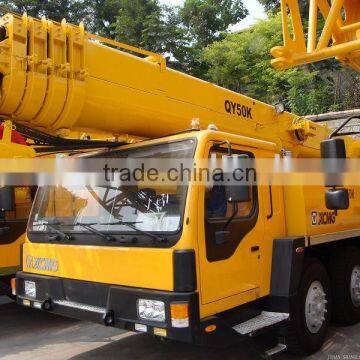

XCMG QY50K TRUCK CRANE

Name: XCMG QY50K TRUCK CRANE
Brand: XCMG, XCMG
SKU: 141683266
Availability: InStock

US$ 210,000 - 220,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Loading Capacity:

50T

Max. Lifting Load:

50T

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ANY PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 50T

Max. Lifting Load 50T

Place of Origin Shandong, China

Brand Name XCMG, XCMG

Model Number QY50K, QY50K

Specifications

XCMG QY50K TRUCK CRANE WITH HIGH QUALITY AND GOOD PRICE

XCMG QY50K TRUCK CRANE

Main Technical Specifications
Technical Data for Lifting Operation

Classificatory	Item		Unit	Parameter
Outline dimension	Overall length		mm	13100
	Overall width		mm	≤2750
	Overall height		mm	3350
	Wheel base	Axle 1, Axle 2	mm	1520
		Axle 2, Axle 3	mm	3815
		Axle 3, Axle 4	mm	1350
Mass	Total mass in travel state		kg	38580
	Axle load	Front axle	kg	12950
	Axle load	Rear axle	kg	25630
Travel performance	Travel speed	Max. travel speed	km/h	66
	Travel speed	Min. stable travel speed	km/h	2.7
	Turning diameter	Min. turning diameter	m	24
	Turning diameter	Min. turning diameter at boom tip	m	26.8
	Min. ground clearance		mm	285
	Approach angle		(°)	16
	Departure angle		(°)	16
	Braking distance (at 30km/h with full load)		m	10
	Max. grade-ability			27
	Fuel consumption for 100km		L	36
Power	Model			WD615.67A
	Engine rated output		kW/(r/min.)	206/2200
	Engine rated torque		N.m/(r/min.)	1100/1400
	Engine rated speed		rpm.	2200

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	50
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	≤3.485
	Max. load moment		Base boom		kN.m	1764
			Fully extended boom		kN.m	823
			Fully extended boom + Jib		kN.m	492.8
	Outrigger span		Longitudinal		m	5.65
			Lateral		m	6.6
	Lifting height		Base boom		m	10.75
			Fully extended boom		m	40
			Fully extended boom + Jib		m	55.8
Working speed	Boom raising time				s	88
	Boom full extension time				s	180
	Max. swing speed				r/min	2.0
	Hoist speed	Main winch		Full load	m/min	≥85
				No load	m/min	≥110
		Aux. winch		Full load	m/min	≥80
				No load	m/min	≥110
Noise limit	Crane exterior noise				dB (A)	≤118
	At seated position				dB (A)	≤90
