Help Center56M Truck Mounted Concrete Boom Pump
Related Products
Specifications
56M truck mounted concrete boom pump1.Chassis:CYH51Y
2.Max Speed:89KM/H
3.Braking Distance:10m
4.Tire :295/80R22.5

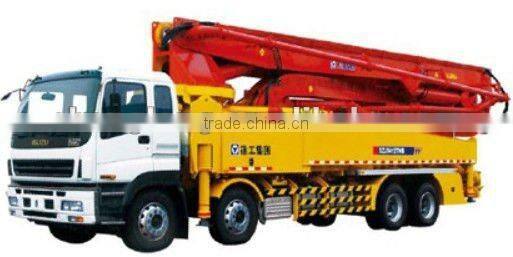

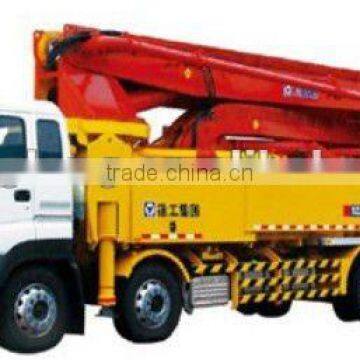

56M truck mounted concrete boom pump
Jinan Shanglong International Trade Co.,Ltd
Room 2601 D Donghuan Plaza Jinan City, China
Tel:+86-15254123683/+86-13739889507
Fax:+86-531-83532996
Skype:ady958958
website:
Product Description:
Truck-mounted concrete boom pump afford to the transmission of the concrete in construction industry. This is the top construction equipment in recent years. It consists of chassis and equips with one set of hydraulic equipment on the chassis, to complete the whole transmission process.
Main Features:
1.Self-moving, compact structure and skillful
2.Easy operation and safety
3.Be easy to realize overload protection
4.Be operated by remote control
5.Developing the capacity of huge,high pressure and long distance
6.The higher height, longer transmission distance and higher efficiency.
Main Parameters:
Main Parameters during working: | ||||
CATEGORY | ITEM | UNIT | PARAMETER | |
Pumping System | Theoretical output(High/Low) | m3/h | 90/150 | |
Delivery pressure(High/Low) | MPa | 13/8 | ||
Theoretical delivery cycles(High/Low) | times/min | 13/22 | ||
Transport cylinder inner diameter*Travel | mm | φ260×2200 | ||
Max. aggregate diameter | mm | 40 | ||
Filling height | mm | 1570 | ||
Concrete Slump | cm | 12-23 | ||
High and low voltage switching mode | automatic | automatic | ||
Placing Boom | Max. reach height | m | 55.6 | |
Max. reach depth | m | 39.2 | ||
Turning radius | m | 50.6 | ||
Slewing angle | . | ±270 | ||
1st section unfolding angle | . | 90 | ||
2nd section unfolding angle | . | 180 | ||
3rd section unfolding angle | . | 180 | ||
4th section unfolding angle | . | 240 | ||
5th section unfolding angle | . | 240 | ||
6th section unfolding angle | . | 90 | ||
Outrigger Span | Longitudinal | mm | 10680 | |
Front Lateral | mm | 9300 | ||
Rear Lateral | mm | 11670 | ||
Transfer Tube |
| S-valve | ||
Lubrication |
| Automatic | ||
Others | Control Type |
| Manual/remote control | |
Water tank capacity | L | 650 | ||
Max. water pump pressure | MPa | 2 | ||
