XCMG QY100K TRUCK CRANE WITH HIGH QUALITY AND GOOD PRICE XCMG QY100K TRUCK CRANE

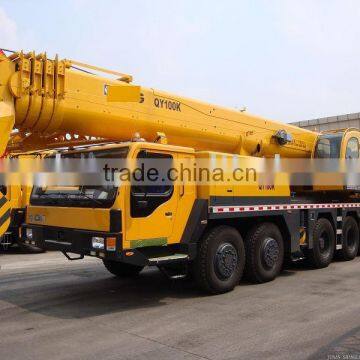

XCMG QY100K TRUCK CRANE
We have been devoting to develop crane products with the most advanced technology and the features of new design, more powerful performance. QY100K truck crane is a new large-tonnage researched and developed by our company. Six-axle carrier with three for drive and three for steering, has good off-road capability; optimized oviform boom profile has excellent lifting capacity; control system with program logic controller (PLC) reliable and precise; application of new technology such as self-erecting combined counterweight, tilt-able operators cab greatly improves the whole performance, and makes operation more comfortable and convenient. This truck crane is suitable for lifting operation and installation work in plants, mines, ports, construction sites, etc.
Main Technical Specifications
Technical Data for Lifting Operation
Classificatory | Item | Unit | Parameter | |
Outline dimension | Overall length | mm | 15230 | |
Overall width | mm | 3000 | ||
Overall height | mm | 3860 | ||
Mass | Total mass in travel state | kg | 65000 | |
Travel performance | Travel speed | Max. travel speed | km/h | 75 |
Min. stable travel speed | km/h | 0.5 | ||
Turning diameter | Min. turning diameter | m | 24 | |
Min. turning diameter at boom tip | m | 26.6 | ||
Power ratio | kW/t | 7.3 | ||
Min. ground clearance | mm | 310 | ||
Approach angle | (°) | 23 | ||
Departure angle | (°) | 15 | ||
Braking distance (at 30km/h) | m | ≤10 | ||
Max. grade-ability | 40 | |||
Power | Engine rated output | kW/(r/min.) | 324/1800 | |
Engine rated torque | N.m/(r/min.) | 2100/1200 | ||
Main Technical Data for Lifting Operation
Classificatory | Item | Unit | Parameter | ||
Lifting performance | Max. total rated lifting capacity | t | 100 | ||
Min. rated working radius | m | 3 | |||
Max. load moment | Base boom | kN.m | 3238 | ||
Fully extended boom | kN.m | 1670 | |||
Fully extended boom + Jib | kN.m | 1127 | |||
Outrigger span | Longitudinal | m | 7.56 | ||
Lateral | m | 7.6 | |||
Boom length | Base boom | m | 12.8 | ||
Fully extended boom | m | 48 | |||
Fully extended boom + Jib | m | 48 + 18.1 | |||
Jib offset angle | ° | 0, 15, 30 | |||
Working speed | Boom elevating time | Boom raising | s | 60 | |
Boom telescoping time | Full extending / Full retracting | s | 140 | ||
Max. swing speed | r/min | 2 | |||
Hoist speed (single line at 4th layer) | Main winch | m/min | 110 | ||
Aux. winch | m/min | 85 | |||
