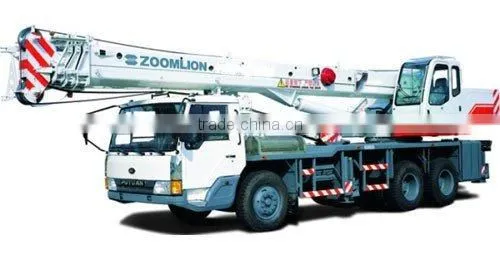

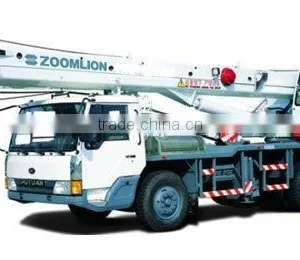

Zoomlion Truck Crane QY25E431

Name: Zoomlion Truck Crane QY25E431
Brand: Zoomlion
SKU: 141683100
Availability: InStock

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Rated Loading Capacity:

25000kg

Place of Origin:

Hunan, China

Brand Name:

Zoomlion

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Rated Loading Capacity 25000kg

Place of Origin Hunan, China

Brand Name Zoomlion

Model Number QY25E431

Specifications

This type of truck crane, one of the classic products in the same trade, has earned a good reputation from the customers.

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacitykg		25000
	Max. load moment of basic boom kN.m		980
	Max. load moment with max. main boom lengthkN.m		573
	Max. lifting height of basic boomm		11.5
	Max. lifting height of main boomm		33.8	Deformation of main boom is not taken into consideration.
	Max. lifting height of fly jibm		41.6
Working speed	Max. speed of single rope on main winch m/min		120	The 4^th layer of drum
	Max. speed of single rope onauxiliary winchm/min		105	The 2^nd layer of drum
	Derricking time of booms		40
	Telescopic time of booms		60
	Slewing speedr/min		02.2
Traveling specification	Max. traveling speedkm/h		72
	Max. gradeability%		40
	Min. turning circle diameterm		20
	Min. ground clearancemm		220
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691 -2005 (Stage III)
	Oil consumption per hundred kilometersL		46
Mass specification	Deadweight of crane in traveling condition kg		28930
	Complete vehicle kerb masskg		28800
	Front axle loadkg		6300
	Rear axle loadkg		22630
Dimension specification	Overall dimensions(L×W×H)mm		13000×2500×3450
	Base on outriggersm		5.36
	Distance between outriggersm		6.1
	Main boom lengthm		10.533.3
	Main boom angle°		-280
	Fly jib lengthm		8
	Offset angle of fly jib°		0 , 30
Chassis	Model		ZLJ5314
	Class		II
	Feature No.		ZLJ5314D3.1
	Engine	Model	WP10.270
		Rated powerkW/r/min	199/2200
		Max. output torqueN.m/r/min	1100/12001600
