QY16H431 16t Truck Crane Zoomlion

Name: QY16H431 16t Truck Crane Zoomlion
Brand: Zoomlion
SKU: 141683102
Availability: InStock

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Engineering machinery

Rated Loading Capacity:

16000

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Engineering machinery

Rated Loading Capacity 16000

Rated Lifting Moment 710

Place of Origin Hunan, China

Brand Name Zoomlion

Model Number QY16H431

Specifications

The QY16H431 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performa

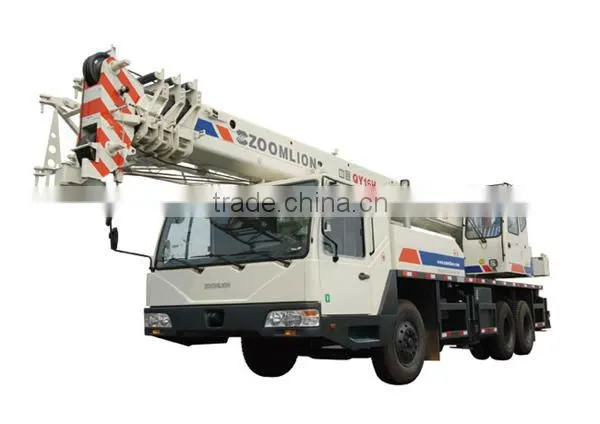

QY16H431 16t truck crane Zoomlion

Working performance specification
Max. rated total lifting capacity (kg)			16000
Max. load moment of basic boom (kN.m)			710
Max. load moment with max. main boom length (kN.m)			408
Max. lifting height of main boom (m)			31.08
Max. lifting height of fly jib (m)			38.5
Working speed
Max. speed of single rope on main winch (m/min)		120
Max. speed of single rope onauxiliary winch (m/min)		90
Derricking time of boom (s)		55
Telescopic time of boom (s)		70
Slewing speed (r/min)		0~2
Traveling specification
Max. traveling speed (km/h)		70
Max. gradeability (%)		28
Min. turning circle diameter (m)		20
Min. ground clearance (mm)		250
Limits for exhaust pollutants and smoke		Comply with related standards
Oil consumption per hundred kilometers (L)		38
Mass specification
Deadweight of crane in traveling condition (kg)		23000
Complete vehicle kerb mass (kg)		22805
Front axle load (kg)		6200
Rear axle load (kg)		16800
Dimension specification
Overall dimensions (L×W×H) (mm)		12050×2500×3400
Base on outriggers (m)		4.95
Distance between outriggers (m)		5.4
Main boom length (m)		9.8~30.8
Main boom angle (°)		-2∼80
Fly jib length (m)		7.5
Offset angle of fly jib (°)		0 , 30
Chassis
Model		ZLJ5261
Class		II
Engine	Model	WP6.240
	Rated power (kW/r/min)	176 /2500
	Max. output torque (N.m/r/min)	800 /1300∼1500
