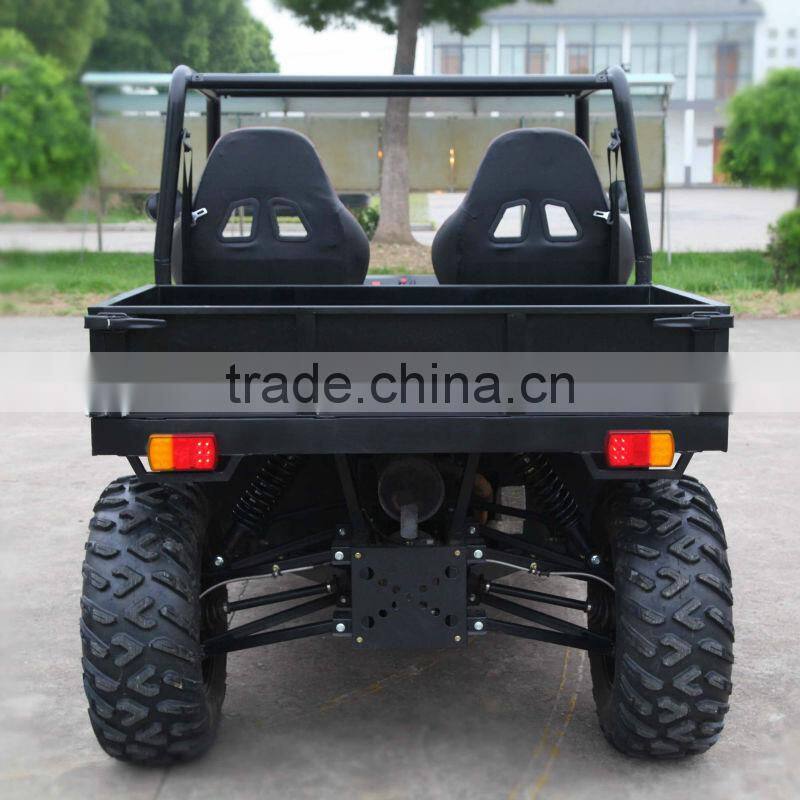

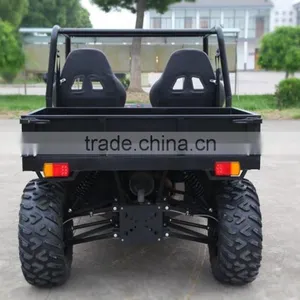

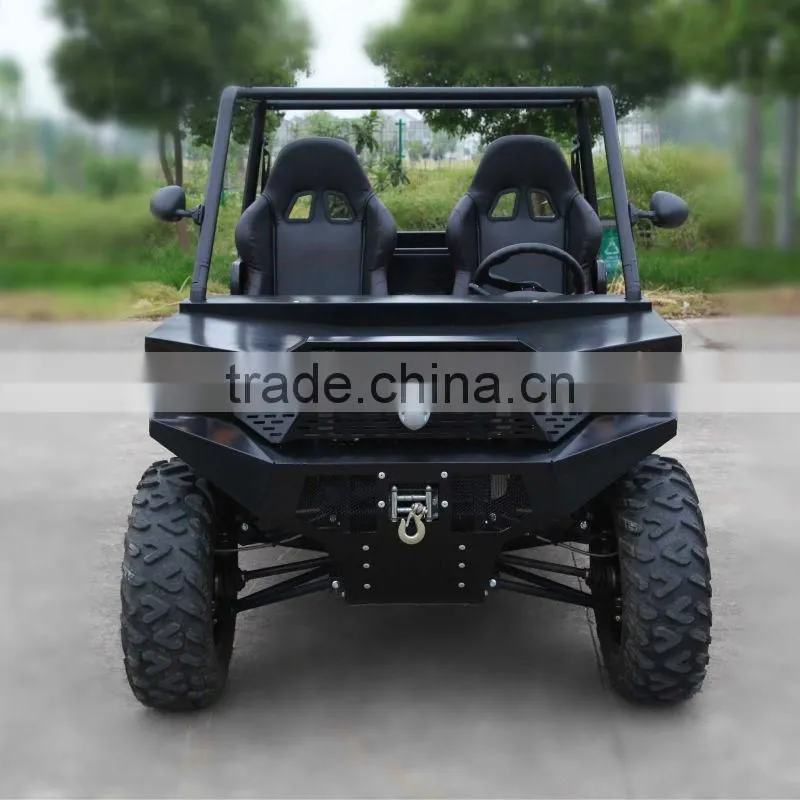

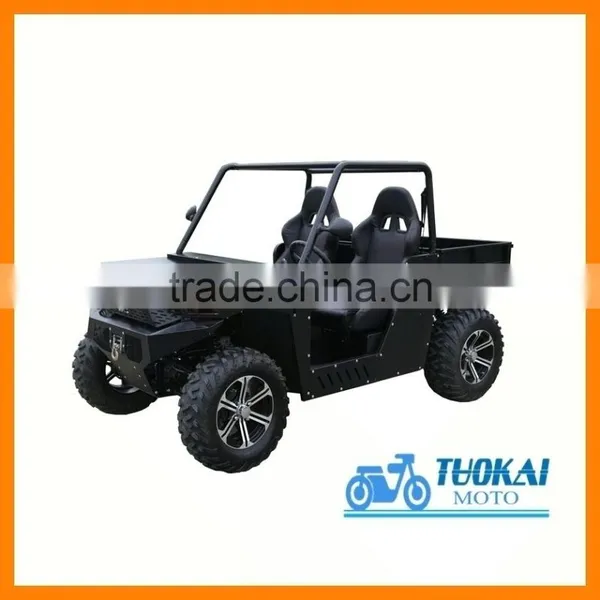

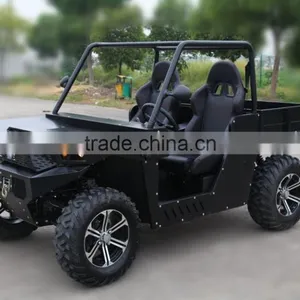

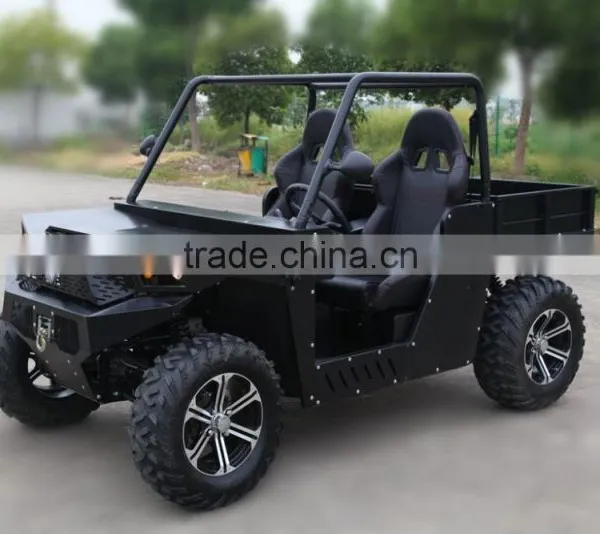

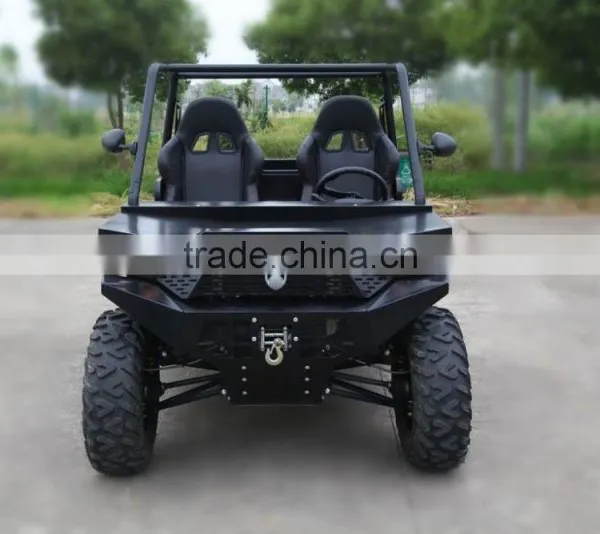

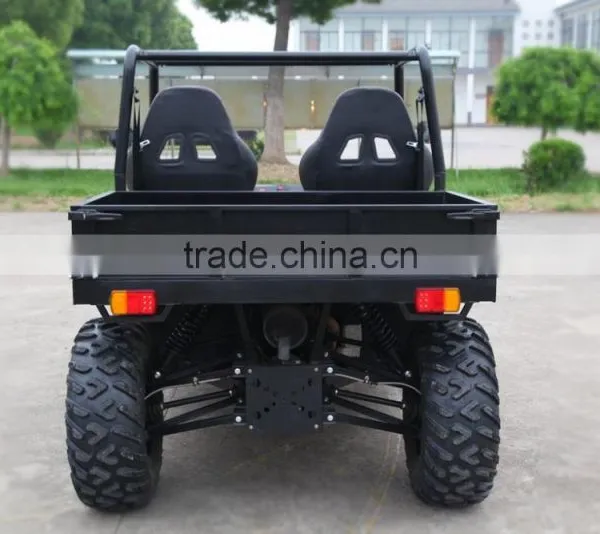

epa 800cc Farm ATV/800cc Farm Vehicle/800cc UTV (TKU800-T)

ENGINE TYPE

2V91MW, DOUBLE –CYLINDER, 4-STROKE, SOHC, WATER-COOLED

DISPLACEMENT

800CC

VALVE CONFIGURATIONS

8-valve

COMPRESSION RATIO

10.3:1

MAX. TORQUE N.m

73N.m/5000 RPM

MAX. POWER N.m

44kw/6000 RPM

IGNITION TYPE

IDI (Inductive Discharge Ignition )

SPARK PLUG

NGK  DCPR8E

GEAR OIL

400ml    XP-S  GL-5 GEAR OIL

TRANSMISSION TYPE

L/H/N/R

PRODUCT DIMENSIONS

L2860 mm,W1480mm,H1720mm

CARGO BOX DIMENSIONS

L780 mm,W1270mm,H230mm

WHEEL SPAN

1180 mm

WHEEL BASE

2030mm

FRONT TIRE

26*9-14

REAR TIRE

26*11-14

GROUND CLEARANCE

300mm

MINIMUM TURNING RADIUS(MM)

4600MM

MAX. SPEED

95km/h

STEERING SYSTEM

ELECTRIC POWER STEERING

FRONT SUSPENSION

DOUBLE ARM INDEPENDENT SUSPENSION

REAR SUSPENSION

DOUBLE ARM INDEPENDENT SUSPENSION

BRAKE SYSTEM

DUAL HYDRAULIC DISC

FUEL CAPACITY

26L

CURB WEIGHT

620kg

CROSS-COUNTRY POWER

APPROACH ANGLE 80⁰  REMOVED ANGLE 75⁰     PASSING ANGLE 35⁰

QUANTITY:

40HQ    12PCS

COLOR:

RED YELLOW WHITE BLUE GREEN BLACK       (CUSTOM MADE)
