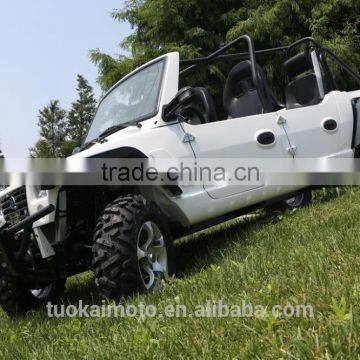

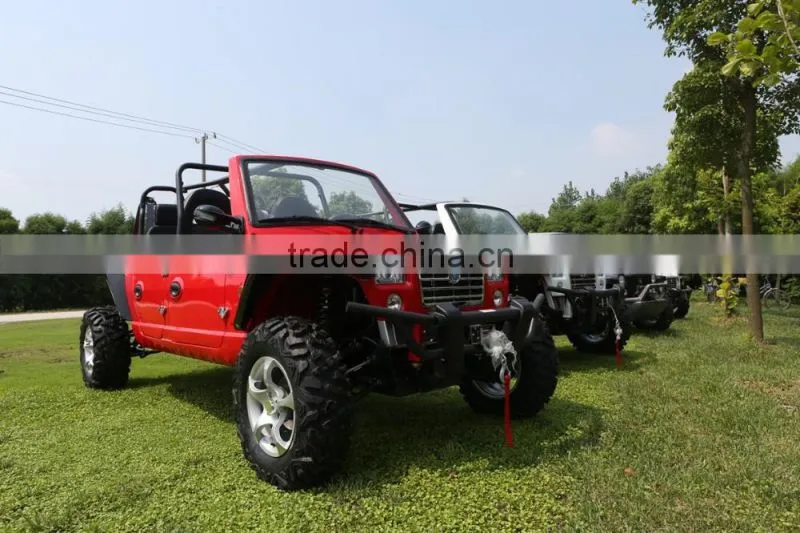

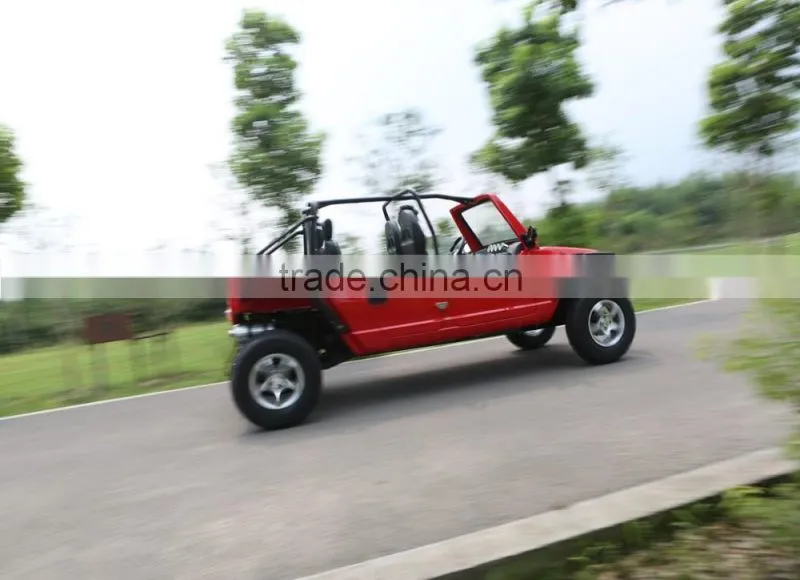

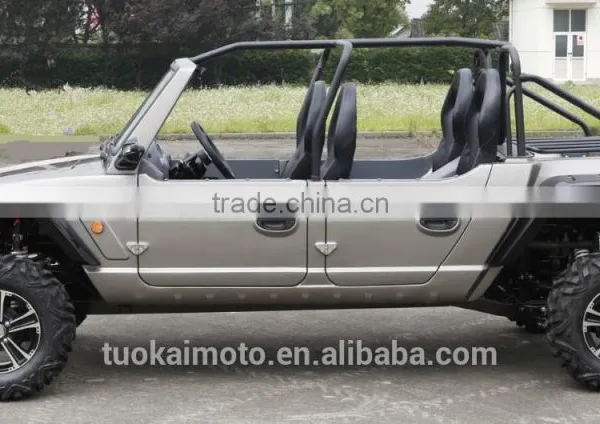

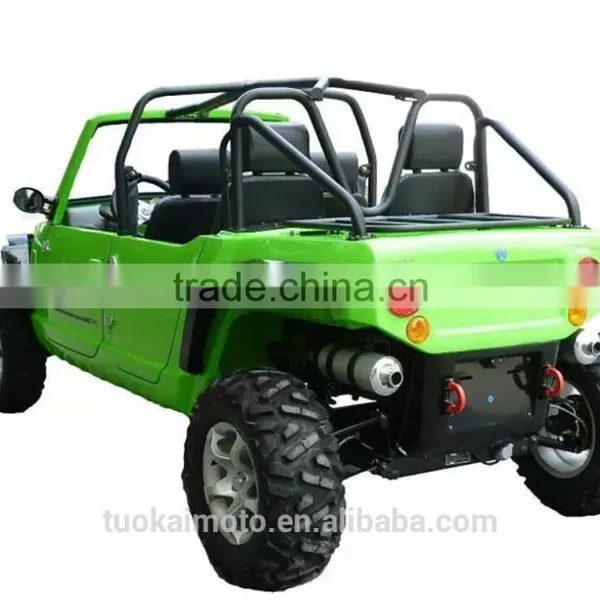

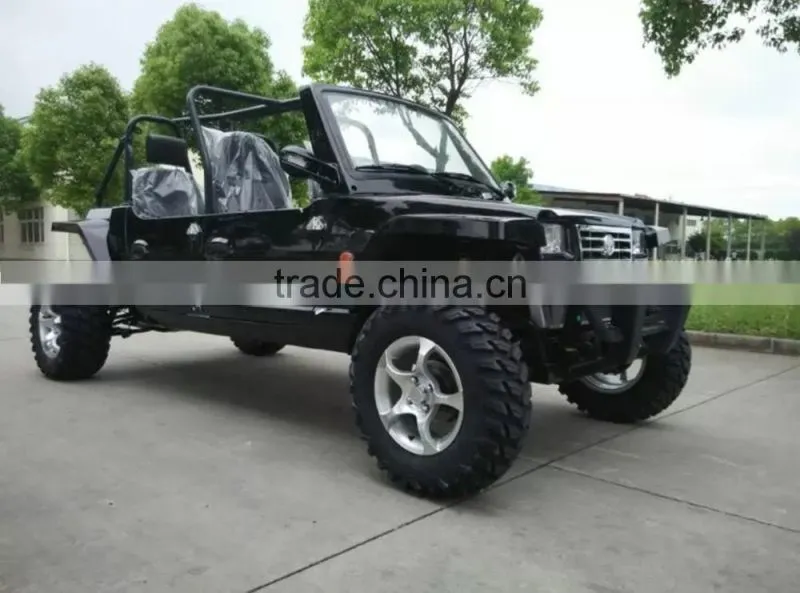

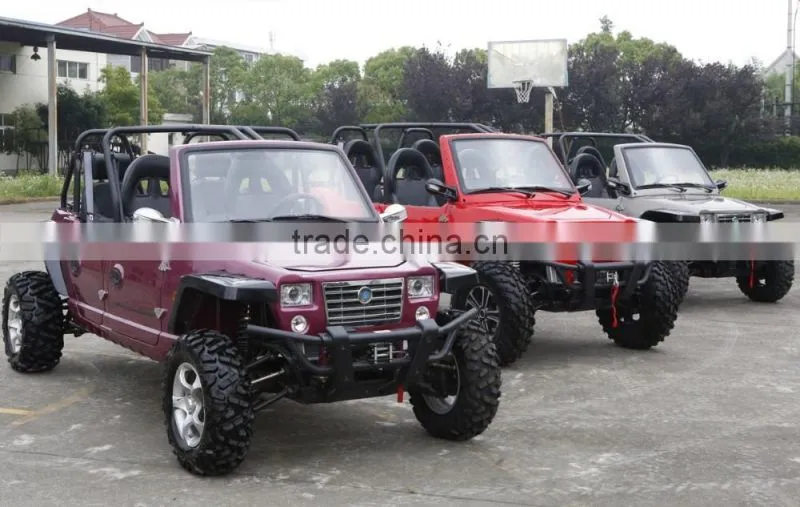

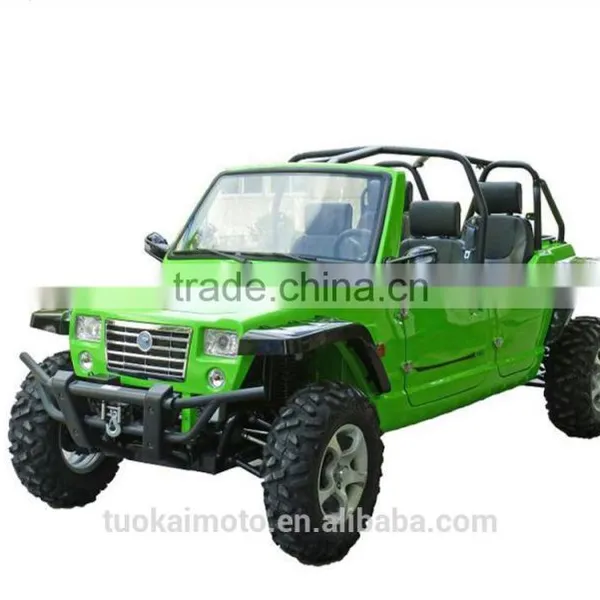

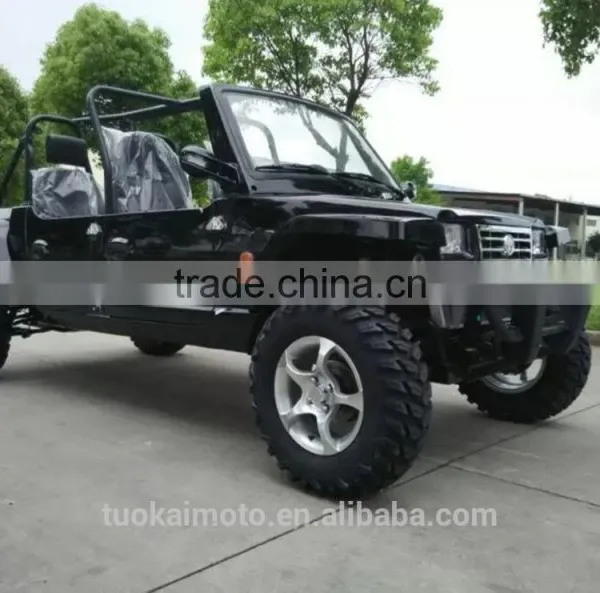

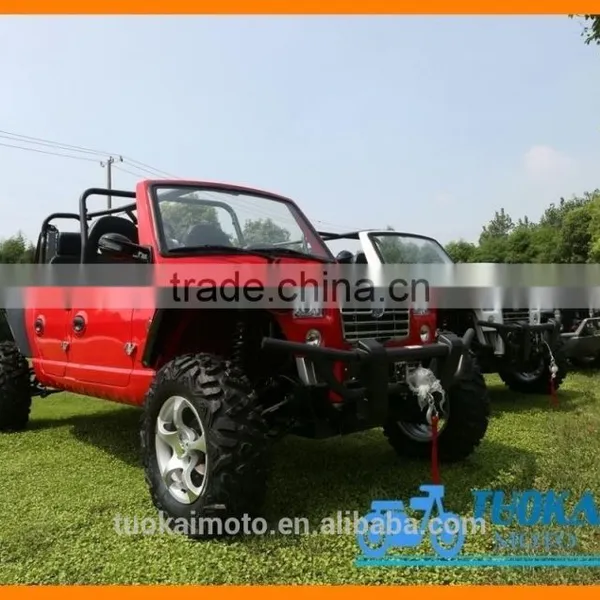

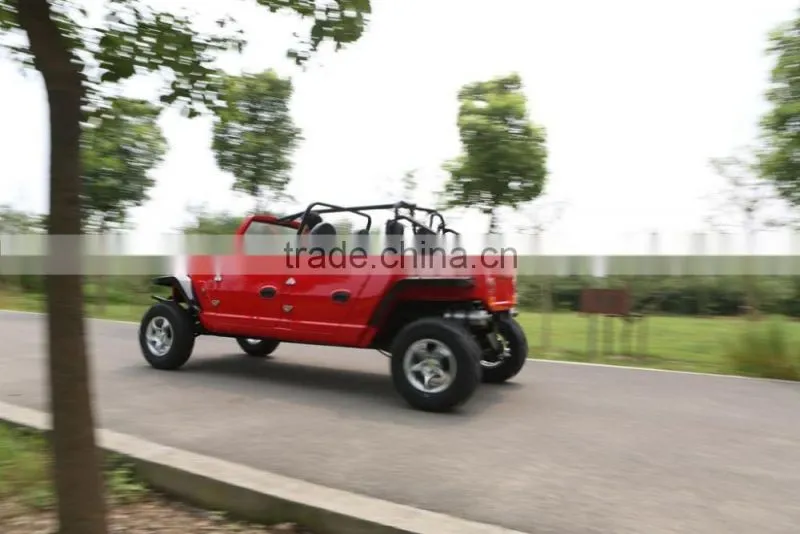

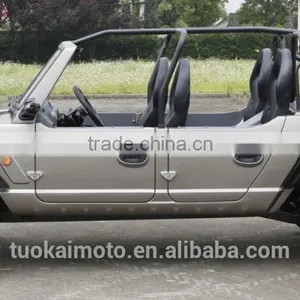

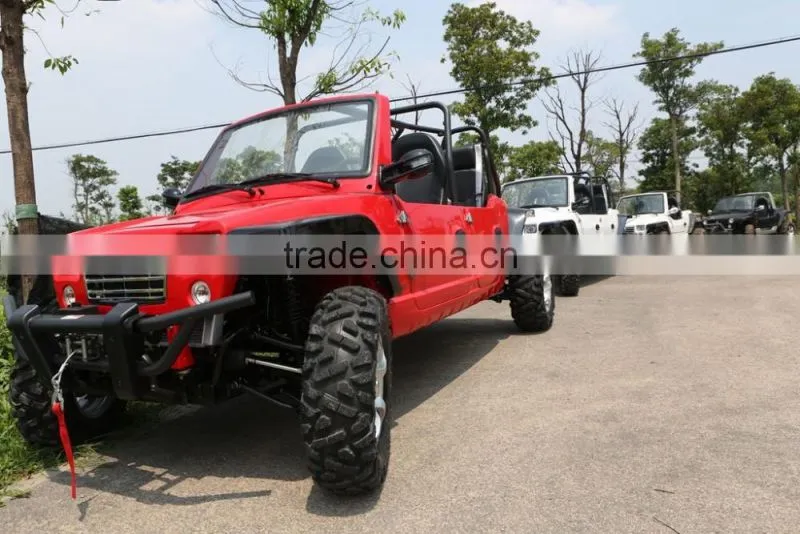

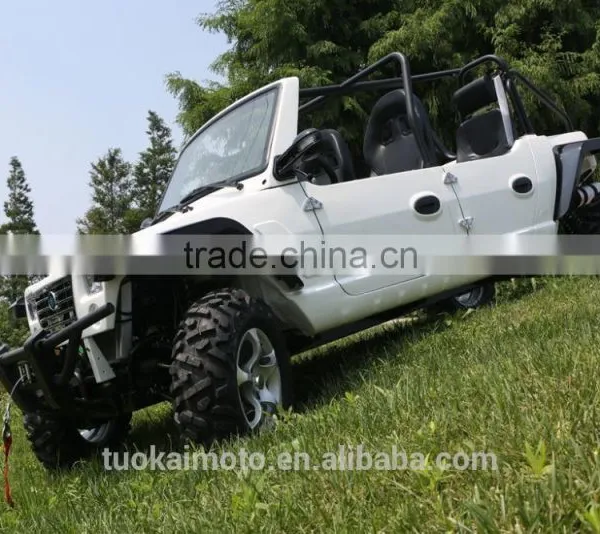

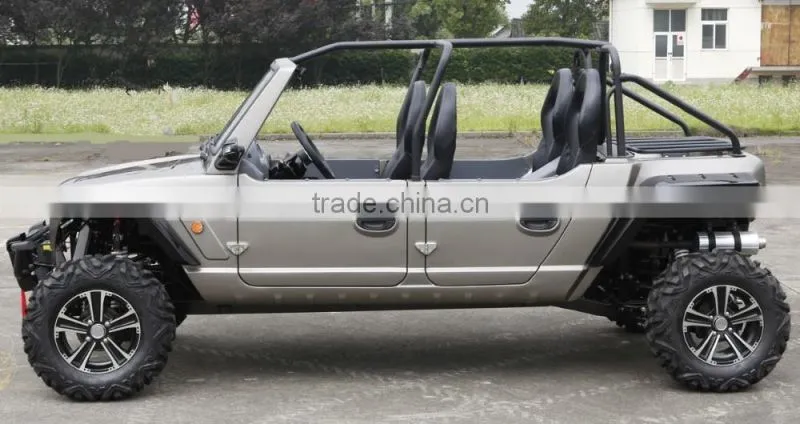

1100cc EPA approved EFI chery engine 4x4 4seats UTV for sale

Name: 1100cc EPA approved EFI chery engine 4x4 4seats UTV for sale
Brand: TUOKAI
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	TUOKAI	Model Number:	TKG1100-Y4	Type:	Pedal Go Karts
Certification:	Other, EPA	Engine:	CHERY ENGINE	Drive Mode:	Shaft Drive Transission
Wheel Size:	F:278-14 R:2710-14	Oil Tank Capacity:	23L	Maximum Speed:	100km/h
Displacement:	1083cc	Brake Type:	Hydraulic Disc Brake	Engine Capacity:	801-1100cc

Product Description

EPA approved for USA marekt (MOQ 1x40HQ)

1100cc 4seats jeep

1100cc 4seats UTV

1100cc 4seats go kart

1100cc 4seats buggy

available make 2WD or 4WD drive state

EFI manual gears shaft transmission 1100cc jeep UTV

engine brand: chery

spec:

Type : 1100 CC Chery Brand, L4,16 valves, Water-cooled, Simens VDO EFI ignition

Engine capacity/displacement : 1083cc

Bore × Stroke : 72mmX66.5mm

Compression ratio : 9.5:1

Max out put power : 50kw/6000rpm

Max Torque : 90Nm/3500--4000N.m/r/min

Ignition : Electronic multipoint injection

Fuel type : 93#(unleaded)

Lubricate oil : SAE 10W/30 SF API

Transmission: 5-MT with reverse

Maximum load : Four seats/400Kgs

Fuel tank : 23L

Starting : electric, <10s

Climbing capacity: 25º -30º

Battery : 12V36Ah

Head Light : 12V 35W

Tail Light : 12V 21W/5W

Brake Track : 7m@40km/h

Top speed : 100KM/h (or limited as customers require)

Front, Rear brake : Hydraulic 2 discs, right foot control

Front tire: AT27X9-14 off road tyre

Rear tire : AT27X11-14 off road tyre

wheel type: Alloy wheels

Front Suspension : Independent Dual A-Arm

Rear Suspension : Independent Dual A-Arm

Restraint System : Dual 4-point Harness

Final Drive : Shaft Drive

TIRE PRESSURE

Front : 250KPa

Rear: 250KPa

DIMENSIONS

Overall Length : 3750mm

Overall Width : 1650mm

Overall Height : 1570 mm

Wheel base : 2910mm

Front Track : 1310mm

Rear Track : 1370mm

Ground Clearance : 260mm

Packing:

Carton dimensions: 3750x1710x1640mm

N.W.: 840kgs

G.W.: 1050kgs

Conveyance:

Qty/40' HQ: 5pcs

Qty/20' GP: 2pcs
